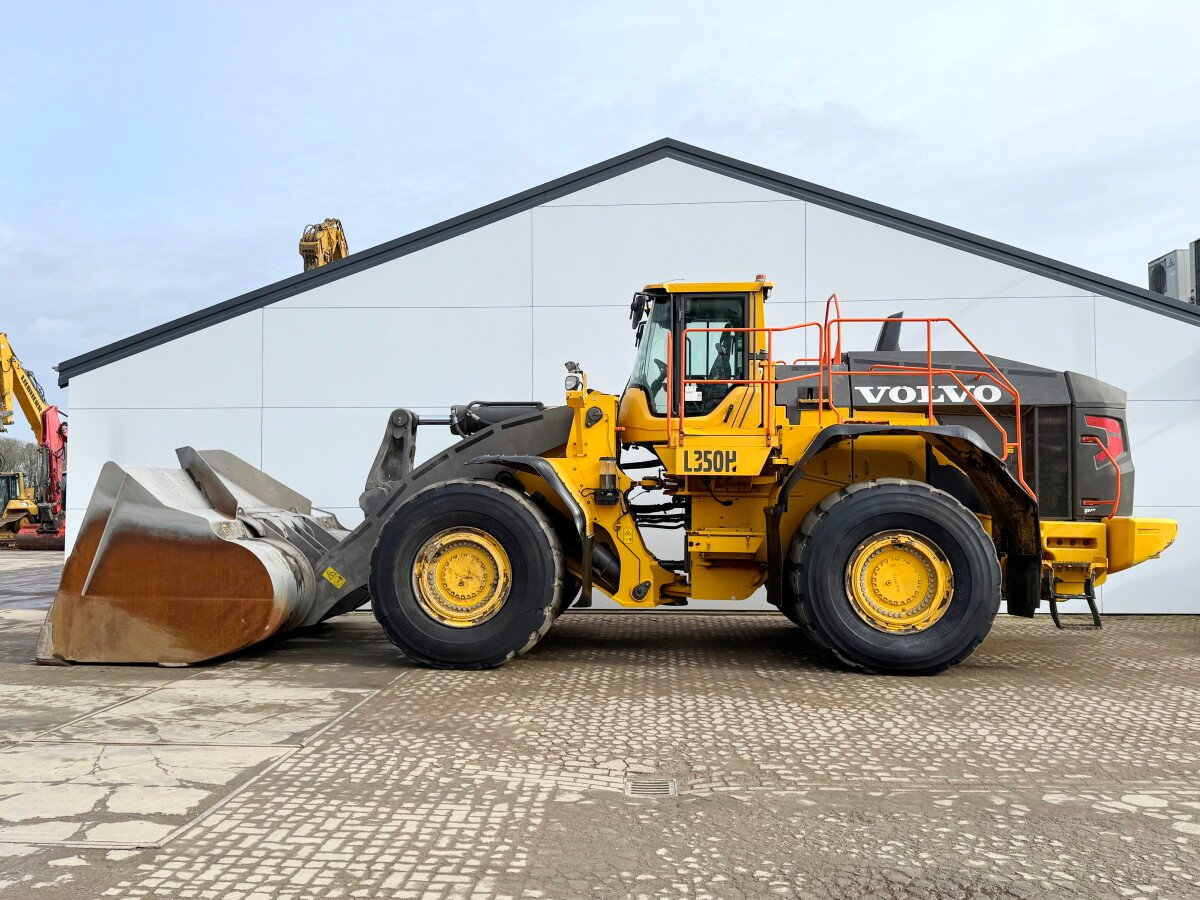

Volvo L350H Wheel Loader

Volvo L350H Wheel Loader

Available through Ekin Traktors

The Volvo L350H is the largest and most powerful wheel loader in Volvo’s lineup, purpose-built for the most demanding heavy-duty applications. Whether working in large-scale quarrying, mining, bulk handling, or heavy industrial loading, the L350H delivers exceptional strength, fuel efficiency, and operator comfort.

With an impressive combination of high breakout force, outstanding tipping loads, and state-of-the-art Volvo engineering, the L350H is a class-leading machine designed for maximum uptime and long-term profitability.

---

Key Specifications

• Power Source: Diesel

• Operating Weight: Approx. 50,000 – 56,000 Kg

• Bucket Capacity: 6.2 – 12.7 m³

• Static Tipping Load (Straight): Approx. 34,780 Kg

• Max Travel Speed: Up to 40 km/h

• Transmission: Volvo HTE400 4-speed automatic powershift

---

Engine & Powertrain

• Engine: Volvo D16J, 6-cylinder turbocharged diesel (EU Stage V compliant)

• Rated Output: 394 kW (535 HP)

• Max Torque: Approx. 2,500 Nm

• Cooling System: Variable-speed, hydraulically driven cooling fan with auto-reverse

• Transmission: Volvo HTE400 powershift with torque converter and lock-up

• Drive Axles: Fully floating planetary axles with optional 100% differential locks

With advanced powertrain technology and massive torque delivery, the L350H delivers smooth, consistent performance under the heaviest loads.

---

Loading System

• Linkage Type: Volvo Z-bar linkage

• Hinge Pin Height: Approx. 4,800 mm

• Dump Clearance at Max Lift: Approx. 3,600 mm

• Breakout Force: Over 400 kN

• Attachments: Rock buckets, rehandling, high-dump, coal, log grapple, forks, and Volvo quick coupler

The heavy-duty Z-bar linkage provides incredible breakout force for rock, ore, or aggregate applications, while retaining lifting stability for large-capacity buckets.

---

Dimensions & Weight

• Overall Length (with Bucket): Approx. 11,200 mm

• Width (Over Tyres): Approx. 3,900 mm

• Cab Height: Approx. 4,200 mm

• Wheelbase: Approx. 4,600 mm

• Ground Clearance: Approx. 500 mm

• Operating Weight: Up to 56,000 Kg (depending on configuration)

Despite its size, the L350H maintains excellent stability, visibility, and maneuverability for such a large machine.

---

Steering & Braking

• Steering Type: Articulated with ±40° articulation

• Rear Axle Oscillation: ±13°

• Braking System: Fully enclosed, wet-disc brakes (all wheels)

• Parking Brake: Spring-applied, hydraulically released

• Steering System: Load-sensing hydrostatic

Engineered for operator safety and confidence, the L350H’s responsive steering and braking systems perform reliably in all ground conditions.

---

Tyres

• Standard Tyres: 35/65 R33

• Optional Tyres: L4 or L5 heavy-duty options

• Rims: Heavy-duty steel

The L350H can be fitted with a wide range of tyre options to match the application — from rocky quarry floors to abrasive industrial yards.

---

Operator Cabin & Controls

• Cab: ROPS/FOPS-certified Volvo Care Cab – pressurized, insulated, and spacious

• Seat: Heated, air-suspension, multi-adjustable operator seat

• Visibility: Panoramic view, rearview camera, and large glass panels

• Controls: Electro-hydraulic joystick or lever configuration

• Display: Volvo Co-Pilot with Load Assist, payload tracking, and diagnostics

• HVAC: Automatic climate control with dual filtration

Designed for full-shift comfort and performance, the L350H cab minimizes fatigue and maximizes productivity, even in extreme conditions.

---

Service Capacities

• Fuel Tank: Approx. 550 Ltr

• Hydraulic System: Approx. 300 Ltr

• Engine Oil: Approx. 45 Ltr

• Cooling System: Approx. 70 Ltr

• Axle Oil (Front/Rear): Approx. 85 Ltr each

• Service Features: Ground-level access, grouped service points, swing-out cooling modules, and CareTrack™ telematics

Volvo’s smart service design helps reduce maintenance time, extend service intervals, and ensure higher uptime in high-production environments.

---

Use Cases

• Large-scale quarry and aggregate operations

• Open-pit and surface mining

• Heavy industrial bulk loading

• Port and shipping terminal operations

• High-volume rehandling yards

• Coal, iron, and raw mineral handling

---

Final Thoughts

The Volvo L350H Wheel Loader is a top-tier machine designed to dominate the toughest material handling applications. With its superior lifting power, advanced operator technology, and rugged construction, the L350H provides exceptional productivity, fuel efficiency, and comfort. Now available through Ekin Traktors, the L350H is the definitive choice for operations that require strength on a massive scale.
