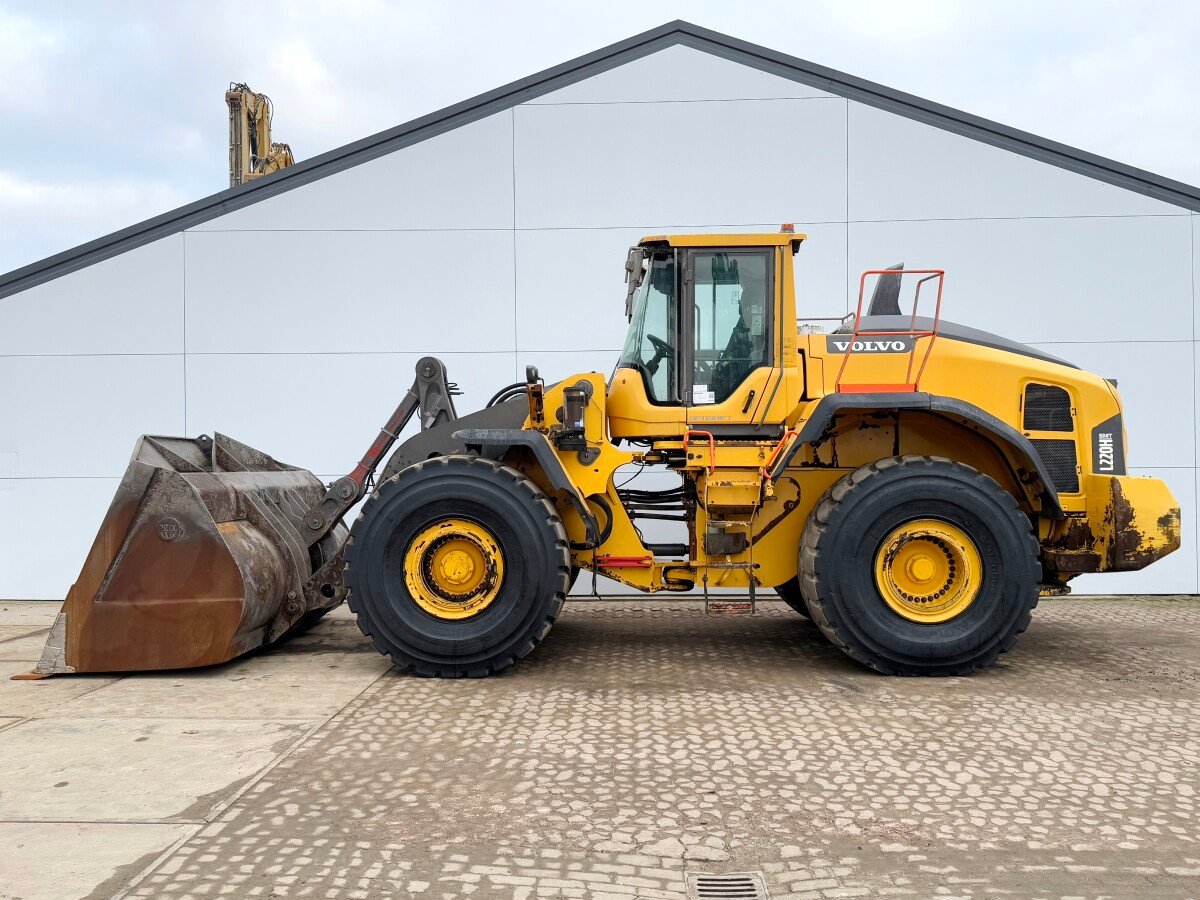

Volvo L220H Wheel Loader

Volvo L220H Wheel Loader

Available through Ekin Traktors

The Volvo L220H Wheel Loader is a high-capacity workhorse engineered for heavy-duty material handling across quarries, aggregate plants, mining, and bulk handling sites. Combining robust lifting power with fuel-saving technology and Volvo’s legendary operator comfort, the L220H is a proven performer in demanding environments.

Equipped with a powerful Volvo D13J Stage V engine, smart electronics, and responsive hydraulics, the L220H maximizes productivity while reducing fuel use, emissions, and operator fatigue.

---

Key Specifications

• Power Source: Diesel

• Operating Weight: Approx. 31,500 – 34,000 Kg

• Bucket Capacity: 4.5 – 16.0 m³

• Static Tipping Load (Straight): Approx. 23,700 Kg

• Max Travel Speed: Up to 40 km/h

• Transmission: Volvo HTE400 4-speed automatic with lock-up

---

Engine & Powertrain

• Engine: Volvo D13J, 6-cylinder turbocharged diesel (EU Stage V compliant)

• Rated Output: 274 kW (373 HP)

• Max Torque: Approx. 2,000 Nm

• Cooling System: Variable-speed hydraulic fan with auto-reverse

• Transmission: Volvo Powershift with torque converter and lock-up for fuel efficiency

• Axles: Heavy-duty planetary axles with optional 100% differential locks

With intelligent load sensing and optimized gear shifting, the L220H delivers strong, consistent power and superior traction control under full load.

---

Loading System

• Linkage Type: Volvo Torque Parallel (TP) linkage

• Hinge Pin Height: Approx. 4,600 mm

• Dump Clearance at Max Lift: Approx. 3,300 mm

• Breakout Force: Approx. 250 kN

• Attachments: General purpose, rehandling, high-dump, rock, coal, grapple, forks (Volvo quick coupler compatible)

The unique TP linkage combines high breakout force with parallel lift geometry — ideal for both heavy loading and precision material handling.

---

Dimensions & Weight

• Overall Length (with Bucket): Approx. 9,800 mm

• Width (Over Tyres): Approx. 3,100 mm

• Cab Height: Approx. 3,700 mm

• Wheelbase: Approx. 3,500 mm

• Ground Clearance: Approx. 460 mm

• Operating Weight: Approx. 32,000 Kg

The L220H’s robust frame, long wheelbase, and high ground clearance offer exceptional stability and handling in rugged conditions.

---

Steering & Braking

• Steering Type: Articulated (±40°) with hydrostatic load-sensing steering

• Rear Axle Oscillation: ±13°

• Braking System: Fully enclosed wet-disc brakes (all wheels)

• Parking Brake: Spring-applied, hydraulic release

Smooth steering and powerful braking ensure responsive handling, even on uneven terrain or during high-speed maneuvers.

---

Tyres

• Standard Tyres: 29.5 R25

• Optional Tyres: L3, L4, or application-specific options

• Rims: Reinforced steel

Tyres can be configured for durability and performance across rocky, muddy, paved, or abrasive surfaces.

---

Operator Cabin & Controls

• Cab: ROPS/FOPS-certified Volvo Care Cab – pressurized, insulated, and ergonomically designed

• Seat: Air-suspension, heated, fully adjustable

• Visibility: Panoramic glass with rearview camera and slim pillars

• Controls: Electro-hydraulic joystick or multi-function lever

• Display: High-resolution touchscreen with Load Assist, real-time diagnostics, and fuel tracking

• HVAC: Automatic climate control with dual-level filtration

Volvo’s premium cab design offers reduced noise, all-day operator comfort, and smart control systems that boost productivity.

---

Service Capacities

• Fuel Tank: Approx. 400 Ltr

• Hydraulic System: Approx. 275 Ltr

• Engine Oil: Approx. 40 Ltr

• Cooling System: Approx. 60 Ltr

• Axle Oil (Front/Rear): Approx. 65 Ltr each

• Service Features: Ground-level service access, grouped maintenance points, swing-out cooling module, and CareTrack™ telematics

Designed for minimal downtime, the L220H allows quick service access and remote machine health tracking to reduce unexpected maintenance.

---

Use Cases

• Quarry and aggregates

• Mining and raw material extraction

• Port logistics and bulk rehandling

• Steel and industrial yards

• Construction supply chain operations

---

Final Thoughts

The Volvo L220H Wheel Loader stands at the intersection of power, efficiency, and intelligent design. With its high lifting capacity, advanced operator environment, and rugged construction, the L220H is engineered to meet the needs of heavy material handling — day after day. Now available through Ekin Traktors, it’s the perfect solution for operations that demand reliable performance and long-term value.
