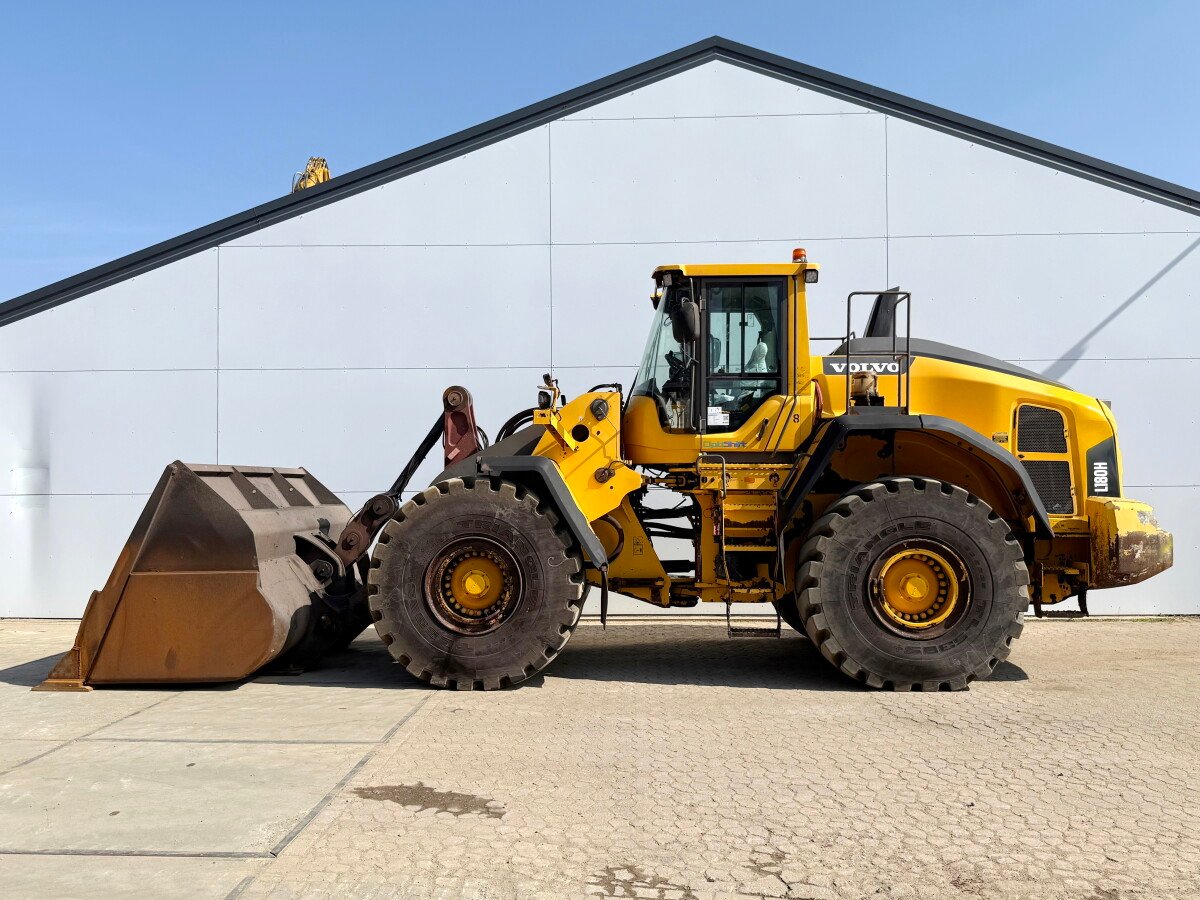

Volvo L180H Wheel Loader

Volvo L180H Wheel Loader

Available through Ekin Traktors

The Volvo L180H Wheel Loader is a heavy-duty, high-capacity machine engineered for demanding applications such as quarrying, mining, aggregates, and bulk material handling. Combining premium Swedish engineering with state-of-the-art technology, the L180H delivers high breakout force, impressive lifting capacity, and outstanding fuel efficiency — making it a top choice for high-production environments.

Powered by a powerful Volvo D13 engine and featuring Volvo’s intelligent load-sensing hydraulics, ergonomic controls, and durable components, the L180H ensures superior uptime, operator comfort, and cost-effective performance in the field.

---

Key Specifications

• Power Source: Diesel

• Operating Weight: Approx. 28,000 – 30,000 Kg

• Bucket Capacity: 5.2 – 10.2 m³ (application-specific)

• Static Tipping Load (Straight): Approx. 20,600 Kg

• Travel Speed (Max): Up to 40 km/h

• Drive System: Volvo Powershift with lock-up torque converter

---

Engine & Powertrain

• Engine: Volvo D13J, 6-cylinder turbocharged diesel (Stage V compliant)

• Rated Output: Approx. 274 kW (373 HP)

• Max Torque: Approx. 2,000 Nm

• Cooling System: Hydraulically driven, electronically controlled cooling fan with reversible function

• Transmission: Volvo HTE 400 4-speed Powershift with optional lock-up

• Axles: Fully floating planetary axles with optional differential locks

Volvo’s D13J engine delivers powerful performance with low fuel consumption, supported by automatic engine shutdown and eco pedal functionality for maximum efficiency.

---

Loading System

• Linkage Type: Volvo Torque Parallel (TP) linkage

• Bucket Width: Approx. 3,200 – 3,500 mm

• Lift Height at Hinge Pin: Approx. 4,500 mm

• Dump Clearance at Max Lift: Approx. 3,200 mm

• Breakout Force: Approx. 240 kN

• Attachments: General purpose, rehandling, rock, high-dump, forks, grapple, and Volvo quick coupler system

The TP linkage combines high breakout force with excellent parallel lift — ideal for handling both heavy buckets and palletized loads with precision.

---

Dimensions & Weight

• Overall Length (with GP Bucket): Approx. 9,650 mm

• Width (Over Tyres): Approx. 3,000 mm

• Cab Height: Approx. 3,700 mm

• Ground Clearance: Approx. 450 mm

• Wheelbase: Approx. 3,500 mm

• Operating Weight: Approx. 28,000 – 30,000 Kg

The L180H’s robust frame and balanced weight distribution provide exceptional stability, load retention, and operator control across various terrains.

---

Steering & Braking

• Steering Type: Articulated steering with ±40° articulation

• Rear Axle Oscillation: ±13°

• Brakes: Dual circuit hydraulic wet-disc brakes on all wheels

• Parking Brake: Spring-applied, hydraulically released

• Steering System: Load-sensing hydrostatic steering for precision control

Steering and braking systems are designed to enhance safety and agility, even in tight or high-volume operating zones.

---

Tyres

• Standard Tyres: 26.5 R25

• Optional Tyres: L3, L4, L5, or wide-base tyres for specific ground conditions

• Wheels: Heavy-duty steel rims

Tyre configurations are available to suit a wide range of job sites, from paved yards to rocky or abrasive environments.

---

Operator Cabin & Controls

• Cab: ROPS/FOPS-certified, pressurized Volvo Care Cab

• Seat: Air-suspension with heating, multiple adjustments, and ergonomic armrests

• Visibility: Panoramic windows, rearview camera, and slim cab pillars

• Controls: Electro-hydraulic joysticks or multi-function lever

• Display: Color LCD interface with real-time diagnostics and load data

• HVAC: Fully automatic climate control with high-efficiency air filtration

Designed for long shifts, the Volvo cab delivers superior comfort, reduced noise, and intuitive controls that reduce fatigue and maximize output.

---

Service Capacities

• Fuel Tank: Approx. 400 Ltr

• Hydraulic System: Approx. 250 Ltr

• Engine Oil: Approx. 37 Ltr

• Cooling System: Approx. 60 Ltr

• Axle Oil (Front/Rear): Approx. 65 Ltr each

• Service Access: Ground-level access, grouped service points, swing-out cooling module, and CareTrack™ telematics

Built for uptime, the L180H supports extended service intervals and remote monitoring to reduce unplanned downtime and lower lifetime operating costs.

---

Use Cases

• Quarry and mining operations

• Aggregate and rehandling yards

• Heavy-duty construction and infrastructure

• Port and industrial bulk handling

• Timber and forestry applications

---

Final Thoughts

The Volvo L180H Wheel Loader offers the power, precision, and fuel economy required for large-scale material handling. With Volvo’s signature focus on operator comfort, machine intelligence, and robust engineering, the L180H is a true workhorse for high-demand operations. Now available through Ekin Traktors, it’s a proven performer for businesses that value efficiency, uptime, and total lifecycle value.
