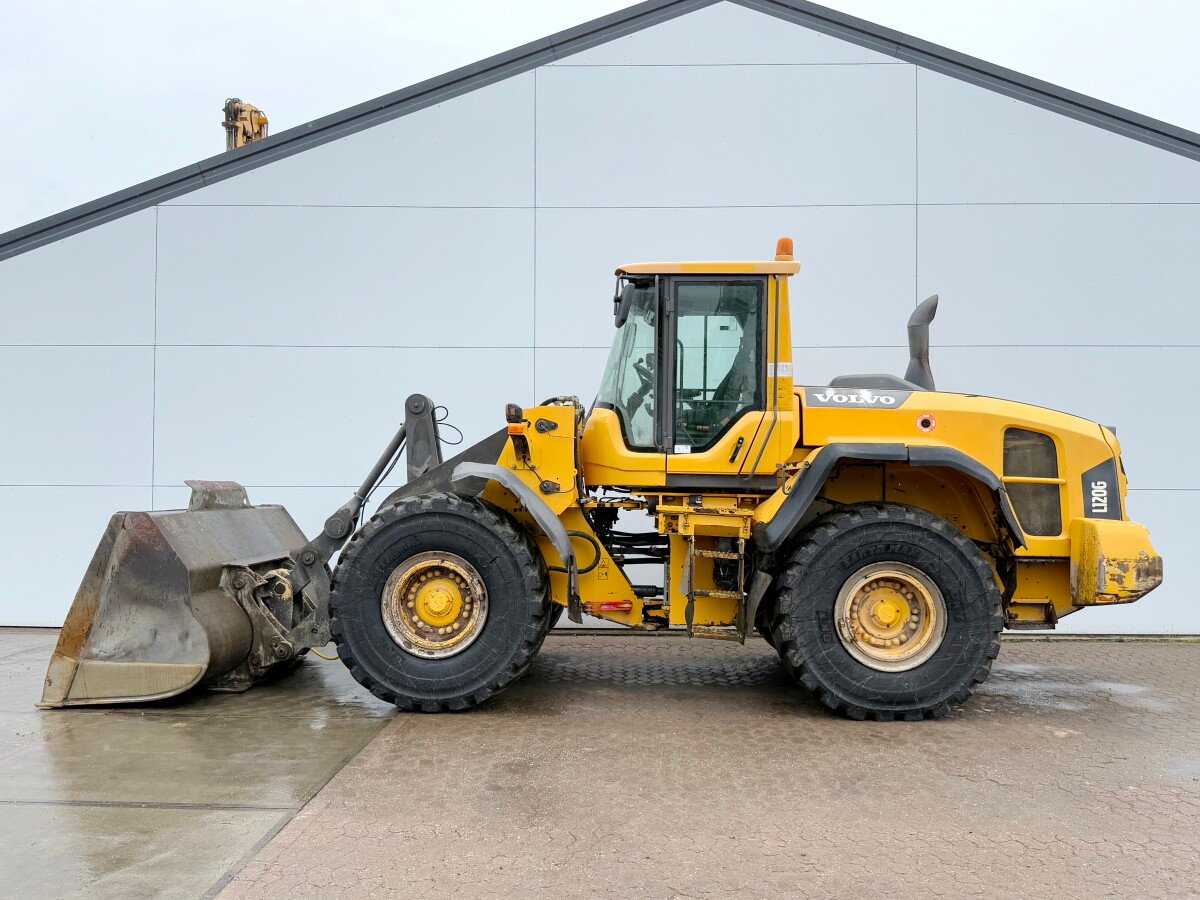

Volvo L120G Wheel Loader

Volvo L120G Wheel Loader

Available through Ekin Traktors

The Volvo L120G Wheel Loader is engineered for fuel efficiency, intelligent control, and powerful material handling in mid-to-heavy-duty applications. Combining Volvo’s Tier 4i-compliant powertrain with precision hydraulics and operator-focused ergonomics, the L120G delivers reliable performance in quarries, construction sites, waste handling, and industrial yards.

Its well-balanced frame, advanced cooling system, and premium load-sensing hydraulics ensure high productivity with low environmental impact — making it a dependable addition to any fleet managed by Ekin Traktors.

---

Key Specifications

• Net Power: 270 HP (201 kW)

• Operating Weight: 20,600 Kg

• Bucket Capacity: 3.0 – 9.5 Cum

• Breakout Force: 18,000 Kg

• Max Travel Speed: 40 km/h

• Fuel Tank Capacity: 300 Ltr

---

Engine

• Model: Volvo D8H Tier 4i

• Emission Standard: Tier 4 Interim / EU Stage IIIB

• Net Power Output: 270 HP @ 1800 RPM

• Maximum Torque: 1316 Nm @ 1400 RPM

• Cooling System: Variable-speed fan with cooling-on-demand

The Volvo D8H engine offers high torque at low RPMs for efficient performance under load, while lowering fuel consumption and emissions. The cooling system improves component life and supports consistent operation in high-temperature environments.

---

Loader Dimensions & Performance

• Bucket Capacity Range: 3.0 – 4.5 Cum (Standard GP)

• Hinge Pin Height: 4000 mm

• Dump Clearance at Max Height: 3000 mm

• Breakout Force: 18,000 Kg

• Total Cycle Time: 10.5 seconds

Equipped with Volvo’s Torque Parallel (TP) linkage, the L120G provides excellent lifting power and parallel movement — ideal for both pallet and bucket work.

---

Overall Dimensions & Weight

• Operating Weight: 20,600 Kg

• Length (Bucket on Ground): 8300 mm

• Width Over Tyres: 2750 mm

• Height to Top of Cab: 3350 mm

• Ground Clearance: 450 mm

• Wheelbase: 3300 mm

The machine’s balanced design and wide stance allow for smooth operation, even when moving heavy loads across uneven terrain.

---

Hydraulic System

• System Type: Load-sensing, variable flow

• Max Flow: 276 LPM

• Hydraulic Pressure: 27,500 kPa

• Hydraulic Tank Capacity: 110 Ltr

The intelligent hydraulic system adapts flow to demand, reducing energy waste and enabling simultaneous lift and tilt operations with maximum efficiency.

---

Service Capacities

• Fuel Tank: 300 Ltr

• Engine Oil: 28 Ltr

• Hydraulic Oil System: 220 Ltr

• Cooling System: 50 Ltr

• Transmission Oil: 50 Ltr

Volvo’s grouped service points and easy-access panels simplify daily maintenance and reduce downtime, supporting extended operating hours in the field.

---

Axle & Steering

• Front Axle: Fixed

• Rear Axle: Oscillating ±13°

• Steering: Articulated, load-sensing hydrostatic

• Turning Radius (Outside of Tyres): 6250 mm

With hydrostatic steering and articulated frame geometry, the L120G offers tight turns and agile movement — perfect for confined site operations and material yard navigation.

---

Braking System

• Service Brakes: Hydraulic, wet disc brakes on all four wheels

• Parking Brake: Spring-applied, hydraulically released

• Features: Fully enclosed braking system for extended wear life and consistent performance in wet or dusty conditions

---

Tyres

• Standard Tyres: 23.5 R25 radial

• Optional Configurations: Rock, L3, or all-terrain depending on application

Premium radial tyres provide stability, traction, and load distribution — reducing wear and supporting long-term productivity.

---

Electrical System

• System Voltage: 24 V

• Alternator: 120 Amp

• Battery: Dual 12V heavy-duty

• Lighting: Front/rear work lights standard; beacon and camera options available

---

Use Cases

• Medium-to-heavy material loading

• Quarry and gravel yard work

• Waste and scrap handling

• Construction material transfer

• Industrial loading and utility work

---

Final Thoughts

The Volvo L120G Wheel Loader delivers a smart balance of power, comfort, and efficiency in a durable mid-size platform. It’s ideal for operators who need dependable load handling across a range of applications while maintaining low fuel costs and high uptime. Available now through Ekin Traktors, the L120G stands as a reliable, value-driven choice for both contractors and fleet managers.
