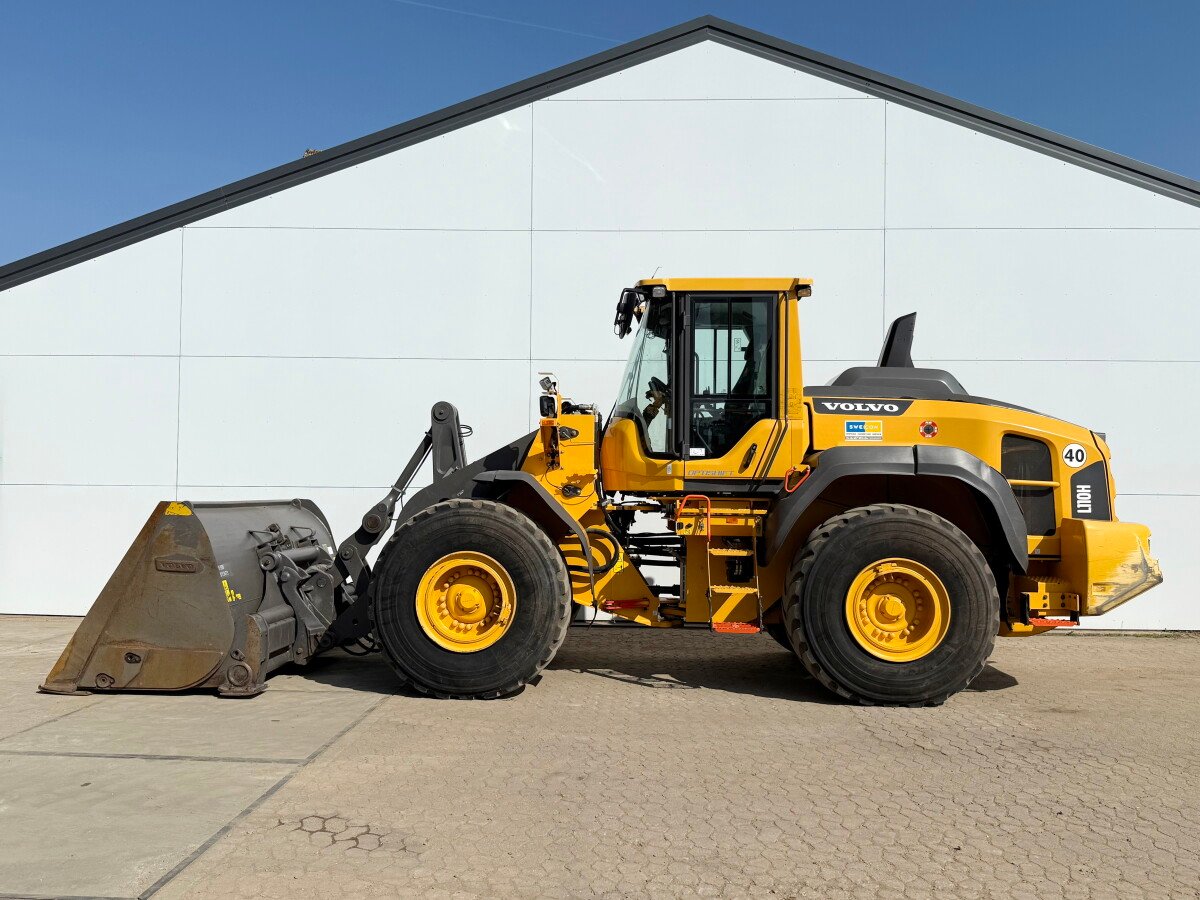

Volvo L110H – German Machine Wheel Loader

Volvo L110H Wheel Loader – German Machine

Available through Ekin Traktors

The Volvo L110H is a versatile, mid-size wheel loader engineered for long-lasting performance, fuel efficiency, and operator comfort. Manufactured in Germany to the highest Volvo CE standards, this machine is ideally suited for rehandling, road construction, agriculture, timber handling, and general loading tasks across demanding environments.

Built on the proven H-series platform, the L110H features a powerful Stage V Volvo engine, advanced load-sensing hydraulics, and a comfortable, high-visibility cab. With its fuel-efficient powertrain and durable components, the German-made L110H delivers consistent productivity with lower operating costs and extended uptime.

---

Key Specifications

• Power Source: Diesel

• Operating Weight: Approx. 18,000 – 20,000 Kg

• Bucket Capacity: 2.5 – 9.5 m³ (depending on application)

• Static Tipping Load (Straight): Approx. 14,500 Kg

• Travel Speed (Max): Up to 40 km/h

• Drive System: Volvo powershift transmission with torque converter

---

Engine & Powertrain

• Engine: Volvo D8J, 6-cylinder turbocharged diesel (EU Stage V compliant)

• Rated Output: Approx. 190 kW (258 HP)

• Max Torque: Approx. 1,300 Nm

• Transmission: Volvo HTE 204 4-speed powershift with lock-up function

• Cooling System: Variable-speed, hydraulically driven cooling fan

• Axles: Planetary hub reduction with optional 100% differential locks

Efficient and powerful, the Volvo D8J engine and intelligent transmission system deliver fast response, high torque at low RPMs, and reduced fuel burn — perfect for all-day operations.

---

Loading System

• Linkage Type: Volvo Torque Parallel (TP) linkage

• Lift Height at Hinge Pin: Approx. 4,300 mm

• Dump Clearance at Max Lift: Approx. 2,900 mm

• Breakout Force: Approx. 180 kN

• Attachments: General purpose, rehandling, forks, grapple, snow bucket, and Volvo quick coupler options

The TP linkage offers strong breakout force and excellent parallel lift, giving the L110H the flexibility to handle both heavy buckets and palletized loads with precision and control.

---

Dimensions & Weight

• Overall Length (with Bucket): Approx. 8,400 mm

• Width (Over Tyres): Approx. 2,750 mm

• Cab Height: Approx. 3,400 mm

• Wheelbase: Approx. 3,000 mm

• Ground Clearance: Approx. 450 mm

• Operating Weight: Approx. 18,500 Kg

Compact enough for tight work sites but powerful enough for larger yards and construction zones, the L110H offers excellent balance, visibility, and traction.

---

Steering & Braking

• Steering Type: Fully articulated with ±40° articulation

• Rear Axle Oscillation: ±13°

• Service Brakes: Wet-disc brakes, hydraulically operated

• Parking Brake: Spring-applied, hydraulic release

• Steering System: Load-sensing hydrostatic steering

Volvo’s advanced braking and steering systems help ensure safety and confidence on every job site — even in challenging conditions or with heavy loads.

---

Tyres

• Standard Tyres: 23.5 R25

• Optional Tyres: L2, L3, L4, and winter tread patterns

• Rims: Heavy-duty steel

Tyre options can be configured based on specific industry or ground conditions, such as gravel, mud, snow, or paved surfaces.

---

Operator Cabin & Controls

• Cab: ROPS/FOPS-certified Volvo Care Cab (pressurized and insulated)

• Seat: Air-suspension, heated, and fully adjustable with ergonomic design

• Visibility: Panoramic glass, rearview camera, and slim-profile cab frame

• Controls: Fingertip electro-hydraulic joysticks or multi-function lever

• Display: High-resolution color monitor with diagnostics, fuel tracking, and load assist functions

• HVAC: Fully automatic climate control with multi-level filtration

The German-built cab offers an ideal operator environment — quiet, spacious, and designed for reduced fatigue during long working shifts.

---

Service Capacities

• Fuel Tank: Approx. 270 Ltr

• Hydraulic System: Approx. 200 Ltr

• Engine Oil: Approx. 25 Ltr

• Cooling System: Approx. 45 Ltr

• Axle Oil (Front/Rear): Approx. 45 Ltr each

• Maintenance Features: Ground-level service points, swing-out cooling module, and CareTrack™ telematics for remote monitoring

Built for uptime, the L110H minimizes service downtime with smart diagnostics, easy access, and long-life fluids and filters.

---

Use Cases

• General construction

• Road building and infrastructure

• Agriculture and grain handling

• Timber yards and sawmills

• Municipal services and snow removal

• Rehandling and quarry operations

---

Final Thoughts

The Volvo L110H Wheel Loader (German Machine) is a strong performer that offers the perfect balance of power, precision, and comfort. Its efficient engine, durable components, and advanced operator features make it a valuable asset for medium- to heavy-duty applications. Now available through Ekin Traktors, the L110H is a trusted solution for businesses looking for reliable productivity and long-term value in a premium, German-built machine.
