Volvo G960 Grader

Volvo G960 Motor Grader

Available through Ekin Traktors

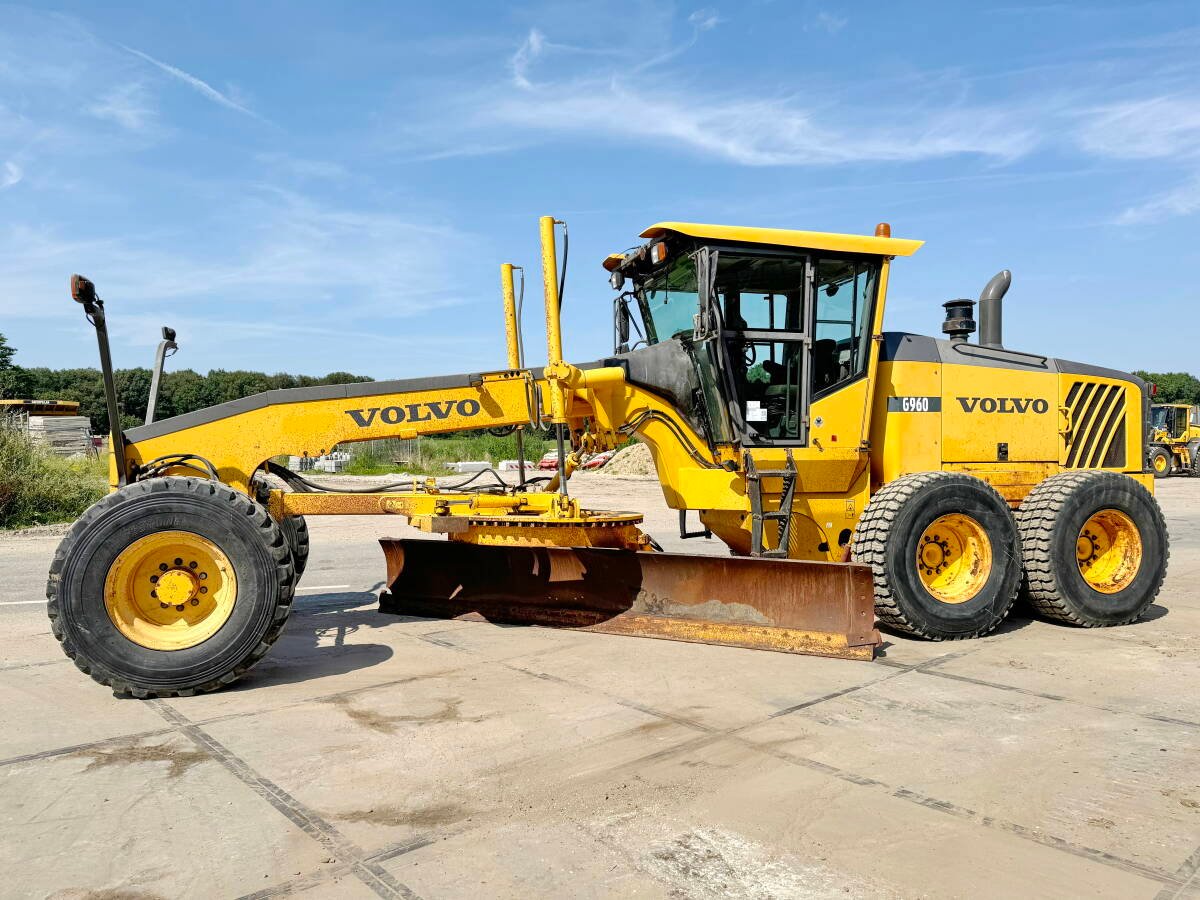

The Volvo G960 Motor Grader is a powerful, mid-size road grader built for precision surface finishing, rough grading, and heavy road maintenance. With its high-torque Volvo engine, advanced blade control system, and responsive hydraulics, the G960 is purpose-built for demanding tasks such as road construction, site leveling, snow removal, and mining haul road maintenance.

This model delivers excellent weight distribution, intuitive controls, and all-day operator comfort — making it a trusted choice for contractors and municipalities alike. Supported by Ekin Traktors, the Volvo G960 offers durability, performance, and lasting value in every pass.

---

Key Specifications

• Net Power: 205 HP (153 kW)

• Operating Weight: 16,875 Kg

• Moldboard Width: 3.66 m

• Maximum Blade Pull: 9,800 Kg

• Turning Radius (Outside Front Tyre): 7.3 m

• Top Travel Speed: 45.6 km/h

---

Engine

• Model: Volvo D7E EPA Tier 3 / EU Stage IIIA

• Net Power Output: 205 HP @ 2200 RPM

• Max Torque: 935 Nm @ 1400 RPM

• Cooling System: Direct-drive, variable-speed fan

• Fuel Tank Capacity: 341 Ltr

The Volvo D7E engine is engineered for high fuel efficiency and torque-heavy performance, enabling smooth grading even under heavy material loads or tough terrain.

---

Grading Performance

• Moldboard Width: 3.66 m

• Moldboard Height: 610 mm

• Blade Rotation: 360° (unlimited)

• Blade Reach (Left / Right): 2065 mm / 2065 mm

• Max Blade Pitch: 42° forward / 5° backward

• Circle Turn Time: 5.5 seconds

The G960’s blade geometry and responsive hydraulic system offer superior grading control, with smooth moldboard articulation and fast repositioning — ideal for fine-finish grading, road shoulders, or slope work.

---

Overall Dimensions & Weight

• Operating Weight: 16,875 Kg

• Length (Over Tyres): 9345 mm

• Width (Outside Tyres): 2550 mm

• Height to Top of Cab: 3330 mm

• Ground Clearance: 400 mm

• Wheelbase: 6210 mm

The long wheelbase provides excellent blade reach and machine stability during high-speed grading or slope shaping operations.

---

Hydraulic System

• System Type: Load-sensing, closed-center

• Max Flow: 170 LPM

• System Pressure: 24,000 kPa

• Blade Lift & Articulation: Proportional control for smooth grading

• Optional: Rear ripper and front dozer blade compatible

Volvo’s load-sensing hydraulics deliver precise control with minimal operator effort, especially during multi-function operations or when working on variable surfaces.

---

Service Capacities

• Fuel Tank: 341 Ltr

• Engine Oil: 27 Ltr

• Cooling System: 55 Ltr

• Hydraulic System: 132 Ltr

• Transmission Oil: 47 Ltr

• Tandem Housing (Each): 37 Ltr

Extended service intervals and easy-access points reduce maintenance time and increase machine uptime in the field.

---

Axle & Steering

• Front Axle: Hydraulic steering with ±18° articulation

• Rear Axle: Tandem drive, heavy-duty

• Steering Type: Articulated frame with center pivot

• Max Articulation Angle: 27° left or right

The G960’s steering and articulation system allow tight maneuvering in confined work zones, with full stability when grading long distances or navigating slopes.

---

Braking System

• Service Brakes: Oil-cooled, four-wheel hydraulic disc brakes

• Parking Brake: Spring-applied, hydraulic release

• Design: Fully enclosed for reliability in wet, dusty, or cold environments

---

Tyres

• Standard: 14.00 – 24 (12 PR)

• Optional: 17.5 – 25 or snow tread configurations

Heavy-duty tyres ensure traction and flotation across gravel roads, compacted surfaces, or snow-covered terrain.

---

Electrical System

• Voltage: 24 V

• Alternator: 120 Amp

• Batteries: Dual 12V heavy-duty

• Optional: LED work lights, GPS grading systems, rear camera

---

Use Cases

• Road construction and maintenance

• Shoulder shaping and ditching

• Snow and ice clearing

• Industrial site grading

• Haul road maintenance in mining and quarries

---

Final Thoughts

The Volvo G960 Motor Grader strikes a perfect balance between precision and power. Its dependable Volvo engine, operator-friendly controls, and versatile grading capabilities make it an efficient workhorse for contractors, municipalities, and site prep teams. With the support of Ekin Traktors, the G960 delivers long-term performance, low maintenance costs, and high operator satisfaction   job after job.
