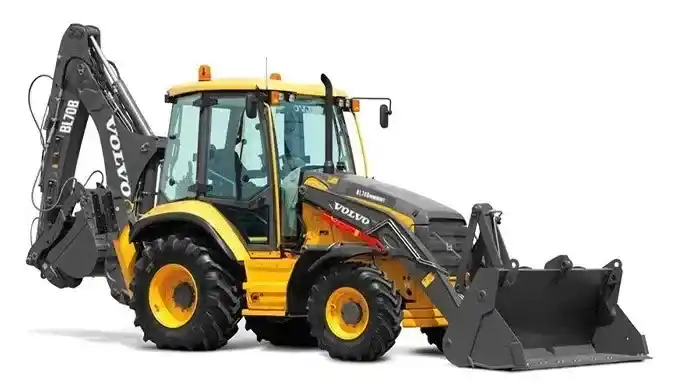

Volvo BL70B Backhoe Loader

The Volvo BL70B is a premium backhoe loader engineered for superior digging, loading, and lifting performance. Designed with Volvo’s signature focus on operator comfort, power efficiency, and reliability, the BL70B combines robust hydraulics and a high-torque engine to tackle demanding applications in construction, utility work, and site development.

Key Specifications

• Engine Power: 94 HP

• Maximum Torque: 400 NM

• Displacement: 4800 cc

• Max Dig Depth: 454 mm

• Dump Height: 2800 mm

• Hinge Pin Height: 3400 mm

• Ground Clearance: 370 mm

• Cabin Height: 2900 mm

Engine

• Emission Compliance: EPA Tier 3 / Stage IIIA

• Displacement: 4.8 L (4800 cc)

• Air Intake Type: Liquid-Cooled

• Gross Power Output: 94 HP

• Maximum Torque: 400 NM

The Volvo engine delivers high performance with reduced fuel consumption, ensuring optimal efficiency across long operating hours.

Loader Dimensions

• Dump Height: 2800 mm

• Hinge Pin Height: 3400 mm

Built for superior material handling, the loader’s high hinge pin height ensures easier loading into trucks and hoppers, while the dump height supports clean unloading.

Backhoe Capabilities

• Max Dig Depth: 454 mm

While shallow compared to some competitors, the dig depth is suited for lighter excavation and trenching work, especially in utility or roadside tasks.

Overall Dimensions

• Width Over Stabilizers: 3850 mm

• Wheelbase: 2200 mm

• Ground Clearance: 370 mm

• Cabin Height: 2900 mm

Designed for stability and operator safety, the BL70B offers a balanced frame that performs well on uneven terrain.

Use Cases

The Volvo BL70B is ideal for:

• Light Construction & Infrastructure Repair

• Municipal Utility Work & Road Maintenance

• Material Loading & Site Cleanup

• Rental Fleets Requiring Fuel-Efficient Machines

Summary

With dependable power, operator-centric design, and Volvo-grade durability, the BL70B Backhoe Loader is an excellent choice for teams looking for reliability, comfort, and fuel economy. From trenching to loading, this machine supports efficient operations in urban and off-road environments.

Available now at Ekin Traktors. Reach out to schedule a demo or request a quote.
