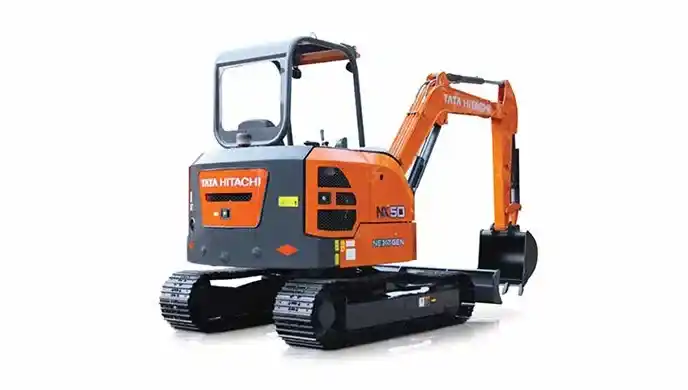

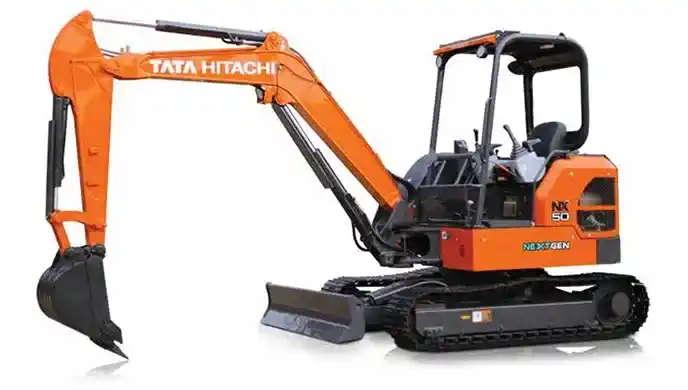

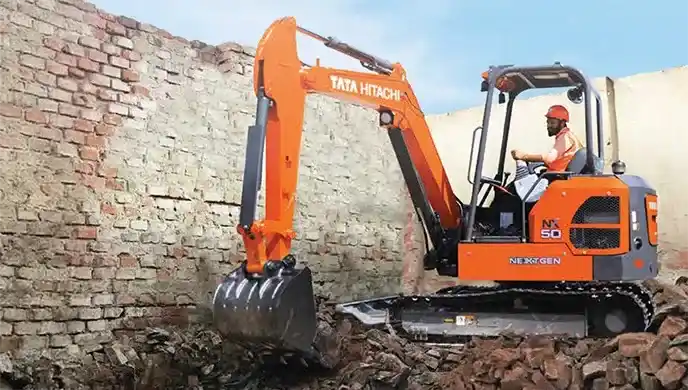

Tata Hitachi NX 50 Excavator

The Tata Hitachi NX 50 Excavator is a next-generation 5-ton machine built for high productivity, low operating costs, and ease of use in urban and semi-urban construction environments. Powered by a reliable 33.52 HP engine and equipped with Tata Hitachi’s Optimum Hydraulic System (OHS), the NX 50 offers smooth combined operations, fast cycle times, and strong digging forces — all in a compact footprint ideal for tight job sites.

Key Specifications

• Engine Power: 33.52 HP (25.9 kW)

• Operating Weight: 5190 Kg

• Maximum Digging Depth: 3547 mm

• Bucket Digging Force (ISO): 3740 kgf

• Tail Swing Radius: 1320 mm

• Fuel Tank Capacity: 62 L

Engine

• Engine Output (ISO 14396): 25.9 kW @ 2100 rpm

• Net Power (ISO 9249): 25 kW @ 2100 rpm

• Displacement: 2.19 L

• Fuel Type: Diesel

The NX 50’s fuel-efficient engine delivers smooth, responsive power with reliable output even under load. With precise fuel injection and low emissions, it’s built to deliver longer working hours and reduce downtime.

Hydraulic System

• System Type: Optimum Hydraulic System (OHS)

• Pump Configuration: Three-pump setup for enhanced efficiency

• Total Hydraulic System Capacity: 84 L

Tata Hitachi’s Optimum Hydraulic System ensures seamless coordination between boom, arm, and bucket operations, reducing cycle times while maintaining fuel economy. Ideal for multitasking in confined urban workspaces.

Swing Mechanism

• Swing Speed: 9 rpm

• Maximum Swing Torque: 9.4 kN·m

A balanced swing system provides fast and controlled upper structure movement — crucial for trenching and loading in narrow zones or around structures.

Working Range & Digging Forces

• Max Digging Depth: 3547 mm

• Boom Length: 2884 mm

• Bucket Length: 1127 mm

• Bucket Digging Force: 3740 kgf

With its deep digging capability and robust breakout force, the NX 50 is optimized for foundation work, drainage, and utility trenching — especially in areas where larger machines can’t access.

Dimensions & Clearances

• Transport Width: 1850 mm

• Ground Clearance: 323 mm

• Tail Swing Radius: 1320 mm

• Track Gauge: 1450 mm

A compact tail swing radius and narrow transport width make the NX 50 easy to maneuver in dense job sites and easy to transport on standard trailers.

Operating Weight & Refill Capacities

• Operating Weight: 5190 Kg

• Fuel Tank Capacity: 62 L

• Engine Oil: 7.4 L

• Hydraulic Oil (Total): 84 L

The machine’s balanced weight enhances digging stability, while generous tank capacities reduce the need for frequent refills — making it perfect for longer tasks or remote site work.

Use Case Applications

• Urban Infrastructure Projects

• Drainage and Irrigation Work

• Residential Construction & Foundations

• Roadside Utility Installations

• Rental Fleets for General Excavation

Why Choose Tata Hitachi NX 50?

Designed for operators who need compact size without sacrificing digging performance, the NX 50 is a reliable and efficient partner on every site. Whether you’re a contractor, builder, or fleet owner, this machine delivers consistent performance with lower fuel and maintenance costs — backed by Tata Hitachi’s trusted engineering.

Available now through Ekin Traktors. Contact us today for a quote, demo, or to check availability in your region.
