Manitou TLB 844S

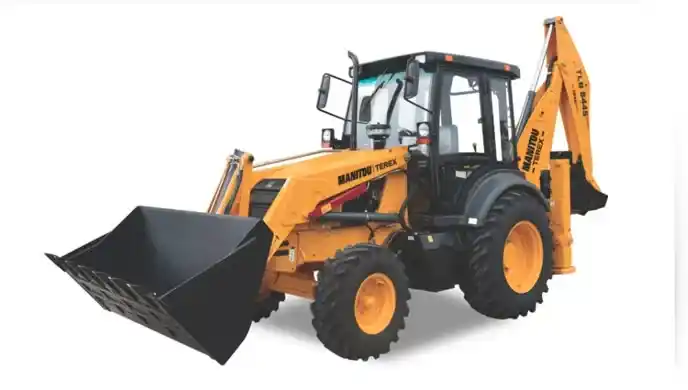

Manitou TLB 844S Backhoe Loader

Versatile. Built tough. Ready for serious jobs.

The Manitou TLB 844S is a no-nonsense backhoe loader engineered to handle real-world conditions. Whether you’re trenching, loading, lifting, or backfilling, this machine delivers power where it counts — backed by the durability and balance expected by professionals on demanding worksites.

At Ekin Traktors, we recommend the 844S for contractors who need a reliable daily performer with the hydraulic muscle and ground clearance to handle both urban and off-road terrain.

Key Performance Specs

• Engine Power: 90 hp @ 2200 rpm

• Max Operating Weight: 7,500 kg

• Loader Bucket Capacity: 1.0 m³

• Backhoe Bucket Capacity: 0.24 m³

• Max Dig Depth: 4,741 mm

• Hydraulic Flow: 145 LPM

• System Pressure: 225 bar

Engine & Powertrain

Under the hood, the 844S runs on a proven Kirloskar 4R1040TA BS-III engine, offering a solid 350 Nm torque for high-demand tasks. It’s paired with a robust transmission system and rear axle fitted with outboard planetary final drives — giving you long-term reliability and easy maintenance access in the field.

Loader Arm Capabilities

• Dump Height: 2,708 mm

• Hinge Pin Height: 3,550 mm

• Bucket Breakout Force: 4,580 kgf

• Loader Arm Breakout Force: 4,685 kgf

• Reach at Max Height (Dumped): 1,282 mm
  The loader is engineered for fast cycle times and aggressive material handling, with 45° rollback and a 57° dump angle for efficient loading and unloading on-site.

Backhoe Performance

• Max Digging Depth: 4,741 mm

• Bucket Rotation: 194°

• Bucket Breakout Force: 5,219 kgf

• Dipper Tear-Out Force: 3,946 kgf
  The backhoe end is tuned for high digging efficiency with deep trenching capability and precise control, even in compact spaces. Ideal for infrastructure, utility, and drainage work.

Hydraulic System & Service

• Pump Flow: 145 LPM

• Hydraulic Oil Capacity: 90 L

• System Pressure: 225 bar

• Engine Oil Capacity: 11 L

• Fuel Tank: 120 L

• Coolant: 16 L
  Access to service points is fast and intuitive, minimizing downtime. The sealed, wet disc brakes and reinforced chassis design ensure long service life even in high-dust or off-road conditions.

Build, Dimensions & Ground Handling

• Transport Length: 7,338 mm

• Overall Height (Cabin): 2,770 mm

• Ground Clearance: 400 mm

• Wheelbase: 2,130 mm

• Front Tyres: 9×16 – 16 PR

• Rear Tyres: 14×25 – 20 PR

• Brakes: Self-actuating, sealed wet discs (maintenance-free)
  The machine sits well-balanced with a high-traction axle system designed to maintain ground contact even on undulated terrain. Excellent visibility from the cab, and the steering system provides tight turning for confined jobsites.

Ideal For

• Construction contractors

• Utility and electrical work

• Earthmoving and trenching

• Municipal projects

• Rural development

Why Choose It From Ekin Traktors?

We don’t just list machines — we match serious equipment to serious operators. The Manitou TLB 844S offers a great balance of performance, ease of service, and jobsite flexibility. When you source through Ekin Traktors, you get more than a machine. You get:

• Pre-screened, high-performance units

• Transparent sourcing & specs

• Real support from people who know your work

Need multiple units or specialized setups?
Our team can configure machines to meet specific project requirements across Africa, the Middle East, or your local zone.
