Manitou MBL 745HT S

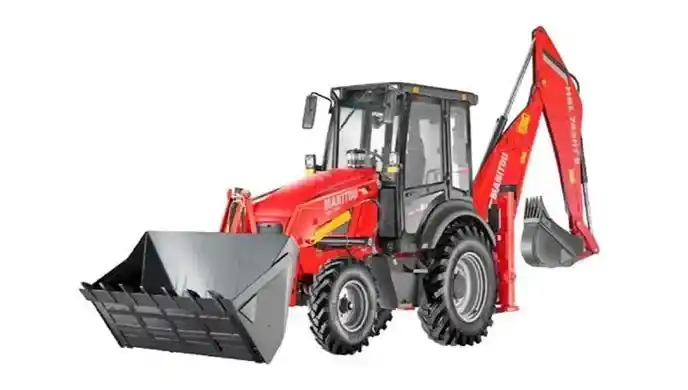

Manitou MBL 745HT S Backhoe Loader

The Manitou MBL 745HT S is a premium variant in the MBL backhoe loader series, delivering greater lifting strength, superior breakout forces, and optimized bucket capacity for higher productivity. With advanced hydraulic performance and a powerful turbocharged engine, this machine excels in tough excavation, loading, and infrastructure jobs.

Engineered for heavier-duty operations than its base counterpart, the 745HT S provides enhanced capacity while maintaining reliable control and efficient fuel use.

---

Key Specifications

• Max. Lift Capacity: 1460 Kg

• Loader Bucket Capacity: 1 Cum

• Backhoe Bucket Capacity: 0.27 Cum

• Max Operating Weight: 7620 Kg

• Hydraulic Oil Capacity: 90 Ltr

• Max. Reach at Full Height: 1153 mm

---

Engine

• Model: 4R1190TA-H.T Turbo Charged

• Cooling System: Water-Cooled

• Emission Compliance: BS IV CEV

• Displacement: 4.76 L (4760 cc)

• Gross Power: 74.5 HP @ 2200 rpm

• Maximum Torque: 400 NM

The 4-cylinder turbo engine ensures consistent torque for heavy load cycles, deep digging, and material shifting. The power-to-weight ratio makes it ideal for high-resistance environments like clay, rock, or wet soil.

---

Loader General Dimensions

• Bucket Capacity (Standard): 1 Cum

• Bucket Breakout Force: 5229 kgf

• Loader Arm Breakout Force: 4691 kgf

• Load Over Height: 3310 mm

• Hinge Pin Height: 3570 mm

• Rollback at Ground: 45°

• Dump Angle: 51°

This high-capacity loader is optimized for high-volume loading tasks and provides excellent control at full lift height, making it a strong performer in tight worksite cycles.

---

Backhoe Loader Dimensions

• Maximum Digging Depth: 4741 mm

• Bucket Breakout Force: 5810 kgf

• Dipper Tear-Out Force: 3942 kgf

• Backhoe Bucket Capacity: 0.27 Cum

• Maximum Lift Capacity: 1460 Kg

With aggressive breakout forces and extended digging depth, the backhoe delivers confident trenching in utility, foundation, or drainage applications—even in compact or hard ground environments.

---

Overall Dimensions & Weight

• Max Operating Weight: 7620 Kg

• Transport Length: 7330 mm

• Width Over Bucket: 2330 mm

• Wheelbase: 2130 mm

• Minimum Ground Clearance: 280 mm

• Height to Top of Cabin: 2830 mm

The added mass supports higher lift stability and greater breakout force, while still maintaining a manageable footprint for urban or mid-sized sites.

---

Hydraulic System

• Pump Flow: 119 l/min

• Hydraulic Oil System Capacity: 90 Ltr

The system delivers consistent pressure and fluid control across multi-function operations—ideal for quick cycling between digging and loading tasks.

---

Service Capacities

• Engine Oil: 11 Ltr

• Transmission Oil Capacity: 17.5 L

• Rear Axle Oil: 17.5 L

• Fuel Tank: 120 Ltr

• Hydraulic Oil: 90 Ltr

Designed with longer operational intervals, the 745HT S minimizes downtime and improves overall jobsite productivity with simplified service access.

---

Steering & Brakes

• Steering Type: Power Steering

• Service Brakes: Wet Disc Brakes

Smooth control and strong stopping power are critical on uneven ground. The MBL 745HT S delivers both with ease.

---

Tyres

• Standard Front Tyres: 12.5 x 18 – 12 PR

• Standard Rear Tyres: 16.9 x 28 – 12 PR

Heavy-duty tyres offer traction and shock absorption for mixed terrain—whether it’s gravel roads, muddy work zones, or compacted construction sites.

---

Travel System

• Forward Speeds: 5.4 km/h, 8.6 km/h

• Reverse Speeds: 19.9 km/h, 40 km/h

With multiple travel speeds, operators can move swiftly between job sites or work zones while retaining control and fuel efficiency.

---

Use Cases

The Manitou MBL 745HT S is ideal for:

• Heavy Infrastructure & Civil Projects: With a stronger loader and larger bucket, this model excels in heavy-duty material handling, road building, and drainage works.

• Large-Scale Agriculture: Capable of managing grain, soil, and feed, it’s well-suited for large farms needing consistent performance under load.

• Mining Support & Quarry Work: The enhanced breakout forces and stronger lift arm make this model ideal for support work in smaller mining and rock excavation environments.

• Public Works & Irrigation Projects: A solid choice for canal building, culvert laying, and pipeline excavation in government or private contracts.

• Equipment Rentals: This upgraded model is ideal for rental businesses looking to offer more robust machinery for customers handling medium to large-scale projects.

---

Final Thoughts

The Manitou MBL 745HT S backhoe loader is a true workhorse designed for professionals needing more capacity and force than standard backhoe loaders can offer. Its larger bucket, high breakout force, and increased operating weight make it a practical investment for contractors, municipal projects, and fleet managers seeking dependable and powerful machinery.

At Ekin Traktors, we help contractors source the right machine with the right specs—delivered directly to your site, anywhere across our global and U.S. locations. Contact us for a quote or inventory check on the MBL 745HT S today.
