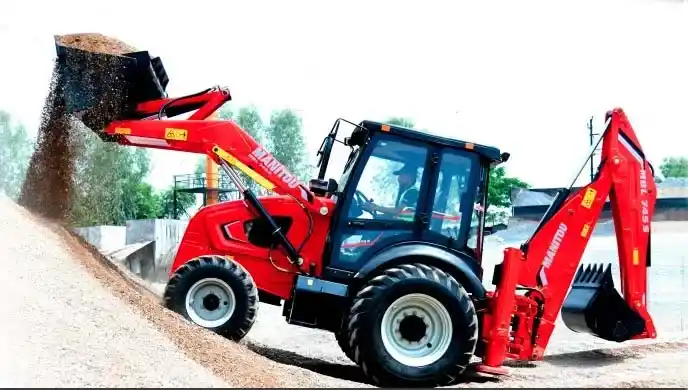

Manitou MBL 745 S Backhoe Loader

The Manitou MBL 745 S backhoe loader is built to deliver consistent performance across a wide range of applications—from general construction and utilities to agriculture and site maintenance. With its BS IV CEV-compliant engine, superior digging depth, and enhanced lifting capabilities, the MBL 745 S offers a reliable and fuel-efficient solution for demanding job sites.

---

Key Specifications

• Max. Lift Capacity: 1460 Kg

• Loader Bucket Capacity: 1 Cum

• Backhoe Bucket Capacity: 0.27 Cum

• Max Operating Weight: 7620 Kg

• Hydraulic Oil Capacity: 90 Ltr

• Max Reach at Full Height: 1153 mm

---

Engine

• Emission Compliance: BS IV CEV

• Model: 4R1190NA1

• Displacement: 4.76 L (4760 cc)

• Gross Power: 74.5 HP @ 2200 rpm

• Maximum Torque: 300 NM

The modern, fuel-efficient engine meets environmental standards while delivering robust torque for heavy-duty tasks and long-duty cycles.

---

Loader Dimensions & Performance

• Standard Bucket Capacity: 1 Cum

• Bucket Breakout Force: 5810 kgf

• Dump Height: 2780 mm

• Load Over Height: 3310 mm

• Hinge Pin Height: 3570 mm

• Max Reach at Full Height: 1153 mm

• Rollback at Ground: 45°

• Dump Angle: 51°

High-lift geometry allows efficient loading, stacking, and truck-loading operations with increased bucket breakout force.

---

Backhoe Performance

• Maximum Dig Depth: 4741 mm

• Maximum Working Height: 3790 mm

• Bucket Rotation: 194°

• Dipper Tear-Out Force: 3942 kgf

• Backhoe Bucket Capacity: 0.27 Cum

• Max Lift Capacity: 1460 Kg

Designed for stable, deep digging and high backhoe productivity across trenching, excavation, and drainage work.

---

Overall Dimensions & Weight

• Max Operating Weight: 7620 Kg

• Transport Length: 7330 mm

• Width Over Bucket: 2230 mm

• Wheelbase: 2185 mm

• Ground Clearance: 280 mm

• Cabin Height: 2830 mm

Compact and sturdy frame with optimized weight distribution for better ground contact and handling.

---

Hydraulic System

• Pump Flow: 119 L/min

• System Relief Pressure: 225 bar

• Hydraulic Oil Capacity: 90 Ltr

Responsive hydraulics offer precise control, reduced operator fatigue, and multi-function capability for both front and rear attachments.

---

Service Capacities

• Engine Oil: 11 Ltr

• Transmission Oil: 17.5 Ltr

• Rear Axle: 17.1 Ltr

• Fuel Tank: 120 Ltr

• Coolant: Not specified

• Hydraulic System Oil: 90 Ltr

Low-maintenance design helps reduce downtime and service costs, improving machine uptime on worksites.

---

Steering & Braking

• Steering Type: Power Steering

• Turning Circle Diameter (Outside Bucket): 4.3 m

• Braking System: Wet Disc Brakes

Smooth turning and reliable braking ensure operator safety and efficient handling in tight spaces.

---

Tyres

• Front Tyre Options: 12.5 x 18 – 12 PR / 16.9 x 28 – 12 PR

• Rear Tyre Options: 9 x 16 – 16 PR / 14 x 25 – 20 PR

Rugged tyres with high ply rating provide solid traction across gravel, mud, and soft soil conditions.

---

Electrical System

• Battery: 12V / 130 Ah

Heavy-duty battery powers essential systems, starting, and lighting requirements with dependable output.

---

Travel System

• Forward Gears: 5.4 km/h / 8.6 km/h

• Reverse Gears: 19.9 km/h / 40 km/h

Smooth gear transitions and optimized speed settings enhance performance in transit and on varied terrains.

---

Use Cases

The Manitou MBL 745 S is an excellent fit for:

• Urban Infrastructure Projects: Cable laying, utility trenching, and municipal maintenance

• Rural Development: Road building, irrigation, and land grading

• Agriculture: Earth movement, manure handling, and farm road construction

• General Contracting: Small to medium excavation and material movement tasks

• Rental & Equipment Fleets: Durable and operator-friendly machine for multi-application rentals

---

Summary

With a compliant engine, enhanced loader force, and improved bucket capacity, the Manitou MBL 745 S is a next-generation backhoe loader designed for reliability, lower emissions, and high-efficiency jobsite performance. Ideal for contractors, government projects, and rural developments where versatility and durability matter most.

Available now via Ekin Traktors. Contact us for a quote, delivery options, or demo scheduling.
