Manitou MBL 745 RANGER

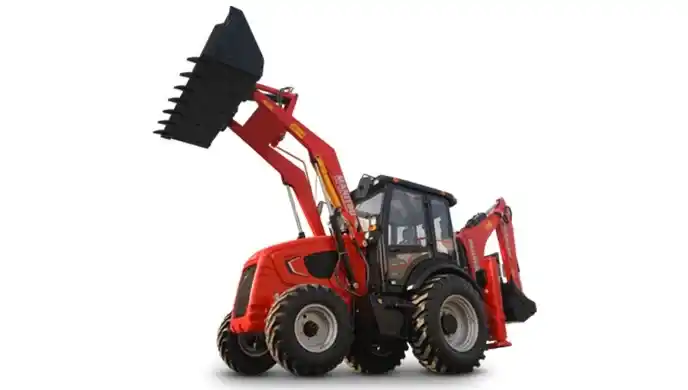

Manitou MBL 745 RANGER Backhoe Loader

Overview

The Manitou MBL 745 RANGER is engineered to perform under pressure, combining robust French manufacturing quality with specifications that cater to the demands of modern infrastructure and utility work. With a reliable 4R1190NA1 engine, superior lifting capacity, and impressive reach, this model is tailored for contractors who prioritize heavy-duty performance and durability in demanding environments.

At Ekin Traktors, we see the MBL 745 RANGER as a premium backhoe loader for professionals who want a machine capable of delivering consistent output across varied applications—whether it’s construction, road maintenance, or utility trenching. Its balance of hydraulic strength and operator comfort makes it a preferred choice in both rural and urban work zones.

Key Specifications

• Loader Bucket Capacity: 1 Cum

• Backhoe Bucket Capacity: 0.27 Cum

• Hydraulic Oil Capacity: 90 Ltr

• Maximum Lifting Capacity: 3467 Kg

Engine

• Compliant: BS IV CEV

• Model: 4R1190NA1

• Displacement: 4760 cc

• Gross Power: 54.80 kW @ 2200 rpm

• Maximum Torque: 300 NM

The naturally aspirated, water-cooled engine provides a solid torque curve and reliable cold starts—ideal for remote or high-dust job sites. With BS IV compliance, it’s engineered to meet modern emissions standards without compromising on brute pulling power.

Loader General Dimensions

• Load Over Height: 3310 mm

• Hinge Pin Height: 3570 mm

• Dump Angle: 51°

• Standard Bucket Capacity: 1 Cum

• Maximum Lifting Capacity: 3467 Kg

Whether you’re loading materials into trucks or handling site prep, the loader arms and bucket geometry of the MBL 745 RANGER deliver power and precision. It can comfortably handle large volumes while ensuring operator control with minimal strain.

Backhoe Loader Dimensions

• Backhoe Bucket Capacity: 0.27 Cum

The backhoe unit is designed for quick trenching, utility line work, and foundation digging. Its medium bucket size allows high cycle efficiency while being compact enough for controlled, narrow digs.

Overall Dimensions & Weight

• Wheelbase: 2185 mm

• Minimum Ground Clearance: 280 mm

The tight wheelbase ensures better maneuverability without sacrificing stability. Its balanced structure provides better traction across uneven and muddy terrains, which is essential in developing regions or unpaved job sites.

Hydraulic System

• System Relief Pressure: 225 bar

• Hydraulic Oil Capacity: 90 Ltr

This high-pressure system ensures rapid cycle times and responsive loader/backhoe operations even during prolonged workloads.

Service Capacities

• Engine Oil: 11 Ltr

• Transmission Oil (System): 17.5 Ltr

• Fuel Tank: 120 Ltr

• Coolant: Naturally Aspirated Water-Cooled

• Hydraulic Oil: 90 Ltr

• Fuel Type: Diesel

The ample fuel tank and fluid capacities support long operating intervals and reduce downtime—crucial for intensive daily use on remote jobs.

Steering & Brakes

• Steering Type: Power Steering

• Brakes (Service): Wet Disc

The wet disc brake system ensures long life and consistent performance even in wet or dusty working conditions. Steering is light and responsive, aiding fatigue-free operation over long shifts.

Tyres

• Standard Tyre (Front): 12.5 x 18 – 12 PR

• Standard Tyre (Rear): 16.9 x 28 – 12 PR

• Optional HD Tyre (Rear): 9 x 16 – 16 PR / 14 x 25 – 20 PR

Tyre variants make the MBL 745 adaptable to different terrains—from hard-packed soil to loose gravel or muddy conditions.

Electrical System

• Battery: 12 V / 142 Ah

This electrical setup is optimized for long operating shifts with enough capacity for lighting, signals, and control systems.

Travel System (Forward Speeds)

• 1st Gear: 5.40 km/h

• 2nd Gear: 8.60 km/h

• 3rd Gear: 19.90 km/h

• 4th Gear: 40 km/h

Its high top speed of 40 km/h reduces idle time during repositioning or site transfers, helping maximize productivity throughout the workday.

Final Thoughts

The Manitou MBL 745 RANGER is a machine built for reliability and output. Its smooth handling, strong lift capacity, and high dump angles give it an edge in both confined job sites and open earthworks. With an intelligently designed cabin and robust hydraulic system, it delivers value not just in specs, but in real-world results.

At Ekin Traktors, we offer this model with full technical support and logistical ease—making it a smart choice for fleet expansion or new operations. Let us help you gear up with confidence.
