Manitou MBL 745 HT Plus

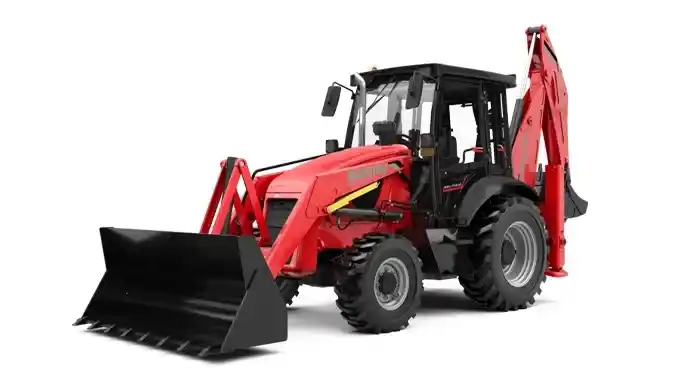

Manitou MBL 745 HT Plus Backhoe Loader

The Manitou MBL 745 HT Plus is a high-torque, heavy-performance backhoe loader, designed for extended operational hours in harsh working environments. Fitted with a turbocharged 4R1190TA-H.T engine and advanced hydraulic configurations, this model delivers more digging depth, lift power, and system efficiency—making it an ideal solution for construction companies and infrastructure contractors looking for robust performance with modern emission compliance.

At Ekin Traktors, we recommend the MBL 745 HT Plus for buyers who prioritize deep digging ability, loader power, and a high-flow hydraulic system that doesn’t compromise under pressure. It’s a machine made for serious professionals, with a structure built to handle challenging terrain, heavy-duty use, and high-volume material cycles.

Key Specifications

• Max. Lift Capacity: 3467 Kg

• Loader Bucket Capacity: 0.27 Cum

• Hydraulic Oil Capacity: 90 Ltr

• Backhoe Max Dig Depth: 4741 mm

• Pump Flow: 143 l/min

Engine

• Model: 4R1190TA-H.T Turbo Charged

• Cooling System: Water-Cooled

• Emission Compliance: BS IV CEV

• Displacement: 4760 cc

• Gross Power: 54.80 kW @ 2200 rpm

• Maximum Torque: 400 NM

This turbocharged engine offers more torque than its non-turbo counterpart, giving operators more responsive power in load-lift scenarios and better performance in high-altitude or high-load conditions.

Loader General Dimensions

• Load Over Height: 3871 mm

• Hinge Pin Height: 3570 mm

• Max Reach at Full Height: 1996 mm

• Rollback at Ground: 45°

• Dump Angle: 51°

• Standard Bucket Capacity: 0.27 Cum

• Maximum Lifting Capacity: 1460 Kg

This loader arm geometry ensures excellent dump height, minimal rollback waste, and steady cycle times—ideal for loading dumpers, material transfer, and high-pile stacking.

Backhoe Loader Dimensions

• Maximum Digging Depth: 4741 mm

• Reach at Full Height to Slew Center: 5730 mm

• Maximum Load Over Height: 3310 mm

• Bucket Rotation: 194°

• Dipper Tear Out Force: 3942

• Backhoe Bucket Capacity: 0.27 Cum

• Maximum Lift Capacity: 3467 Kg

The advanced backhoe geometry with increased reach and depth enables deeper trenching, wider swing clearance, and aggressive breakout forces. With 194° of bucket rotation, operators get better digging angles and improved spoil placement control.

Overall Dimensions & Weight

• Width Over Bucket: 889 mm

• Wheelbase: 2185 mm

• Minimum Ground Clearance: 280 mm

Compact, yet solid, the MBL 745 HT Plus maintains stability even with full backhoe extension or heavy bucket loads. The short wheelbase supports better on-site turning with reduced rear overhang risk.

Hydraulic System

• Pump Flow: 143 l/min

• System Relief Pressure: 225 bar

• Hydraulic Oil Capacity: 90 Ltr

With a high flow rate and solid pressure rating, this hydraulic system ensures fast arm response and continuous flow for multiple operations—especially useful in multi-tasking, such as loading and lifting simultaneously.

Service Capacities

• Engine Oil: 11 Ltr

• Transmission Oil Capacity: 17.5 Ltr

• Fuel Tank: 120 Ltr

• Fuel Type: Diesel

• Hydraulic Oil: 90 Ltr

Long service intervals and high fluid capacity reduce downtime, especially critical for projects in remote areas where machine uptime means profit.

Steering & Brakes

• Steering Type: Power Steering

• Brakes (Service): Wet Disc Brakes

The wet disc system offers enhanced braking performance even in dusty, muddy, or wet conditions, while power steering ensures operator comfort across long shifts.

Tyres

• Standard Tyre (Front): 12.5 x 18 – 12 PR

• Standard Tyre (Rear): 16.9 x 28 – 12 PR

• HD Tyre Rear (Optional):

  • Front: 9 x 16 – 16 PR

  • Rear: 14 x 25 – 20 PR

Tire options allow users to match the loader’s ground traction to their environment—whether on concrete, gravel, or muddy job sites.

Electrical System

• Battery: 12 V / 142 Ah

A reliable power source for ignition, lighting, and instrumentation—essential for work that starts early or continues late into the night.

Travel System

• Forward Gears: 4

• Reverse Gears: 4

Smooth travel with balanced gear ratios allows better control both on-road and off-road, ensuring the machine can reposition quickly between tasks or transit efficiently over short distances.

The Manitou MBL 745 HT Plus is more than just an upgrade—it’s a heavy-duty performer for projects that demand hydraulic efficiency, turbocharged output, and optimized loader-backhoe geometry. For clients working in high-capacity digging, lifting, or infrastructure projects, this machine checks every box.

At Ekin Traktors, we provide full sourcing, consultation, and delivery services for the MBL 745 HT Plus. Whether you’re expanding your fleet or starting a new project, this model gives you the depth, reach, and reliability to work with confidence.
