Manitou MBL 745

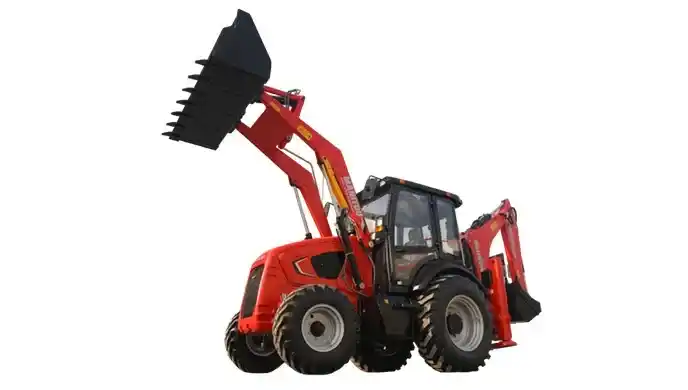

Manitou MBL 745 Backhoe Loader

Overview

The Manitou MBL 745 is a versatile and efficient backhoe loader engineered for high-performance tasks across construction, agriculture, and infrastructure development. Built with a BS IV CEV-compliant engine and reliable hydraulic system, the MBL 745 balances fuel economy with robust power, making it ideal for demanding job sites that require precision and endurance.

---

Key Specifications

• Max. Lift Capacity: 1460 Kg

• Loader Bucket Capacity: 1 Cum

• Backhoe Bucket Capacity: 0.27 Cum

• Max Operating Weight: 7300 Kg

• Hydraulic Oil Capacity: 90 Ltr

• Max Reach at Full Height: 2780 mm

---

Engine

• Emission Compliance: BS IV CEV

• Model: 4R1190NA1 (Naturally Aspirated, Water Cooled)

• Displacement: 4.76 L (4760 cc)

• Gross Power: 54.80 kW @ 2200 rpm (≈ 73.5 HP)

• Maximum Torque: 300 NM

This efficient engine offers smooth performance with reduced emissions—ideal for daily workloads in varied terrain.

---

Loader Dimensions & Performance

• Standard Bucket Capacity: 1 Cum

• Bucket Breakout Force: 5685 kgf

• Dump Height: 2780 mm

• Load Over Height: 3310 mm

• Hinge Pin Height: 3570 mm

• Max Reach at Full Height: 1153 mm

• Rollback at Ground: 45°

• Dump Angle: 51°

Designed for high-volume material handling, this loader setup offers smooth dumping cycles and excellent breakout force for heavier tasks.

---

Backhoe Performance

• Maximum Dig Depth: 4415 mm

• Bucket Rotation: 197°

• Dipper Tear-Out Force: 3163 kgf

• Backhoe Bucket Capacity: 0.27 Cum

• Max Lift Capacity: 1460 Kg

Perfect for deep trenching, pipe-laying, and excavation jobs, the backhoe arm delivers stability, control, and digging efficiency.

---

Overall Dimensions & Weight

• Max Operating Weight: 7300 Kg

• Transport Length: 7380 mm

• Width Over Bucket: 2330 mm

• Ground Clearance: 280 mm

• Cabin Height: 2830 mm

Compact yet powerful, the MBL 745 fits comfortably on various worksites while providing the durability needed for harsh working conditions.

---

Hydraulic System

• Pump Flow: 119 L/min

• System Relief Pressure: 225 bar

• Hydraulic Oil Capacity: 90 Ltr

Efficient hydraulic flow and pressure deliver strong and responsive movements for both loader and backhoe attachments.

---

Service Capacities

• Engine Oil: 11 Ltr

• Rear Axle Oil: 17.10 Ltr

• Transmission Oil: 17.50 Ltr

• Fuel Tank: 120 Ltr

Optimized for long shifts, the MBL 745 ensures reduced downtime with high fluid capacities and easy serviceability.

---

Steering & Braking

• Steering Type: Power Steering

• Brakes: Wet Disc Brakes

Reliable braking and easy maneuverability enhance operator safety and machine control during tight operations.

---

Tyres

• Front Tyre Options: 12.5 x 18 – 12 PR / 16.9 x 28 – 12 PR

• Rear Tyre Options: 9 x 16 – 16 PR / 14 x 25 – 20 PR

Sturdy tyres ensure traction, stability, and durability across uneven surfaces and rugged terrains.

---

Electrical System

• Battery: 12V / 142 Ah

High-capacity battery ensures reliable starts and consistent electrical support for machine components.

---

Travel System

• Forward Speeds: 5.40 km/h / 8.60 km/h

• Reverse Speeds: 19.90 km/h / 40.00 km/h

Balanced travel speeds allow for fast jobsite transitions and efficient reversing operations.

---

Use Cases

The Manitou MBL 745 is ideal for:

• Municipal & Rural Projects

• Agricultural Earthwork & Road Grading

• Utility Trenching & Pipe-Laying

• Construction Material Loading & Transport

• Multi-application Rental Fleets

---

Summary

With optimized fuel efficiency, a proven powertrain, and strong digging and loading capability, the Manitou MBL 745 is a practical backhoe loader designed for real-world performance. Whether you’re managing rural development or tackling urban infrastructure, this machine brings solid dependability and productivity to the field.

Now available through Ekin Traktors. Contact us today for pricing, demo, or fleet inquiries.
