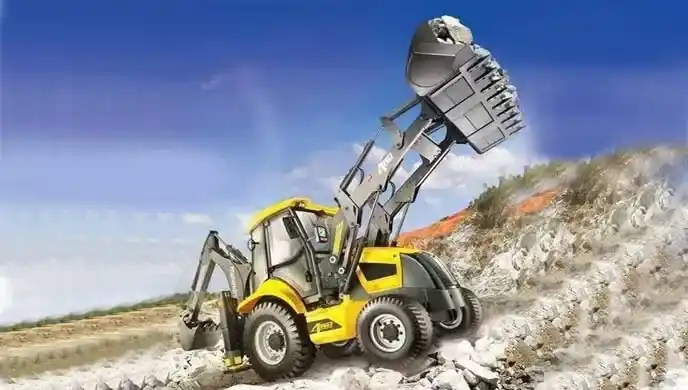

Mahindra SX 4WD Backhoe Loader – Rugged Versatility. Built to Perform.

The Mahindra SX 4WD backhoe loader is engineered for demanding jobsites where power, reach, and reliability aren’t optional—they’re expected. Whether you’re excavating deep trenches, loading trucks, or handling rough terrain, the SX 4WD delivers dependable performance day after day. With a turbocharged engine, 4-wheel drive capability, and robust hydraulic systems, this machine is ideal for contractors, fleet operators, and site managers who need a workhorse that works as hard as they do.

---

Key Specifications

• Engine Power: 79.89 hp

• Maximum Operating Weight: 7,880 kg

• Max Digging Depth: 4,959 mm

• Loader Bucket Capacity: 1.0 m³

• Backhoe Bucket Capacity: 0.24 m³

• Max Lifting Capacity: 3,428 kg

• Hydraulic Oil Capacity: 100 L

• Pump Flow Rate: 115 L/min

---

Engine & Powertrain

At the heart of the SX 4WD is a Mahindra DITEC Turbocharged Intercooled Diesel Engine—proven across thousands of machines in real-world conditions. It offers high torque output at low RPMs for excellent fuel efficiency and consistent power delivery.

• Engine Type: Mahindra DITEC Turbocharged Intercooled

• Displacement: 3,532 cc

• Gross Power: 79.89 hp

• Max Torque: 306 Nm

• Transmission: 4-speed synchromesh (4 forward, 4 reverse)

• Drive System: 4WD with oscillating front axle for traction on uneven terrain

---

Hydraulic System

Designed for multi-functionality and smooth operation, the SX 4WD’s hydraulics are optimized for both speed and control—delivering responsive handling across lifting, digging, and loading applications.

• System Type: Open Centre

• Pump Type: Fixed Displacement Gear Pump

• Flow Rate: 115 L/min

• System Pressure: 250 bar

• Hydraulic Reservoir Capacity: 100 L

• Hydraulic Oil Replacement Volume: 50 L

---

Loader Arm Performance

The SX 4WD front loader is built for material handling efficiency, offering powerful lift and bucket breakout forces. Whether loading gravel, soil, or debris, this loader does more with less strain.

• Dump Height: 2,715 mm

• Load Over Height: 3,253 mm

• Reach at Ground Level: 1,350 mm

• Reach at Full Height (Bucket Dumped): 4,959 mm

• Bucket Breakout Force: 6,243 kg

• Loader Arm Breakout Force: 5,594 kg

---

Backhoe Arm Performance

Built for deep excavation tasks, the backhoe’s long reach, high dig force, and wide slew angle allow for high-productivity trenching and precise digging—even in confined spaces.

• Max Dig Depth: 4,959 mm

• Max Reach at Full Height (Slew Center): 2,676 mm

• Max Load Over Height: 4,302 mm

• Max Working Height: 6,043 mm

• Backhoe Bucket Breakout Force: 5,199 kg

• Swing Arc: 180°

---

Dimensions & Weight

• Operating Weight: 7,880 kg

• Transport Length: 7,338 mm

• Cab Height: 2,770 mm

• Overall Height (Transport): 3,762 mm

• Minimum Ground Clearance: 400 mm

• Wheelbase: 2,130 mm

• Front Tires: 12.5 x 18 – 12 PR

• Rear Tires: 16.9 x 28 – 12 PR

---

Cab & Operator Station

The operator cabin is engineered for comfort and functionality, featuring an ergonomic layout, wide visibility, and reduced vibration—designed to minimize fatigue over long working hours.

• Cab Type: Enclosed ROPS/FOPS optional

• Steering: Hydrostatic Power Steering

• Controls: Dual lever control for loader and backhoe

• Dashboard: Multi-function instrument cluster

• Seating: Adjustable suspension seat

• Lighting: Full worklight package for night operations

---

Braking & Safety

• Service Brakes: Hydraulic, oil-immersed multi-disc brakes (maintenance-free)

• Parking Brake: Hand-operated mechanical disc integrated into rear axle

• Axles:

  • Front: Centrally pivoted, driven, and steered with 16° oscillation

  • Rear: Rigid-mounted with planetary final drives

---

Service Capacities

• Engine Oil: 13.7 L

• Transmission Oil: 22 L

• Rear Axle Oil: 17.1 L

• Coolant: 17 L

• Fuel Tank: 120 L

---

Applications

Whether you’re working in road construction, rural development, utility trenching, or material transport, the Mahindra SX 4WD is engineered to deliver performance without compromise. Its strong lifting capability, deep digging reach, and traction-ready drivetrain make it a multi-purpose machine for all terrains and sectors.
