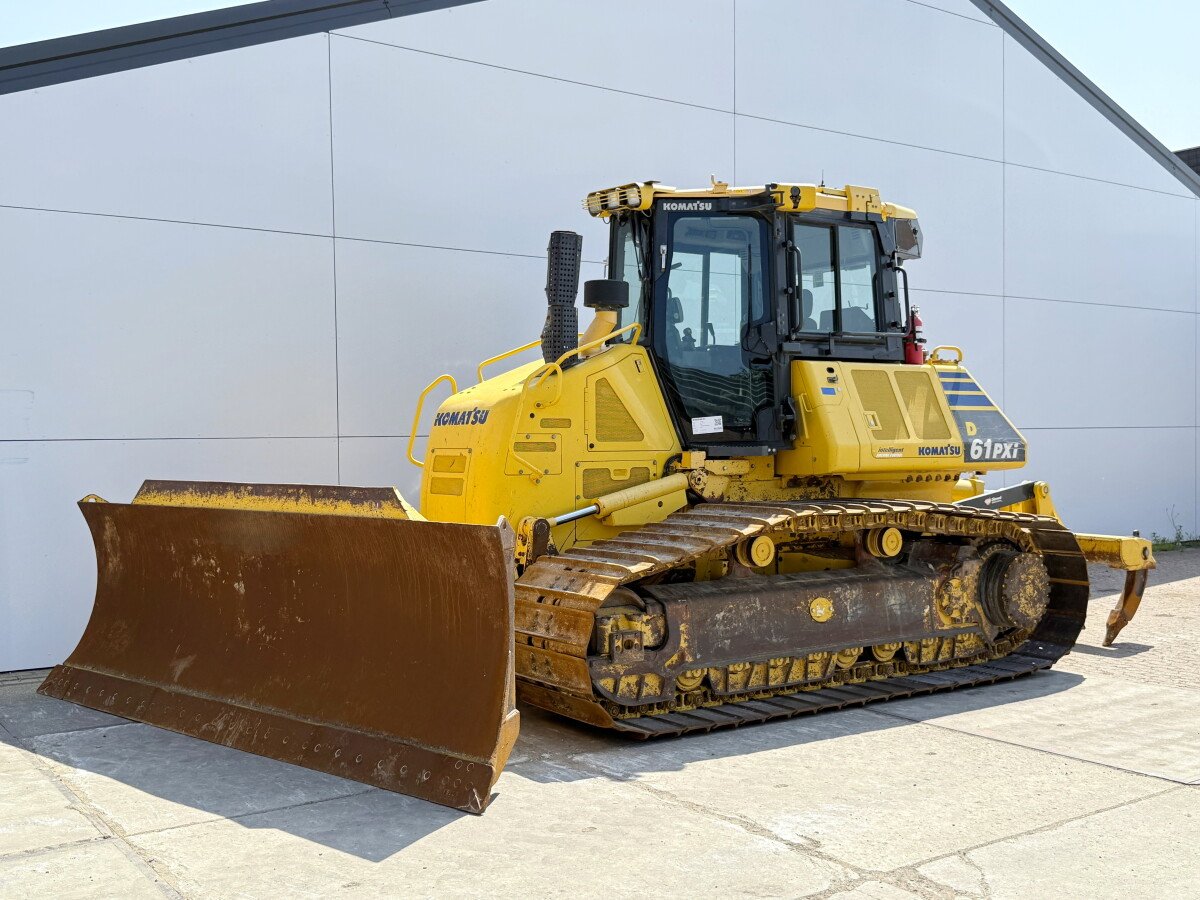

Komatsu D61PXi-24 Dozer

Komatsu D61PXi-24 – Intelligent Bulldozer

Available through Ekin Traktors

The Komatsu D61PXi-24 is a high-performance, intelligent dozer engineered for precision grading, site preparation, and large-scale earthmoving operations. Featuring Komatsu’s fully integrated intelligent Machine Control (iMC) 2.0, low ground pressure (PX) design, and a fuel-efficient Tier 4 Final engine, this mid-size crawler dozer combines raw pushing power with smart automation — increasing productivity and reducing operator input.

With a wide undercarriage for maximum flotation and a factory-integrated GPS grade control system, the D61PXi-24 is ideal for contractors, civil projects, road construction, and large commercial sites. Available now through Ekin Traktors.

---

Key Specifications

• Operating Weight: 20,500 – 21,800 Kg

• Engine Power: 168 kW / 225 HP @ 2,200 rpm

• Ground Pressure: Approx. 0.45 kg/cm²

• Blade Type: PAT (Power Angle Tilt)

• Blade Capacity: 4.5 m³ (semi-U)

• Transmission: Hydrostatic drive (HST)

• Intelligent Control: Komatsu iMC 2.0 with automatic blade control

• Emissions: EPA Tier 4 Final / EU Stage V compliant

---

Engine & Powertrain

• Engine: Komatsu SAA6D107E-3

• Fuel Type: Diesel

• Rated Power: 225 HP / 168 kW

• Displacement: 6.69 L

• Cooling System: Direct-drive, variable-speed fan

This fuel-efficient engine provides high torque at low RPM, optimized for heavy pushing and slope work. The automatic idle shutdown and economy mode reduce fuel consumption without sacrificing performance.

---

Hydraulics & Blade Control

• Blade Type: PAT (Power Angle Tilt)

• Blade Width: Approx. 3,960 mm

• Blade Height: Approx. 1,270 mm

• Blade Capacity: 4.5 m³

• Blade Control: Fully automated with iMC 2.0

• Lift/Tilt/Angle: Electro-hydraulic joystick

With intelligent blade control, the D61PXi-24 automatically adjusts blade position based on jobsite terrain, reducing passes and operator guesswork — resulting in faster, more accurate grading.

---

Undercarriage & Traction

• Track Type: Low Ground Pressure (PX)

• Track Gauge: 2,130 mm

• Shoe Width: 860 mm

• Track Length on Ground: 3,000 mm

• Ground Contact Area: 51,600 cm²

The wide track system improves stability and traction while minimizing ground pressure — ideal for soft ground, slope work, or finishing passes.

---

Cab & Operator Controls

• Cab Type: ROPS/FOPS pressurized cab

• Seat: Air suspension, heated, adjustable

• Controls: Palm Command Control System (PCCS) joysticks

• Display: 10″ touchscreen with 3D GPS and jobsite data

• Comfort Features: Climate control, Bluetooth radio, sunshade

The operator environment is designed for all-day productivity. The cab offers excellent visibility, reduced noise, and ergonomic controls that put blade, direction, and throttle functions at your fingertips.

---

Technology & Intelligence

• Grade Control: Komatsu iMC 2.0 (built-in, not aftermarket)

• Features Include:

  • Auto carry and auto blade tilt

  • Lift control with full load sensing

  • Tilt steering control

  • 3D terrain mapping and in-field design updates

• Data Interface: Komtrax telematics and Smart Construction integration

The D61PXi-24 improves jobsite efficiency with precision grade control that reduces need for stakes, surveyors, or rework.

---

Service Capacities

• Fuel Tank: 325 L

• Engine Oil: 24.5 L

• Hydraulic Oil: 100 L

• Cooling System: 44 L

• DEF Tank: 24 L

Komatsu’s centralized service access and extended intervals reduce downtime and simplify preventative maintenance.

---

Use Cases

• Large-scale grading and site prep

• Civil infrastructure and road building

• Landfills and environmental projects

• Commercial or industrial development

• Slope work and finish grading on soft terrain

---

Final Thoughts

The Komatsu D61PXi-24 blends brute strength with intelligent machine control, offering contractors a powerful dozer that cuts grade time, reduces operator input, and increases precision — straight from the factory. With low ground pressure tracks and full 3D GPS control integration, this dozer is ideal for modern earthmoving challenges. Available now from Ekin Traktors, it’s the perfect machine for teams who demand productivity, reliability, and smart technology in one rugged package.
