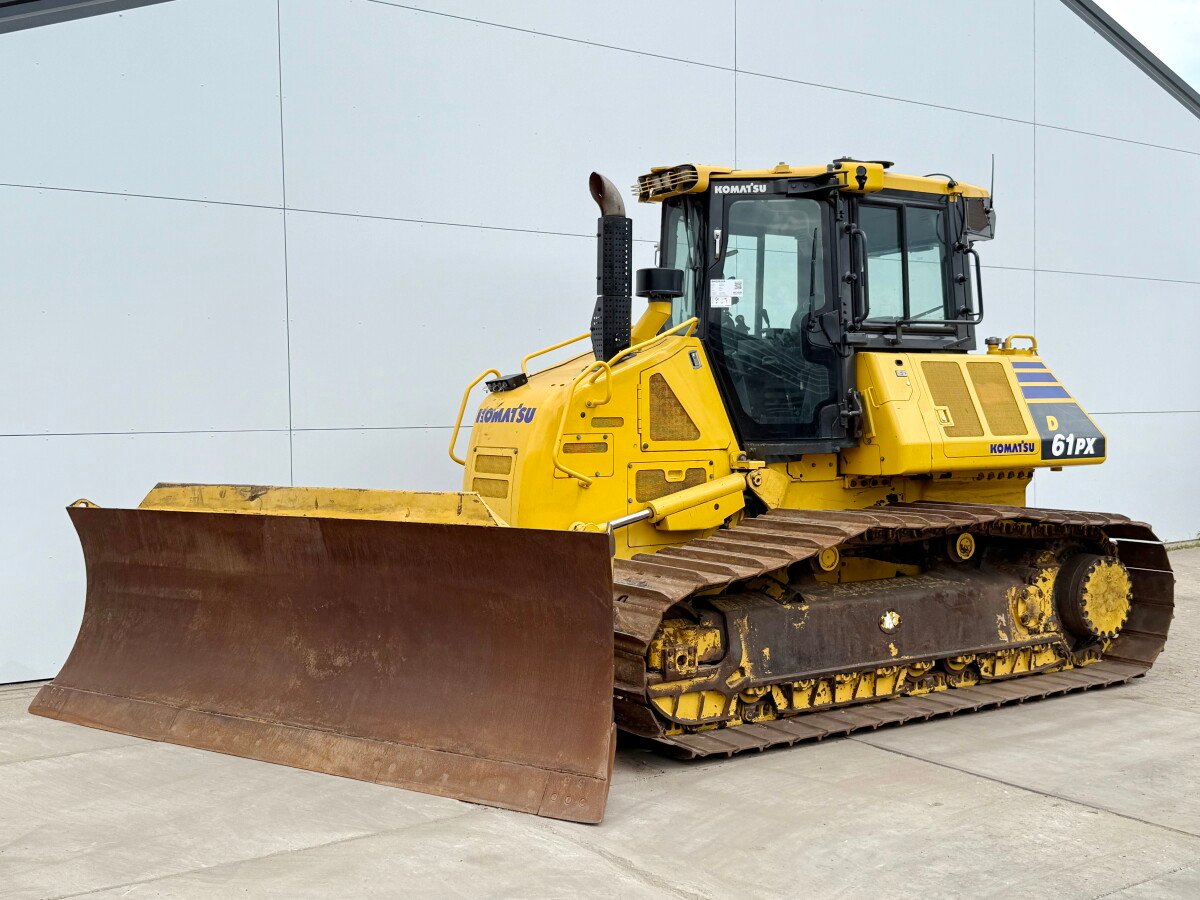

Komatsu D61PX-24 Dozer

Komatsu D61PX-24 – Crawler Dozer (Low Ground Pressure)

Available through Ekin Traktors

The Komatsu D61PX-24 is a powerful and versatile mid-size crawler dozer designed for precision grading and heavy-duty earthmoving. Featuring a low ground pressure (PX) configuration, this dozer provides excellent flotation on soft or uneven terrain, making it ideal for road construction, site prep, land clearing, and utility work.

Equipped with a Komatsu Tier 4 Final diesel engine, a high-capacity PAT blade, and advanced hydrostatic drive technology, the D61PX-24 delivers both pushing power and fine grading accuracy — now available from Ekin Traktors.

---

Key Specifications

• Operating Weight: 20,500 – 21,800 Kg

• Engine Power: 168 kW / 225 HP @ 2,200 rpm

• Ground Pressure: Approx. 0.45 kg/cm²

• Blade Type: Power Angle Tilt (PAT)

• Blade Capacity: 4.5 m³

• Transmission: Hydrostatic Transmission (HST)

• Emissions: EPA Tier 4 Final / EU Stage V compliant

---

Engine & Powertrain

• Engine: Komatsu SAA6D107E-3

• Fuel Type: Diesel

• Power Output: 225 HP / 168 kW

• Displacement: 6.69 L

• Cooling System: Direct-drive fan with variable speed

• Emission System: Diesel Particulate Filter (DPF) and Selective Catalytic Reduction (SCR)

This fuel-efficient engine delivers strong torque for pushing heavy loads while meeting the most stringent emissions standards. Economy mode and auto idle help reduce fuel consumption during light work or idling.

---

Blade & Hydraulics

• Blade Type: PAT (Power Angle Tilt)

• Blade Width: Approx. 3,960 mm

• Blade Height: Approx. 1,270 mm

• Blade Capacity: 4.5 m³

• Lift/Tilt/Angle Control: Electro-hydraulic joystick controls

The PAT blade provides outstanding flexibility for rough grading, backfilling, slope work, and finishing. It allows for quick angle and tilt adjustments without repositioning the machine.

---

Undercarriage & Traction

• Configuration: PX (Low Ground Pressure)

• Track Gauge: 2,130 mm

• Shoe Width: 860 mm

• Track on Ground: Approx. 3,000 mm

• Ground Contact Area: Approx. 51,600 cm²

With wide track shoes and an extended contact area, the D61PX-24 delivers excellent stability, minimal soil disturbance, and reduced sinkage in soft ground conditions.

---

Cab & Operator Controls

• Cab Type: Pressurized ROPS/FOPS cab

• Seat: Heated, air-suspension seat

• Controls: Komatsu Palm Command Control System (PCCS)

• Display: Multi-function color monitor

• Features: Auto decelerator, climate control, rearview camera

The operator environment is designed for comfort and productivity, with low cabin noise, ergonomic joystick controls, and wide visibility. Key operating data is available in real-time via the digital monitor.

---

Technology & Systems

• Grade Assist (Optional): Pre-installed harness for aftermarket GPS systems

• Auto Idle Shutdown: Standard

• Komtrax Telematics: Included, for fleet tracking and diagnostics

• Smart Construction Compatible: Yes

While not equipped with factory-integrated iMC like the PXi variant, the D61PX-24 supports external grade control systems and provides seamless digital jobsite integration through Komatsu’s Smart Construction platform.

---

Service Capacities

• Fuel Tank: 325 L

• DEF Tank: 24 L

• Engine Oil: 24.5 L

• Hydraulic Oil: 100 L

• Cooling System: 44 L

Routine maintenance is made simple with wide engine bay access, grouped service points, and advanced diagnostics. Long service intervals reduce downtime and ownership costs.

---

Use Cases

• Road and highway construction

• Residential and commercial site development

• Land reclamation and clearing

• Pipeline and utility trenching

• Environmental grading and erosion control

---

Final Thoughts

The Komatsu D61PX-24 Dozer blends power, precision, and versatility into one durable, operator-friendly machine. Its low ground pressure design makes it ideal for sensitive terrain, while the advanced hydrostatic transmission and PAT blade give operators the control needed for fine grading and heavy push tasks alike. Now available through Ekin Traktors, the D61PX-24 is ready to tackle your next big job with confidence and efficiency.
