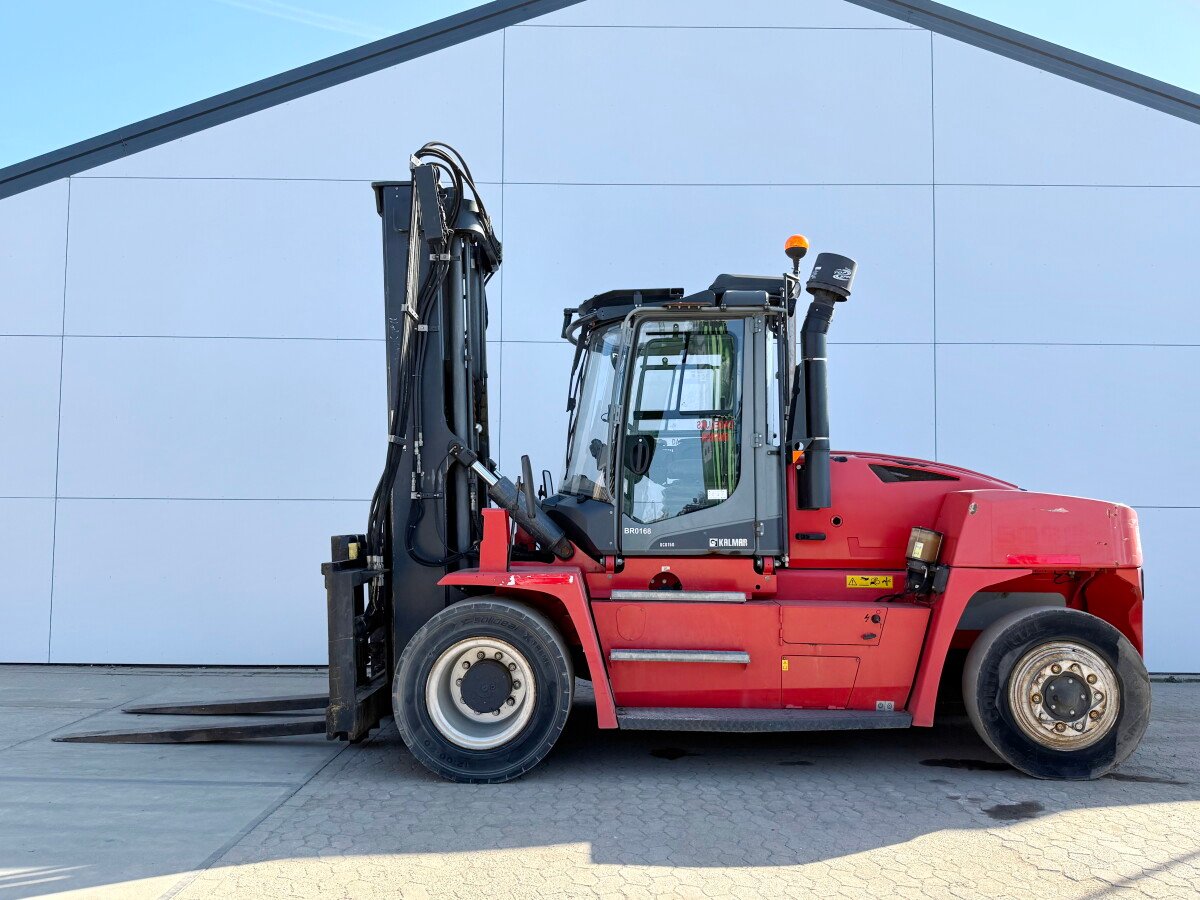

Kalmar DCG 150-6 Duplex Forklift

Kalmar DCG 150-6 Duplex Forklift

Available through Ekin Traktors

The Kalmar DCG 150-6 Duplex Forklift is a heavy-duty diesel-powered forklift built for demanding industrial operations that require exceptional lifting performance and durability. With a rated lifting capacity of 15,000 Kg, advanced control systems, and rugged construction, it is ideally suited for steel handling, ports, terminals, and large-scale logistics or manufacturing applications.

Equipped with a duplex mast for reinforced load control and visibility, the DCG 150-6 offers excellent operational efficiency and operator comfort — available now through Ekin Traktors.

---

Key Specifications

• Power Source: Diesel

• Load Capacity: 15,000 Kg

• Mast Type: Duplex

• Lift Height: 4,000 mm (Standard)

• Travel Speed (Loaded): Up to 27 km/h

• Turning Radius: Approx. 4,500 mm

• Transmission: Fully automatic powershift

• Tyres: Pneumatic or super-elastic (application dependent)

---

Engine & Powertrain

• Engine: Volvo TAD851VE Stage V (or equivalent industrial diesel engine)

• Fuel Type: Diesel

• Rated Output: Approx. 160 – 185 kW

• Drive System: Kalmar OptiDrive (automatic powertrain)

• Cooling: Heavy-duty liquid cooling system

The powerful and fuel-efficient diesel engine ensures high torque output and responsive acceleration, while complying with the latest emission standards. Kalmar’s OptiDrive system provides optimal traction control and reduced fuel consumption.

---

Mast & Lifting System

• Mast Type: Duplex (2-stage)

• Standard Lift Height: 4,000 mm

• Free Lift: 200 mm (approx.)

• Maximum Fork Height (Extended): Up to 4,000 mm

• Tilt Angle: 6° forward / 10° backward

• Fork Dimensions: 2,400 mm standard length (custom options available)

The high-capacity duplex mast delivers strength and stability for handling heavy, oversized loads — designed for performance and safety in tough work environments.

---

Dimensions & Weight

• Overall Length (Including Forks): Approx. 6,500 mm

• Width: 2,500 mm

• Height (Overhead Guard): 3,400 mm

• Wheelbase: 3,750 mm

• Ground Clearance: 300 mm

• Service Weight: Approx. 22,500 Kg

A robust frame, wide stance, and optimized center of gravity ensure superior load stability and operator confidence even under full load at maximum lift height.

---

Braking & Steering

• Braking System: Hydraulic wet-disc brakes (enclosed, oil-cooled)

• Steering: Fully hydraulic, load-sensing power steering

• Turning Radius (Outside): Approx. 4,500 mm

Kalmar’s steering and braking systems offer precise control and maximum safety during load maneuvering, making it ideal for busy terminals and industrial yards.

---

Tyres

• Front Tyres: 12.00-24

• Rear Tyres: 12.00-20

• Type: Pneumatic or super-elastic, based on use-case

High-load capacity tyres offer grip and cushioning for mixed surface conditions, with options for puncture-resistant solid variants in harsh environments.

---

Operator Cabin & Controls

• Cabin: Enclosed, climate-controlled cabin standard

• Seat: Fully adjustable air suspension seat

• Controls: Kalmar SmartDrive joystick control system

• Display: High-visibility color touchscreen with diagnostics

• Visibility: Wide-view mast and panoramic overhead guard

The premium operator station is designed for comfort and efficiency, reducing fatigue with intuitive controls, excellent all-around visibility, and integrated safety systems.

---

Service Capacities

• Fuel Tank: Approx. 300 Ltr diesel tank

• Engine Oil: Approx. 25 Ltr

• Hydraulic Oil: Approx. 160 Ltr

• Transmission Fluid: Approx. 40 Ltr

Accessible service points and long-interval maintenance cycles keep downtime to a minimum, ensuring long-term performance and reduced operating costs.

---

Use Cases

• Steel coils and slab handling

• Heavy machinery and oversized loads

• Port and container terminals

• Lumber and timber industries

• Manufacturing and fabrication yards

---

Final Thoughts

The Kalmar DCG 150-6 Duplex Forklift is purpose-built for industrial-scale material handling, offering unmatched strength, intelligent control, and operator-focused design. Whether you’re moving steel, handling containers, or operating in a high-throughput facility, this diesel-powered powerhouse delivers consistent performance and value. Proudly offered by Ekin Traktors, it stands as a benchmark in heavy-duty forklift solutions.
