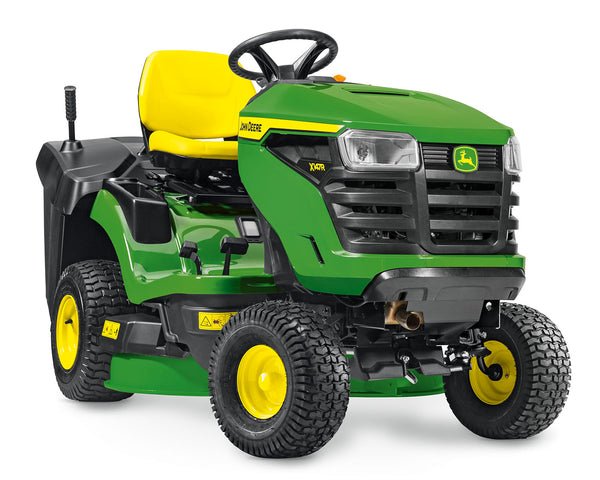

John Deere X147R Rear Collect 36″ Ride On Lawn Mower

John Deere X147R Rear Collect 36″ Ride-On Lawn Mower

Available through Ekin Traktors

The John Deere X147R is a high-quality rear-collect ride-on mower designed to deliver clean, professional cutting results with ease and comfort. With its 36″ (92 cm) twin-blade deck and a large 300-litre grass collector, this model offers outstanding performance for homeowners who want a manicured lawn without compromise.

Powered by a reliable V-Twin engine and controlled via John Deere’s intuitive Twin Touch™ hydrostatic pedals, the X147R combines durable engineering, comfortable operation, and excellent collection efficiency — now available from Ekin Traktors.

Key Specifications

Power Source: Petrol (4-stroke)
Engine Type: Briggs & Stratton Intek™ V-Twin OHV
Displacement: 656 cm³
Rated Output: Approx. 12.5 kW (16.7 hp)
Transmission: Hydrostatic (Tuff Torq®)
Drive Control: Twin Touch™ foot pedals
Cutting Deck Width: 36″ (92 cm)
Grass Collector Capacity: 300 L
Fuel Tank Capacity: 8.0 L

Engine & Powertrain

Engine Make: Briggs & Stratton 40N877 V-Twin Intek™
Cooling System: Air-cooled
Fuel Type: Unleaded petrol
Transmission Type: Hydrostatic rear-wheel drive
Speed (Forward/Reverse): Up to 8.9 km/h forward / 4.8 km/h reverse

The X147R’s robust V-Twin engine ensures smooth, quiet operation with excellent torque, while the hydrostatic transmission provides seamless speed adjustment — ideal for residential terrain with obstacles or slopes.

Cutting System

Mower Deck: 36″ (92 cm) twin-blade stamped steel deck
Blades: Dual rotary
Cutting Height Range: 25 – 89 mm (6 positions)
Deck Engagement: Manual lever-operated
Discharge Type: Rear discharge with integrated collector
Mulching Capability: Optional mulch kit available

The rear-discharge deck is designed for efficient clipping flow and excellent collection. For eco-friendly lawn care, a mulching kit can be added to recycle nutrients back into the turf.

Dimensions & Weight

Overall Length: Approx. 2,300 mm
Width (With Deck): Approx. 950 mm
Height (With Seat): Approx. 1,130 mm
Wheelbase: 1,240 mm
Weight: Approx. 240 kg

Compact in footprint and built with a strong chassis, the X147R is maneuverable in tighter spaces while maintaining excellent mowing stability and traction.

Steering & Handling

Steering Type: Manual (sector and pinion)
Turning Radius: 45 cm (tight circle)
Tyres (Front/Rear): 15×6.00-6 / 18×8.50-8
Seat: High-back comfort seat with spring suspension
Steering Wheel: Ergonomic, soft-grip 3-spoke design

The tight turning radius and ergonomic control layout allow for confident navigation around trees, garden beds, and borders with minimal trimming required afterward.

Operator Comfort & Controls

Seat: Tool-free adjustable, high-back with cushioning
Controls: Foot-operated Twin Touch™ pedals and lever deck control
Dashboard Display: Fuel gauge, hour meter, warning indicators
Deck Engagement: Manual
Collector Emptying: Spring-assisted rear dump system, operable from seat

With a comfort-oriented seat and intuitive operation, the X147R reduces fatigue and boosts productivity for operators of all experience levels.

Service Capacities

Fuel Tank: 8.0 L
Engine Oil: Approx. 1.9 L
Collector Volume: 300 L
Battery: 12V sealed, maintenance-free
Maintenance Access: Quick-lift hood for engine access

Designed for easy servicing and long-term durability, the X147R keeps maintenance simple and machine uptime high — even with regular seasonal use.

Use Cases

• Residential and estate lawns

• Garden maintenance with clean grass collection

• Lawns with trees, landscaping, and narrow paths

• Homeowners seeking a polished, bagged finish

• Optional mulching for sustainable lawn care

Final Thoughts

The John Deere X147R offers the perfect combination of premium mowing performance, smooth operation, and a pristine finish. Built for durability and operator comfort, it’s an ideal solution for homeowners who demand the reliability of a professional-grade mower in a compact, easy-to-use form. Available now through Ekin Traktors — trusted equipment, proven results.
