John Deere X117R Rear Collect 36″ Ride On Lawn Mower

John Deere X117R Rear Collect 36″ Ride-On Lawn Mower

Available through Ekin Traktors

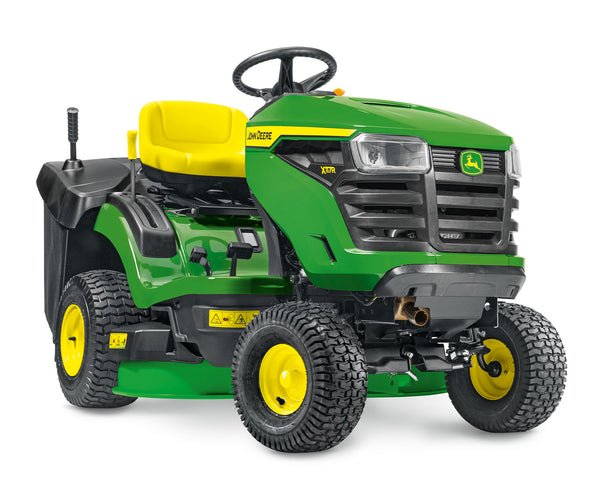

The John Deere X117R is a reliable and compact rear-collect ride-on lawn mower designed for homeowners who demand clean, precise results with minimal effort. Featuring a 36″ (92 cm) rear-discharge twin-blade deck and a spacious 300-litre grass collector, this model delivers a professional-grade finish for small to medium-sized lawns.

With a smooth hydrostatic transmission, intuitive foot pedal controls, and a powerful single-cylinder engine, the X117R combines ease of use with the rugged build quality expected from John Deere — now available from Ekin Traktors.

Key Specifications

Power Source: Petrol (4-stroke)
Engine Type: Briggs & Stratton PowerBuilt™ single-cylinder OHV
Displacement: 500 cm³
Rated Output: Approx. 8.9 kW (12 hp)
Transmission: Hydrostatic (Tuff Torq®)
Drive Control: Twin Touch™ foot pedals
Cutting Deck Width: 36″ (92 cm)
Grass Collector Capacity: 300 L
Fuel Tank Capacity: 6.5 L

Engine & Powertrain

Engine Make: Briggs & Stratton 31R907
Cooling System: Air-cooled
Fuel Type: Unleaded petrol
Transmission Type: Hydrostatic rear-wheel drive
Speed (Forward/Reverse): Up to 8.9 km/h forward / 4.8 km/h reverse

The X117R delivers smooth, consistent performance with a proven single-cylinder engine and reliable hydrostatic transmission — perfect for navigating gardens with curves, trees, and borders.

Cutting System

Mower Deck: 36″ (92 cm) twin-blade stamped steel deck
Blades: Dual rotary
Cutting Height Range: 25 – 89 mm (6-position adjustable)
Deck Engagement: Manual lever-operated
Discharge Type: Rear discharge with integrated collection
Mulching Capability: Optional mulch plug available

Designed for a clean finish, the rear-discharge system channels clippings directly into the collector, leaving a neat, streak-free cut ideal for formal lawns and residential gardens.

Dimensions & Weight

Overall Length: Approx. 2,310 mm
Width (With Deck): Approx. 950 mm
Height (With Seat): Approx. 1,120 mm
Wheelbase: 1,240 mm
Weight: Approx. 235 kg

Compact in size yet robust in build, the X117R fits easily through standard gates and into garden storage, offering superior maneuverability in tight or narrow spaces.

Steering & Handling

Steering Type: Manual (sector and pinion)
Turning Radius: 45 cm (tight circle)
Tyres (Front/Rear): 15×6.00-6 / 18×8.50-8
Seat: Adjustable high-back seat with springs
Steering Wheel: Ergonomic 3-spoke comfort grip

Its tight turning circle and ergonomic control layout make the X117R easy to steer around trees, flower beds, and landscaping features.

Operator Comfort & Controls

Seat: High-back, spring-suspended, tool-free adjustable
Controls: Foot-operated Twin Touch™ pedals
Dashboard Display: Fuel gauge, hour meter, system indicators
Deck Engagement: Manual lever
Collector Emptying: Spring-assisted dump lever (from seat)

Comfort-focused features ensure the operator stays relaxed and productive — even over longer mowing sessions or uneven ground.

Service Capacities

Fuel Tank: 6.5 L
Engine Oil: Approx. 1.4 L
Collector Volume: 300 L
Battery: 12V sealed, maintenance-free
Maintenance Access: Full-opening hood for easy servicing

Tool-free access to service points and a durable drivetrain keep ownership simple and running costs low.

Use Cases

• Residential lawn care and garden maintenance

• Tidy grass collection for clean-cut finishes

• Small estate or gated property mowing

• Noise-conscious mowing in suburban areas

• Tight-path or obstacle-rich lawn layouts

Final Thoughts

The John Deere X117R Ride-On Lawn Mower is the go-to choice for homeowners seeking compact performance, rear-collect convenience, and long-term reliability. Whether you’re trimming borders, cutting across flower-lined paths, or managing a small estate, the X117R delivers polished results with every pass. Now available through Ekin Traktors — trusted for quality, comfort, and precision in lawn care.
