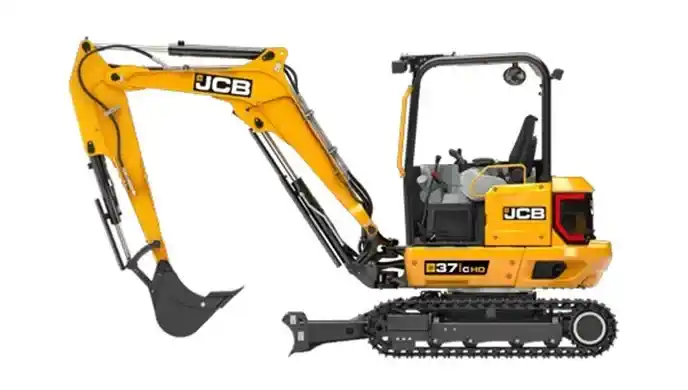

JCB 37C HD Excavator

The JCB 37C HD Excavator delivers exceptional power, precision, and durability in a compact size. Designed to excel in tight spaces while offering superior lifting and digging capabilities, the 37C HD is ideal for utility work, construction, landscaping, and urban excavation projects. Its advanced hydraulic system and reliable engine ensure efficient operation with reduced fuel consumption.

Key Specifications

• Engine Power: 25 HP

• Operating Weight: 4,052 Kg

• Bucket Capacity: 0.11 Cum

• Hydraulic Flow: 70 Lpm

• Maximum Digging Depth: 3,480 mm

• Lifting Capacity: 483 Kg

• Fuel Tank Capacity: 50 L

Engine

• Model: EPA Tier 4 Final Perkins 403J-17

• Net Power (ISO 9249 / ISO 14396): 25 HP

• Displacement: 1662 CC

• Engine Power: 25 HP

Powered by the efficient Perkins 403J-17 engine, the 37C HD combines reliable performance with compliance to Tier 4 Final emission standards, delivering smooth power for demanding operations.

Hydraulic System

• Main System Maximum Flow: 70 Lpm

• Total Hydraulic System Capacity: 47.5 L

• Hydraulic Tank Capacity: 28 L

The high-flow hydraulic system allows for faster cycle times, precise control, and better multitasking performance, enabling operators to complete jobs quicker and more accurately.

Swing Mechanism

• Swing Speed: N/A (Standard Fast Response)

• Counterweight Clearance: 563 mm

The compact swing radius and effective counterweight design make it highly maneuverable even in confined spaces, allowing maximum productivity in restricted job sites.

Working Ranges & Forces

• Maximum Digging Depth: 3,480 mm

• Bucket Capacity: 0.11 Cum

• Lifting Capacity: 483 Kg

• Tail Swing Radius: 1300 mm

With its extended digging depth and strong lifting capacity, the 37C HD can handle trenching, lifting, and digging operations with confidence and stability.

Dimensions & Weight

• Operating Weight: 4,052 Kg

• Shipping Height (Top of Cab): 2,450 mm

• Ground Clearance: 275 mm

• Track Length: 1,590 mm

• Track Gauge: 1,200 mm

• Fuel Tank Capacity: 50 L

• Service Refill Capacities:

  • Engine Oil: 6.2 L

  • Service Refill: 7 L

  • Hydraulic Tank: 28 L

Ideal Applications

• Utility & Pipeline Installations

• Urban Construction Sites

• Landscaping & Property Development

• Foundation Work

• Roadside & Municipal Projects

Why Choose JCB 37C HD?

• Compact & Powerful: High digging and lifting capacity in a small footprint.

• Fuel Efficient: Optimized engine performance with lower emissions.

• Durable Design: Built to handle heavy-duty tasks with long service life.

• Operator Comfort: Ergonomic cab with excellent visibility and controls.

• Precision Control: Smooth hydraulics for superior machine responsiveness.

Contact Ekin Traktors today to schedule a demo, request a price quote, or inquire about available stock for the JCB 37C HD Excavator.
