Hedge trimmer HS130HR – Becx Machines

Hedge Trimmer HS130HR

Available through Becx Machines

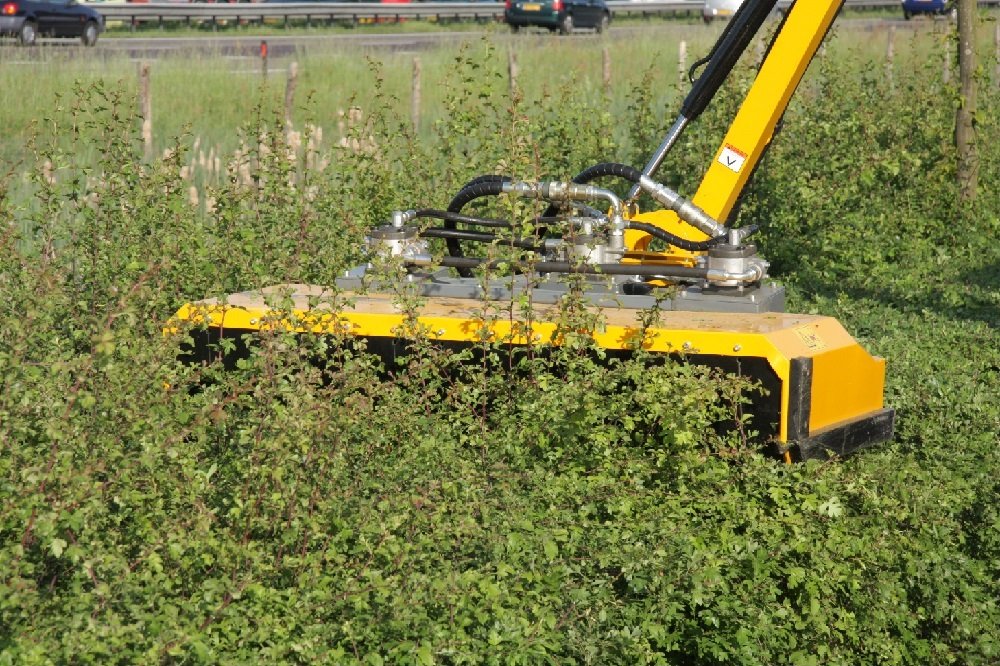

The Becx HS130HR is a high-performance hydraulic hedge trimmer engineered for fast, efficient, and low-maintenance operation. As one of Becx Machines’ flagship models, the HS130HR combines a patented double-blade system with a sealed housing to achieve clean, one-pass trimming while finely mulching clippings back into the hedge. Ideal for professional use in landscaping, public works, and agricultural maintenance, this model is designed to handle thick vegetation with minimal debris dispersal.

---

Key Specifications

• Power Source: Hydraulic (hydro-motor driven)

• Working Width: 1,300 mm

• Cutting Capacity: Up to 25 mm branch diameter (depending on setup)

• Max Blade Speed: Up to 2,500 RPM

• Weight: Approx. 134 Kg

• Mounting Sleeve: 80 × 80 mm standard

• Hydraulic Oil Flow Requirement: Approx. 30 L/min (11 cc motor) or 45 L/min (16 cc motor option)

• Operating Pressure: Around 180 bar (up to 250 bar depending on configuration)

• Dimensions (L × W × H): Approx. 1170 mm × 1330 mm × 480 mm

---

Drive & Powertrain

• Hydraulic System: Direct-drive hydro-motor eliminates belts and chains for maximum reliability

• Oil Flow Compatibility: Operates effectively at ~30 L/min with standard motor; high-capacity version available for ~45 L/min

• Pressure Rating: Designed for consistent performance around 180 bar, up to a maximum of 250 bar

• Optional Flow Regulator: Available for optimized hydraulic performance across various carriers

Built for simplicity and durability, the HS130HR’s hydrostatic design ensures consistent cutting power while reducing mechanical wear points.

---

Cutting System & Efficiency

• Blade System: Patented dual-blade cutting mechanism

• Mulching Action: Fine cuts are deposited directly back into the hedge, reducing cleanup

• Working Width: 1,300 mm for broad, efficient trimming passes

• Enclosed Housing: Controls discharge and improves operator safety

This system allows for high-speed hedge trimming in one pass, even in dense, woody growth — ideal for fast-paced municipal or commercial operations.

---

Dimensions & Weight

• Overall Width: 1,330 mm

• Length: Approx. 1,170 mm

• Height: Approx. 480 mm

• Weight: Approx. 134 Kg

• Mounting Sleeve: 80 × 80 mm for quick attachment on standard mowing arms

Compact yet robust, the HS130HR is optimized for maneuverability and strength, making it suitable for carriers of various sizes.

---

Safety & Operation

• Casing: Fully enclosed steel body enhances operator protection

• Debris Control: Minimal external discharge thanks to mulching system

• Noise Output: Low-noise operation due to absence of mechanical transmission components

• Ease of Use: Minimal setup and simplified operation for daily field work

The HS130HR is designed for all-day operation with a focus on safety, quiet running, and low operator fatigue.

---

Mounting & Compatibility

• Fixing Sleeve: Standard 80 × 80 mm

• Compatible Equipment: Mowing arms, compact carriers, and municipal maintenance vehicles

• Flexible Integration: Can be mounted and configured for use across various hydraulic systems

The HS130HR is engineered for plug-and-play use with common landscape and roadside maintenance equipment, offering easy installation and reliable performance.

---

Use Cases

• Municipal roadside hedge maintenance

• Agricultural field and orchard trimming

• Large estate and green space care

• Utility and fencing corridor management

• Commercial landscaping with minimal cleanup needs

---

Final Thoughts

The Becx HS130HR Hedge Trimmer is a proven, professional solution for high-volume hedge cutting with precision and efficiency. Its enclosed dual-blade design delivers clean results while significantly reducing the need for post-operation cleanup. With its hydraulic simplicity, safety-first construction, and durable build, the HS130HR remains a trusted asset for contractors and municipalities seeking performance and reliability in their vegetation management fleet.
