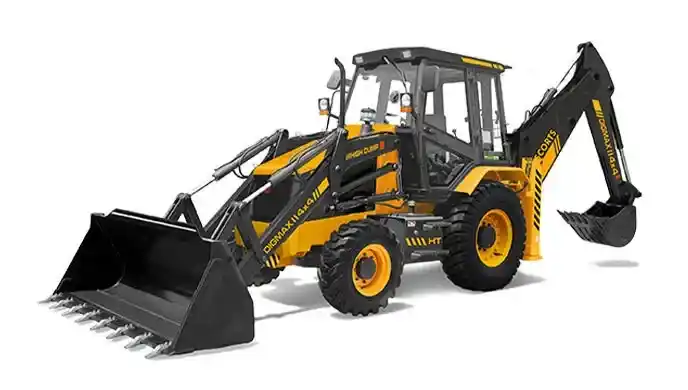

ESCORTS Digmax II 4WD Backhoe Loader

ESCORTS Digmax II 4WD Backhoe Loader

Introduction

Built for demanding jobs across varied terrains, the ESCORTS Digmax II 4WD Backhoe Loader combines a fuel-efficient 75 HP engine with responsive hydraulics and rugged durability. With 4WD functionality, heavy-duty axles, and precision-balanced performance across both loader and backhoe operations, this machine is engineered for reliability in construction, agriculture, and infrastructure applications. Its modern BS-IV compliant engine and axial piston pump system enable consistent performance under continuous load, while the operator-focused cabin and intuitive controls improve onsite efficiency.

---

Key Specifications

---

Engine & Powertrain

• Engine Model: 4R1190NA

• Emission Compliance: BS-IV

• Power Output: 75 HP

• Torque: 400 Nm

• Air Intake: Water Cooled

• Transmission Type: Synchro shift reversing shuttle

• Front Axle: Drive and steer axle with ±12° oscillation

• Rear Axle: Rigidly mounted to chassis

• Drive Mode: 4WD

---

Hydraulic System

• Pump Type: Axial Piston Pump

• Pump Flow Rate: 117 lpm

• System Relief Pressure: 225 Bar

• Hydraulic Oil Capacity: 110 Ltr

• Control Type: Power-assisted with proportional flow

---

Loader Performance

• Bucket Capacity (Std.): 1.2 Cum

• Dump Height: 3000 mm

• Max Load Over Height: 3510 mm

• Hinge Pin Height: 3700 mm

• Hinge Pin Forward Reach: 430 mm

• Reach at Ground: 1570 mm

• Bucket Breakout Force: 6425 Kgf

• Loader Arm Breakout Force: 5777 Kgf

• Rollback at Ground: 45°

• Dump Angle: 45°

• Max Pay Load: 1980 Kg

---

Backhoe Capabilities

• Max Dig Depth: 4800 mm

• Reach (Ground Level to Rear Wheel Center): 6970 mm

• Reach at Full Height to Slew Center: 2230 mm

• Max Working Height: 6300 mm

• Max Load Over Height: 4390 mm

• Bucket Rotation: 187°

• Dipper Tearout Force: 3250 Kgf

---

Dimensions & Weight

• Transport Length: 6280 mm

• Width Over Bucket: 2380 mm

• Rear Track Width: 1750 mm

• Front Track Width: 1870 mm

• Wheelbase: 2140 mm

• Ground Clearance: 350 mm

• Height to Cabin Top: 2880 mm

---

Service Capacities

• Engine Oil: 11.5 Ltr

• Rear Axle Oil: 17.1 Ltr

• Transmission Oil: 16.5 Ltr

• Coolant: 15 Ltr

• Fuel Tank: 134 Ltr

---

Braking & Steering

• Service Brakes: Hydraulically actuated, self-adjusting, oil-immersed multi-disc brakes (rear axle)

• Parking Brake: Hand-operated caliper disc

• Steering: Hydrostatic power steering

• System Pressure: 120 Bar

---

Tyres

• Standard Front Tyre: 9.00 x 16 – 16 PR

• Standard Rear Tyre: 16.9 x 28 – 12 PR

• HD Rear Tyre (Optional): 14 x 25 – 20 PR

---

Travel Speeds

---

Applications & Use Cases

The ESCORTS Digmax II 4WD Backhoe Loader is a reliable choice across multiple sectors:

• Urban & Rural Construction: Ideal for trenching, digging foundations, and light excavation in confined zones.

• Infrastructure Development: Widely used for roadside digging, drainage laying, and utility trenching.

• Agricultural Sector: Suitable for pit digging, field leveling, and loading/unloading in rural farm projects.

• Rental Fleets & Contractors: High ROI due to fuel-efficient operation and robust build—preferred by contractors for daily usage and hire-based operations.
