ESCORTS Digmax II

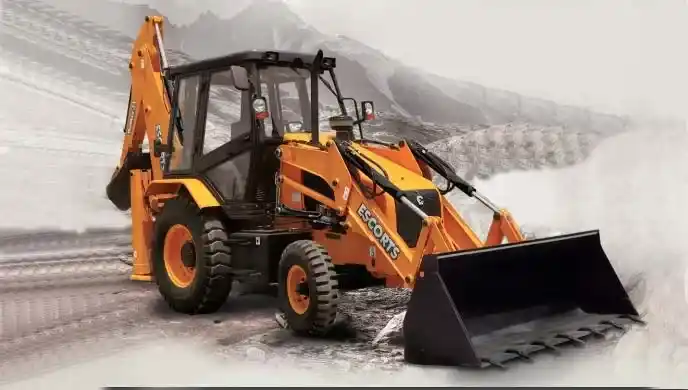

ESCORTS Digmax II Backhoe Loader – Power Meets Precision in Every Operation

The ESCORTS Digmax II is a rugged, performance-driven backhoe loader engineered to handle intensive digging, lifting, and loading applications with ease. Built with a powerful engine, advanced hydraulics, and superior reach capabilities, this machine is tailored for high-demand construction, infrastructure, and agricultural tasks.

---

Engine & Performance

The Digmax II is powered by a high-torque, fuel-efficient engine that meets BS-IV emission standards—offering consistent power delivery and operational economy across various terrains.

• Engine Model: 4R1190NA

• Emission Standard: BS-IV

• Gross Power: 75 HP

• Maximum Torque: 300 Nm

Perfectly balanced for performance and fuel savings, the Digmax II offers dependable power for long-duty cycles.

---

Hydraulic System – Reliable, Smooth, and High-Capacity

Built for precise and responsive control, the Digmax II’s open-centre hydraulic system ensures faster loading cycles and smoother digging actions.

• System Type: Open Centre

• Pump Type: Tandem Gear Pump

• Pump Flow: 117.5 LPM

• System Relief Pressure: 225 Bar

• Hydraulic Oil Capacity (System): 80 L

• Hydraulic Oil Replacement: 110 L

Delivers ample flow and pressure for demanding applications, with optimal efficiency and durability.

---

Loader Capabilities – Heavy Duty, High Reach

The front loader on the Digmax II combines a robust bucket capacity with strong lifting force and superior dump clearance—ideal for bulk handling and truck loading.

• Loader Bucket Capacity (Standard): 1.2 m³

• Dump Height: 3,000 mm

• Load Over Height: 3,510 mm

• Hinge Pin Height: 3,700 mm

• Hinge Pin Forward Reach: 430 mm

• Reach at Ground: 1,570 mm

• Rollback at Ground: 45°

• Dump Angle: 45°

• Max Reach at Full Height: 1,220 mm

• Max Lift Capacity: 1,980 kg

Built for speed, volume, and strength in loader operations.

---

Backhoe Performance – Deep Digging with Maximum Control

Engineered for versatility and digging power, the Digmax II backhoe delivers extended reach, deep trenching capability, and high breakout forces.

• Maximum Dig Depth: 4,800 mm

• Reach (Ground Level to Rear Wheel Center): 6,970 mm

• Reach at Full Height to Slew Center: 2,230 mm

• Max Load Over Height: 4,390 mm

• Max Working Height: 6,220 mm

• Bucket Rotation: 187°

• Dipper Tear Out Force: 3,250 kgf

• Backhoe Bucket Capacity: 0.26 m³

• Max Lift Capacity: 1,980 kg

An ideal companion for deep excavations, pit work, and trenching in tight spaces.

---

Dimensions & Weight

Compact yet heavy-duty, the Digmax II is well-suited for hauling, transport, and operation across rugged or urban environments.

• Max Operating Weight: 8,190 kg

• Transport Length: 6,280 mm

• Width Over Bucket: 2,380 mm

• Track Width (Rear): 1,750 mm

• Track Width (Front): 1,870 mm

• Wheelbase: 2,140 mm

• Ground Clearance: 350 mm

• Height to Top of Cabin: 2,880 mm

Smartly designed for both strength and agility across job types.

---

Power Train & Axles

The Digmax II is equipped with a reliable transmission system and solid axle construction for superior traction, stability, and drivetrain durability.

• Transmission Type: Synchro Shift Reversing Shuttle

• Rear Axle: Rigidly Mounted

• Front Axle: Steer Axle with ±16° Oscillation

This drivetrain layout ensures optimal handling even in uneven or unpredictable terrain.

---

Steering & Braking

Precise hydrostatic steering and responsive braking systems provide maximum operator control and on-site safety.

• Steering Type: Hydrostatic Power Steering

• Steering System Pressure: 120 Bar

• Service Brakes: Hydraulically Actuated Dual Line, Oil-Immersed Multi Disc (Rear Axle)

• Parking Brake: Hand-Operated Caliper Disc Brake

Built for smooth handling and strong stopping power in all working conditions.

---

Tyres

Fitted with high-durability tyres designed for stability and load support:

• Standard Tyres (Front): 9.00 x 16 – 16PR

• Standard Tyres (Rear): 16.9 x 28 – 12PR

• Optional Rear Tyres (HD): 14 x 25 – 20PR

Adaptable to standard and heavy-duty terrain challenges.

---

Service Capacities

• Engine Oil Capacity: 11.5 L

• Transmission Oil Capacity: 16.5 L

• Rear Axle Oil: 17.1 L

• Coolant Capacity: 15 L

• Fuel Tank Capacity: 134 L

Well-sized reservoirs ensure extended uptime and reduce service intervals on-site.

---

Travel Speed

Offers flexible movement for on-road and on-site applications:

• Forward Speeds: 5.3 / 8.5 / 18.5 / 36.6 km/h

• Reverse Speeds: 4.6 / 7.0 km/h (Higher reverse speeds not recommended)

Efficient mobility combined with controlled maneuvering for safe operations.

---

Applications

The ESCORTS Digmax II is built for:

• Infrastructure and road development

• Utility trenching and earthworks

• Agricultural loading and excavation

• Industrial material handling

A dependable performer for contractors and municipalities needing maximum value and operational strength.
