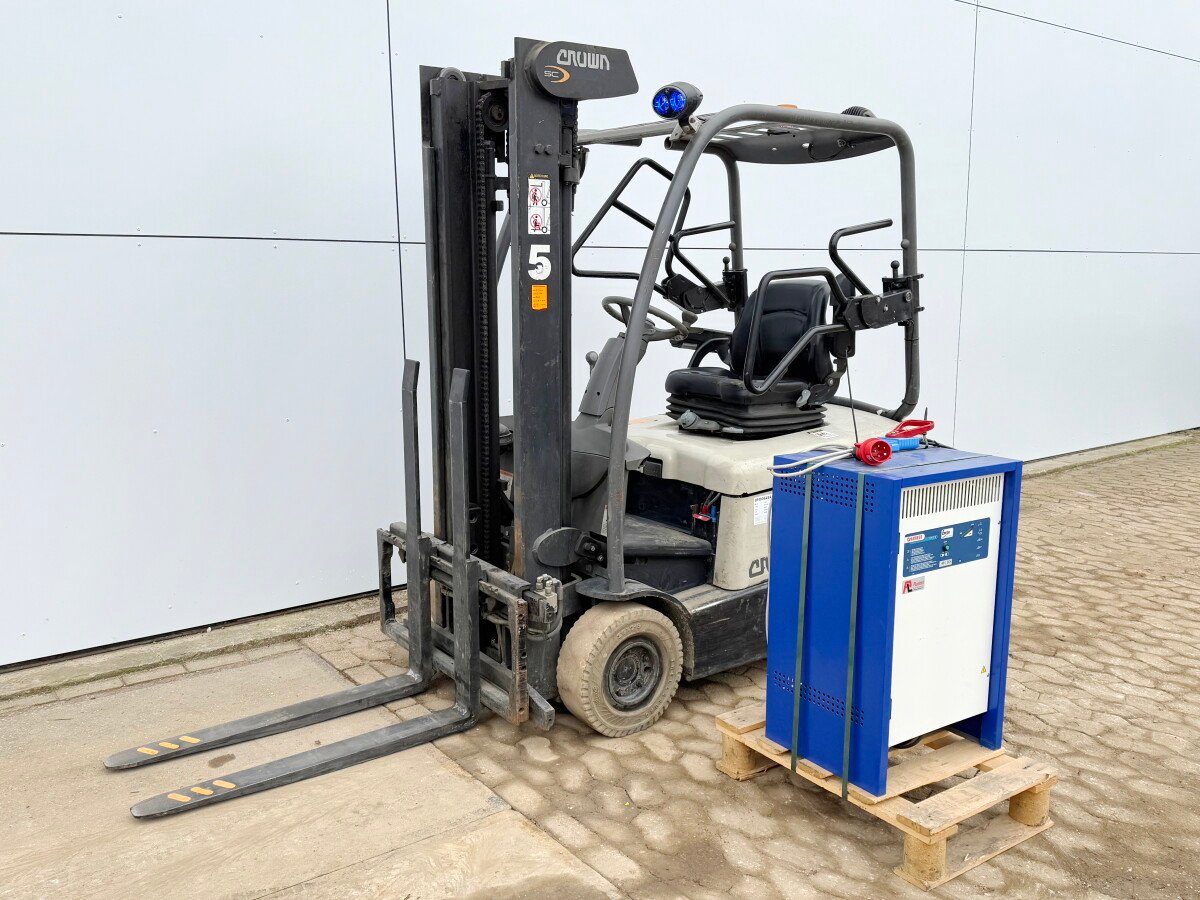

Crown SC4240-1.6 – Full Electric Forklift

Crown SC4240-1.6 – Full Electric Forklift

Available through Ekin Traktors

The Crown SC4240-1.6 Full Electric Forklift is a compact, zero-emissions counterbalance forklift built for agility, control, and efficiency in high-demand warehouse and logistics environments. With a 1,600 Kg load capacity, three-wheel design, and intelligent electric drive system, it’s ideal for tight indoor spaces where precision, low noise, and sustainability are top priorities.

Powered entirely by electric energy, the SC4240-1.6 delivers quiet performance and advanced ergonomics  all backed by Crown’s reputation for innovation and now available through Ekin Traktors.

---

Key Specifications

• Power Source: Electric (Battery-powered)

• Load Capacity: 1,600 Kg

• Mast Type: Duplex

• Lift Height: 4,800 mm (Standard)

• Travel Speed (Loaded): Up to 15 km/h

• Turning Radius: Approx. 1,600 mm

• Transmission: AC Electric Drive System

• Tyres: Cushion or solid rubber (non-marking options available)

---

Motor & Powertrain

• Motor Type: AC drive motor with regenerative braking

• Battery: 48V industrial lead-acid or lithium-ion (options available)

• Rated Output: Approx. 7.5 – 10 kW

• Charging System: External or onboard smart charger

• Cooling: Passive cooling (no liquid system required)

The Crown SC4240-1.6 uses a high-efficiency electric motor system that delivers consistent torque and minimal energy loss, while regenerative braking extends battery life and enhances energy recovery during deceleration.

---

Mast & Lifting System

• Mast Type: Duplex (2-stage)

• Standard Lift Height: 4,800 mm

• Free Lift: 1,500 mm (approx.)

• Maximum Fork Height (Extended): 4,800 mm

• Tilt Angle: 5° forward / 7° backward

• Fork Dimensions: 1,100 mm standard length (custom sizes available)

The high-visibility duplex mast ensures a clear line of sight, stable lifting, and safe stacking in high-rack environments.

---

Dimensions & Weight

• Overall Length (Including Forks): Approx. 3,250 mm

• Width: 1,080 mm

• Height (Overhead Guard): 2,050 mm

• Wheelbase: 1,280 mm

• Ground Clearance: 90 mm

• Service Weight: Approx. 3,300 Kg (with battery)

Its compact chassis and tight turning radius allow the SC4240-1.6 to operate efficiently in narrow aisles and confined indoor spaces.

---

Braking & Steering

• Braking System: Regenerative braking with automatic parking brake

• Steering: Electric power steering

• Turning Radius (Outside): Approx. 1,600 mm

Smooth and responsive controls allow for precise handling. Crown’s intelligent steering system adjusts to speed and load for safer navigation in high-density warehouse layouts.

---

Tyres

• Front Tyres: 18×7-8

• Rear Tyres: 15×4.5-8

• Type: Cushion or solid rubber (non-marking for indoor use)

Designed for polished concrete or warehouse floors, the tyres offer long life, high traction, and minimal wear — essential for indoor electric operations.

---

Operator Cabin & Controls

• Cabin: Open seat design (optional cab available)

• Seat: Ergonomic suspension seat with seatbelt

• Controls: Crown fingertip hydraulic controls or multi-function joystick

• Display: InfoPoint digital diagnostics and performance display

• Visibility: Low-profile dashboard and clear-view mast

The operator station is compact but highly ergonomic, providing effortless control, real-time system feedback, and exceptional visibility in all directions.

---

Service Capacities

• Battery Capacity: Up to 775 Ah (depending on configuration)

• Hydraulic Oil: Approx. 25 Ltr

• Charger Type: External 48V high-frequency smart charger

With fewer moving parts and advanced diagnostics, the SC4240-1.6 requires minimal maintenance and delivers low total cost of ownership over its lifespan.

---

Use Cases

• High-density indoor warehouses

• Retail distribution centers

• Cold storage and food-grade facilities

• Manufacturing and light industrial plants

• Quiet or emissions-restricted zones

---

Final Thoughts

The Crown SC4240-1.6 Full Electric Forklift is the go to solution for modern indoor material handling. Designed for sustainability, maneuverability, and safety, it brings high-performance features in a compact, user-friendly form. Ideal for operations where emissions, space, and precision matter most  available now through Ekin Traktors.
