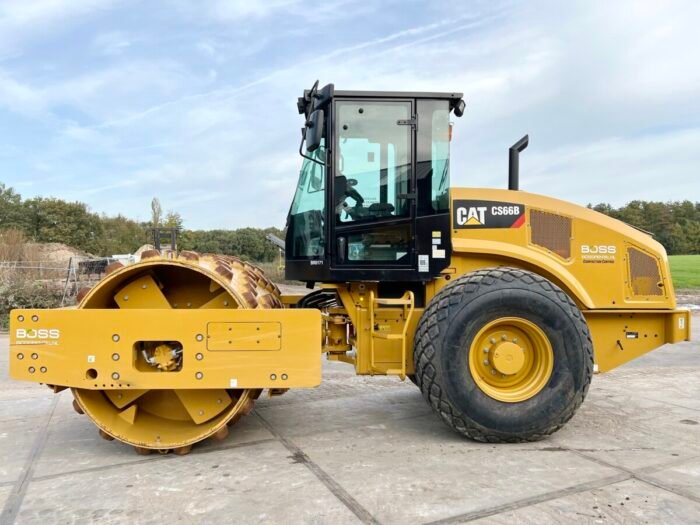

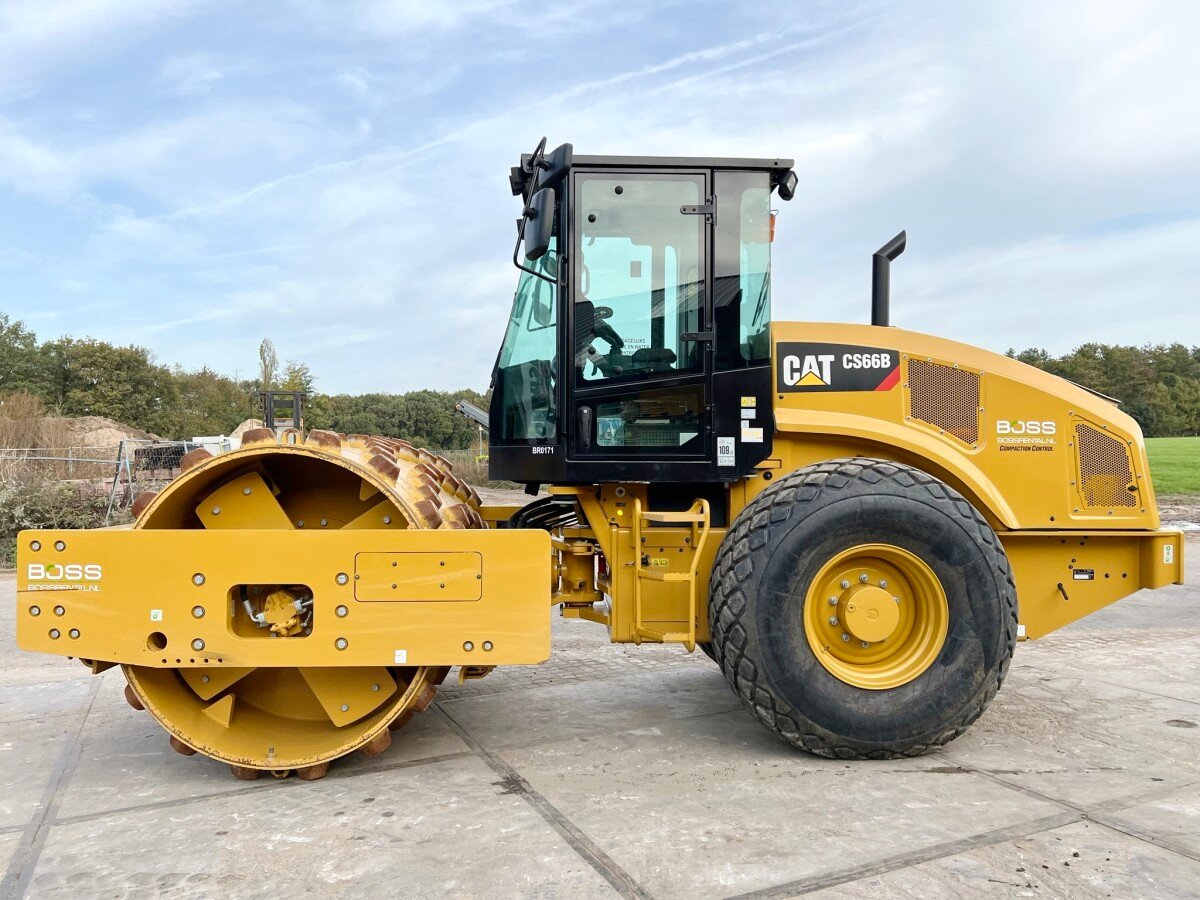

Caterpillar CS66B Roller

Caterpillar CS66B Vibratory Soil Compactor
Available through Ekin Traktors

The Caterpillar CS66B is a premium single-drum vibratory roller designed to deliver maximum compaction performance, fuel efficiency, and operator comfort. Built to handle the toughest soil and sub-base compaction jobs, this German-built machine is equipped with intelligent technology, durable construction, and a reliable powertrain — now offered by Ekin Traktors.

Ideal for road construction, infrastructure development, and large-scale earthworks, the CS66B ensures superior density, productivity, and compaction quality across a wide range of materials and job site conditions.

---

Key Specifications

• Operating Weight: Approx. 12,000 Kg

• Drum Width: 2,134 mm

• Centrifugal Force: Up to 266 kN

• Vibration Frequency: 30–33.3 Hz

• Amplitude: High – 1.9 mm / Low – 0.95 mm

• Engine Model: Cat® C4.4 ACERT™

• Gross Power: 157 HP (117 kW)

• Fuel Capacity: Approx. 254 Liters

• Drive Type: Rear-wheel drive

• Gradeability: Up to 55% (with vibration)

---

Engine & Powertrain

The CS66B is powered by the Cat C4.4 ACERT™ engine, delivering high torque and efficiency with reduced emissions, compliant with EU Stage IV and U.S. EPA Tier 4 Final standards. The engine is paired with an electronically controlled propulsion system that ensures responsive acceleration and efficient fuel use — even on inclines or heavy lifts.

• Cooling: Advanced liquid-cooled system with variable-speed fan

• Fuel Type: Diesel

• Max Travel Speed: Up to 12 km/h

• Traction Control: Optional Automatic Traction Control (ATC)

---

Vibratory System & Drum Technology

Engineered for maximum impact energy transfer, the CS66B features a smooth single drum with dual amplitude and variable frequency capabilities — allowing it to adapt to various soil types and compaction requirements with ease.

• Drum Type: Smooth steel drum (padfoot shell kit optional)

• Amplitude Settings: Dual (High/Low)

• Vibration System: Eccentric weight technology

• Compaction Meter: Optional Cat Compaction Control with Machine Drive Power (MDP)

---

Chassis & Traction

The roller’s heavy-duty chassis and balanced weight distribution allow for stable operation across uneven terrain. With excellent ground clearance and traction, the CS66B can tackle slopes, curves, and tough terrain without compromising compaction quality.

• Frame Design: Articulated with pivot steering

• Rear Axle: Heavy-duty planetary drive

• Brakes: Multi-disc, sealed, oil-cooled

• Turning Radius (Inside): Approx. 3.9 m

---

Cabin & Operator Comfort

The operator environment is built for control and comfort during long shifts. With ergonomic controls, adjustable seating, and optional climate control, the CS66B minimizes fatigue while improving job site safety and precision.

• Cab Options: Open ROPS or enclosed pressurized cab (AC/heating available)

• Seat: Adjustable suspension seat with seat belt

• Controls: Electronic joystick propulsion and vibration controls

• Display: LCD panel with diagnostics and machine status

• Visibility: 360° clear view with rear-view camera (optional)

---

Technology Integration

The CS66B is compatible with advanced compaction technologies such as Cat Compaction Control, GPS mapping, and Machine Drive Power (MDP) — helping operators achieve uniform compaction, reduce passes, and validate results in real-time.

• MDP System: Measures soil stiffness, not just surface deflection

• Mapping: Optional GPS-based coverage and pass count tracking

• Diagnostics: Onboard alert and maintenance tracking system

---

Service & Maintenance

With centralized service points, long-life components, and intuitive diagnostics, the CS66B is built to minimize downtime and reduce total cost of ownership — an ideal asset for high-utilization fleets.

• Hydraulic Oil Capacity: Approx. 80 Liters

• Engine Oil Capacity: Approx. 13.2 Liters

• Maintenance Access: Ground-level with grouped service ports

• Filter Intervals: Extended for lower lifecycle cost

---

Use Cases

• Highway and road base compaction

• Airport runway foundation prep

• Earth embankments and dams

• Subgrade stabilization

• Landfill and reclamation work

---

Final Thoughts

The Caterpillar CS66B Roller, available through Ekin Traktors, brings together cutting-edge compaction technology, fuel-efficient performance, and rugged dependability in a single machine. Whether you’re preparing a critical highway sub-base or stabilizing reclaimed land, the CS66B delivers the density, control, and coverage your projects demand — backed by Caterpillar engineering and Ekin Traktors’ trusted service network.
