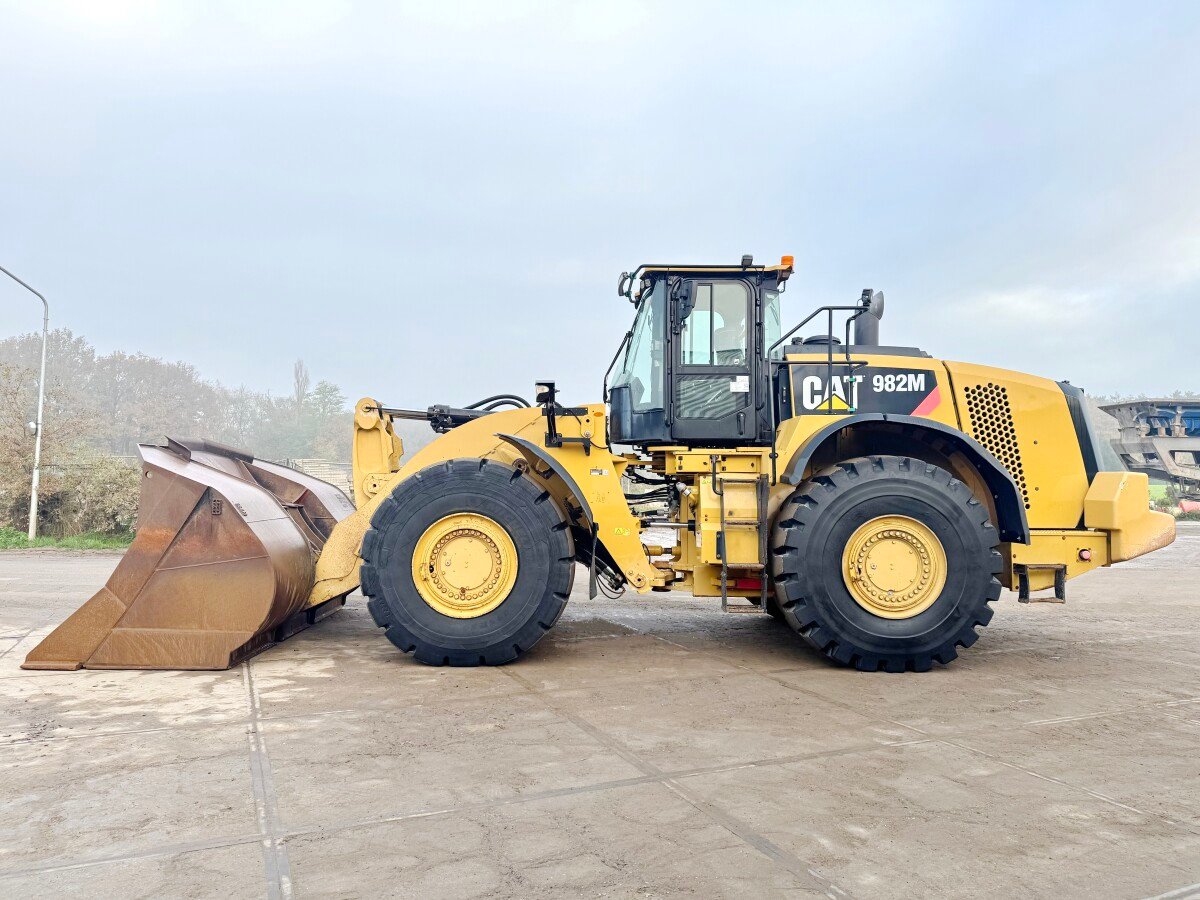

Caterpillar 982M Wheel Loader

Caterpillar 982M Wheel Loader

Available through Ekin Traktors

The Caterpillar 982M is a high-production, heavy-duty wheel loader designed to handle the toughest bulk material handling and loading operations. Positioned at the top end of Cat’s M-Series lineup, the 982M combines powerful digging performance, advanced fuel efficiency technologies, and industry-leading operator comfort to deliver exceptional productivity in rehandling, aggregates, quarry, and industrial applications.

With its powerful Cat® C13 ACERT™ engine and efficient hydraulics, the 982M provides the lift capacity, speed, and durability needed for high-output operations, day in and day out.

---

Key Specifications

• Power Source: Diesel

• Operating Weight: Approx. 35,000 – 36,000 Kg

• Bucket Capacity: 5.0 – 10.0 m³ (depending on application)

• Static Tipping Load (Straight): Approx. 26,000 Kg

• Max Travel Speed: Up to 39 km/h

• Transmission: Cat 5-speed automatic powershift with lock-up torque converter

---

Engine & Powertrain

• Engine: Cat C13 ACERT™, 6-cylinder turbocharged diesel (Tier 4 Final / EU Stage IV compliant)

• Rated Output: Approx. 308 kW (413 HP)

• Max Torque: Over 2,000 Nm

• Cooling System: Hydraulic demand fan with automatic reversing option

• Transmission: Intelligent Cat powershift with lock-up clutch for reduced fuel use

• Axles: Heavy-duty planetary axles with optional limited-slip or locking differentials

The 982M’s high-efficiency powertrain is engineered to reduce fuel burn while maintaining strong tractive effort and reliable performance under heavy loads.

---

Loading System

• Linkage Type: Optimized Z-bar linkage

• Hinge Pin Height: Approx. 4,600 mm

• Dump Clearance at Max Lift: Approx. 3,400 mm

• Breakout Force: Approx. 270 kN

• Attachments: Rock, rehandling, coal, high-dump, grapple, and fork options with Cat quick coupler compatibility

The Z-bar linkage offers strong breakout performance, fast load cycles, and excellent control — whether working with heavy aggregates or lighter bulk materials.

---

Dimensions & Weight

• Overall Length (with Bucket): Approx. 10,100 mm

• Width (Over Tyres): Approx. 3,150 mm

• Cab Height: Approx. 3,800 mm

• Wheelbase: Approx. 3,750 mm

• Ground Clearance: Approx. 500 mm

• Operating Weight: Approx. 35,700 Kg

Balanced and stable, the 982M is designed to handle large buckets and long cycles with confidence.

---

Steering & Braking

• Steering Type: Load-sensing hydrostatic articulated steering (±40°)

• Rear Axle Oscillation: ±13°

• Service Brakes: Oil-immersed wet-disc brakes on all four wheels

• Parking Brake: Spring-applied, hydraulic release

Responsive handling and high braking performance give operators precise control even in confined or slippery working conditions.

---

Tyres

• Standard Tyres: 29.5 R25 radial

• Optional Tyres: L3, L4, L5, or application-specific configurations

• Rims: Heavy-duty steel construction

Tyre selection can be tailored to suit the demands of your site — whether rehandling materials or working in abrasive quarry conditions.

---

Operator Cabin & Controls

• Cab: ROPS/FOPS-certified Cat Comfort Cab – pressurized, insulated, and sound-suppressed

• Seat: Air-suspension, heated, fully adjustable with ergonomic layout

• Visibility: Large panoramic glass, rearview camera, slim pillars

• Controls: Integrated electro-hydraulic joystick or multi-function lever

• Display: Color touchscreen monitor with Cat Production Measurement and real-time diagnostics

• HVAC: Automatic climate control with dual filtration

Built for high-output operations, the 982M cab promotes operator comfort, visibility, and precision to reduce fatigue and increase productivity.

---

Service Capacities

• Fuel Tank: Approx. 540 Ltr

• Hydraulic System: Approx. 230 Ltr

• Engine Oil: Approx. 38 Ltr

• Cooling System: Approx. 70 Ltr

• Axle Oil (Front/Rear): Approx. 85 Ltr each

• Maintenance Features: Ground-level service points, swing-out cooling system, and Product Link™ telematics for remote monitoring

The 982M is built for uptime — reducing service time and keeping your machine productive shift after shift.

---

Use Cases

• Large-scale aggregate rehandling

• Quarry and mining material loading

• Industrial bulk material operations

• High-capacity truck loading

• Port terminal and logistics yards

---

Final Thoughts

The Caterpillar 982M Wheel Loader is purpose-built for high-volume, high-efficiency loading in some of the toughest environments. With its powerful drivetrain, fuel-saving technology, and premium operator comfort, it delivers exceptional performance where it matters most. Now available through Ekin Traktors, the 982M is the smart choice for businesses that demand maximum output and durability from their fleet.
