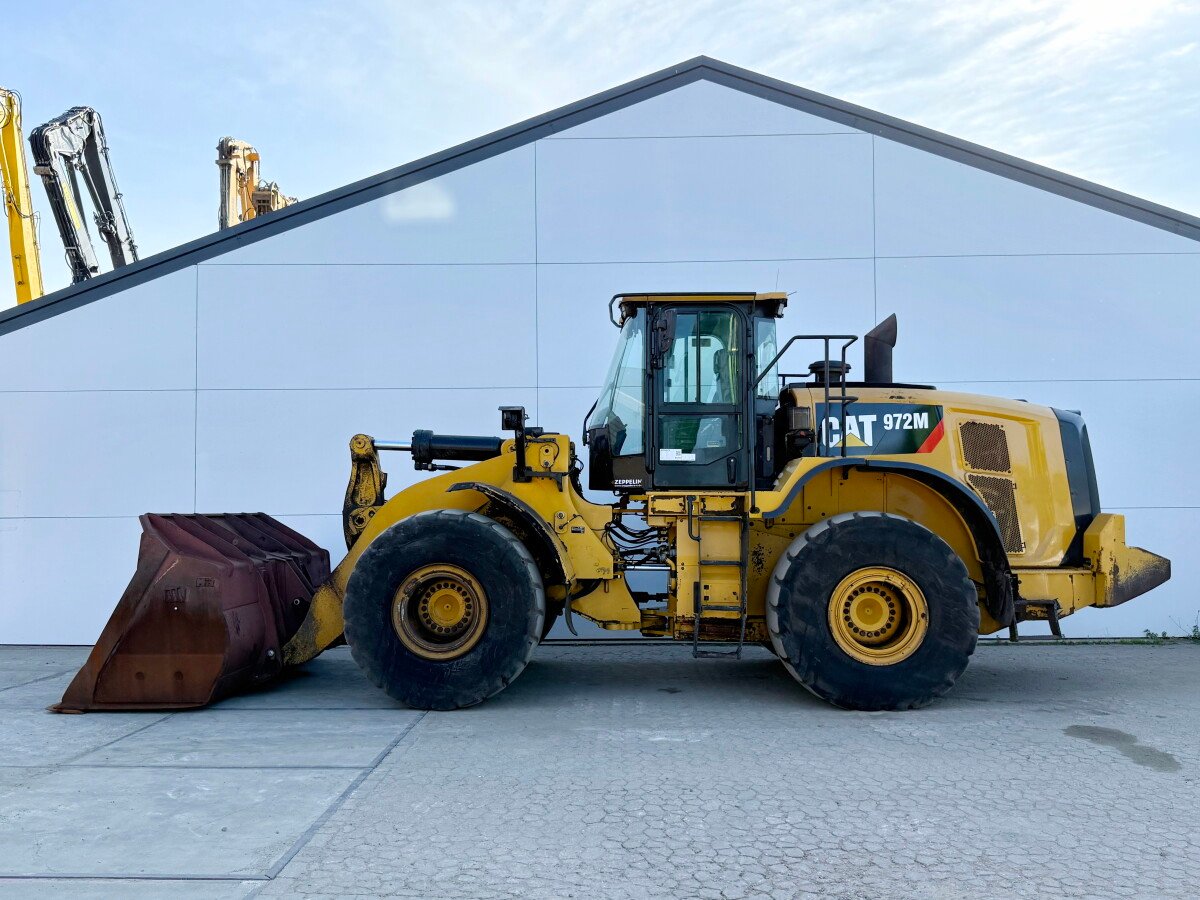

Caterpillar 972M Wheel Loader

Caterpillar 972M Wheel Loader

Available through Ekin Traktors

The Caterpillar 972M Wheel Loader is a high-production, fuel-efficient powerhouse engineered to deliver unmatched performance in quarrying, aggregates, heavy construction, and bulk material handling. With advanced Cat® ACERT™ engine technology, optimized Z-bar linkage, and intelligent hydraulics, the 972M offers fast cycle times, superior fuel economy, and class-leading durability.

Designed to work harder while using less fuel, the 972M is a versatile, high-capacity loader with intelligent systems and an operator-focused design — making it the go-to solution for high-demand material movement.

---

Key Specifications

• Power Source: Diesel

• Operating Weight: Approx. 25,000 – 26,500 Kg

• Bucket Capacity: 3.8 – 13.0 m³ (configurable for application)

• Static Tipping Load (Straight): Approx. 19,000 Kg

• Travel Speed (Max): Up to 40 km/h

• Steering Type: Articulated with rear axle oscillation

• Drive System: Cat planetary powershift with lock-up clutch

---

Engine & Powertrain

• Engine: Cat C9.3 ACERT™ 6-cylinder turbocharged diesel (Tier 4 Final / EU Stage V)

• Rated Output: Approx. 225 kW (302 HP)

• Max Torque: Over 1,400 Nm

• Cooling: Demand-based, hydraulically driven fan with auto-reverse

• Transmission: 5-speed Cat planetary powershift with torque converter

• Differentials: Standard: Open; Optional: Auto-diff lock or limited-slip

The advanced Cat C9.3 engine is built for maximum torque and fuel efficiency under load. The lock-up clutch torque converter improves powertrain efficiency, fuel economy, and operator control during load-and-carry operations.

---

Loading System

• Linkage Type: Optimized Z-bar linkage with parallel lift capability

• Bucket Width (GP): Approx. 3,050 mm

• Lift Height (at Hinge Pin): Approx. 4,100 mm

• Dump Clearance (at Max Lift): Approx. 2,950 mm

• Attachment Compatibility: Rock buckets, rehandling, high-dump, fork attachments, and quick coupler systems

Built for versatility, the Z-bar linkage combines high breakout force with enhanced parallel lift, making the 972M ideal for both bucket and fork applications.

---

Dimensions & Weight

• Overall Length (with GP Bucket): Approx. 9,100 mm

• Width (Over Tyres): Approx. 3,000 mm

• Height (Cab Roof): Approx. 3,600 mm

• Ground Clearance: Approx. 460 mm

• Wheelbase: Approx. 3,450 mm

• Operating Weight: Approx. 25,700 Kg

The 972M’s optimized geometry ensures exceptional stability and load retention, even in uneven or high-volume environments.

---

Steering & Braking

• Steering Type: Fully articulated steering with ±40° articulation

• Rear Axle Oscillation: ±13°

• Brakes: Hydraulic wet-disc brakes on all four wheels

• Parking Brake: Spring-applied, hydraulically released

• Steering System: Load-sensing hydrostatic

Whether you’re working on stockpiles or inside tight yards, the 972M’s precise steering and powerful braking system provide safe and agile handling.

---

Tyres

• Standard Tyres: 26.5 R25 radial

• Optional: Rock tread, L3/L5, or custom flotation tyres

• Rim Options: Heavy-duty steel

The 972M’s wide tyre compatibility allows customization for quarry floors, aggregate sites, paved yards, or loose terrains.

---

Operator Cabin & Controls

• Cabin: ROPS/FOPS-certified, pressurized, and sound-suppressed

• Seat: Fully adjustable air-suspension seat with heating and lumbar support

• Visibility: Panoramic glass, integrated rearview camera, and slimline pillars

• Controls: Electro-hydraulic joystick or multi-lever configuration

• Display: Touchscreen monitor with real-time diagnostics and payload monitoring

• HVAC: Automatic climate control with high-efficiency filtration

Caterpillar’s next-gen cab focuses on operator productivity and fatigue reduction, with premium ergonomics, low noise levels, and clear 360° visibility.

---

Service Capacities

• Fuel Tank: Approx. 300 Ltr

• Hydraulic System Capacity: Approx. 130 Ltr

• Engine Oil: Approx. 25 Ltr

• Cooling System: Approx. 55 Ltr

• Axle Oil (Front/Rear): Approx. 43 Ltr each

• Service Access: Ground-level access, grouped service points, and optional Cat Product Link™ telematics for remote monitoring

Smart design and advanced diagnostics allow for fast maintenance, reduced service time, and maximized machine availability.

---

Use Cases

• Quarry and aggregate operations

• Heavy construction and civil infrastructure

• Bulk earthmoving and stockpile management

• Industrial and port material handling

• Waste and recycling environments

---

Final Thoughts

The Caterpillar 972M Wheel Loader delivers big-league performance with the efficiency and agility needed to meet today’s production demands. Whether you’re loading trucks, moving stockpiles, or feeding crushers, the 972M provides the strength, control, and durability that serious operators expect. Available now through Ekin Traktors, it’s a premium machine designed for powerful, long-term performance in high-volume operations.
