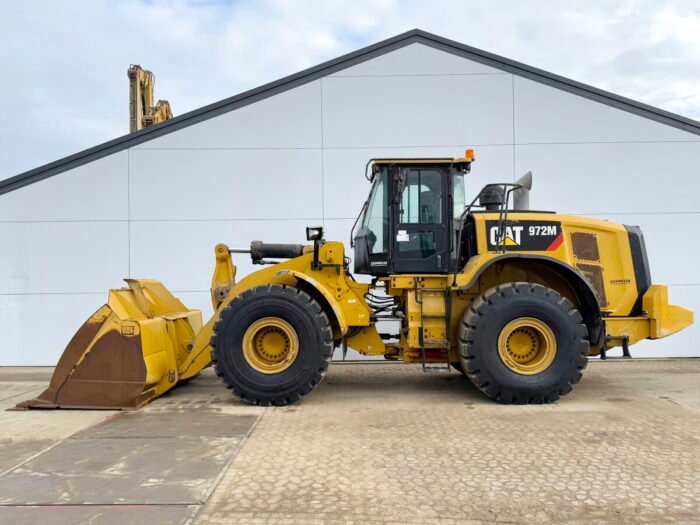

Caterpillar 972M Wheel Loader

Caterpillar 972M Wheel Loader

Available through Ekin Traktors

The Caterpillar 972M Wheel Loader is a high-production, mid-to-large class machine designed for demanding operations in quarrying, aggregates, rehandling, and heavy construction. Combining powerful performance, precision control, and advanced fuel-saving technologies, the 972M helps reduce cost-per-ton while delivering long-lasting reliability.

Powered by a robust Cat® C9.3 ACERT™ engine and featuring optimized Z-bar linkage, the 972M balances breakout force and parallel lift functionality for maximum versatility across varied materials and tasks.

---

Key Specifications

• Power Source: Diesel

• Operating Weight: Approx. 25,000 – 26,000 Kg

• Bucket Capacity: 4.2 – 5.0 m³

• Static Tipping Load (Straight): Approx. 19,500 Kg

• Max Travel Speed: Up to 40 km/h

• Transmission: Cat 5-speed automatic powershift with lock-up

---

Engine & Powertrain

• Engine: Cat C9.3 ACERT™, 6-cylinder turbocharged (EU Stage IV / Tier 4 Final compliant)

• Rated Output: Approx. 223 kW (299 HP)

• Max Torque: Over 1,300 Nm

• Cooling System: Hydraulic fan with auto-reverse functionality

• Transmission: Cat intelligent powershift with torque converter lock-up

• Drive Modes: Eco, Standard, and Performance

• Axles: Heavy-duty planetary axles with optional limited-slip or 100% locking differentials

The 972M delivers aggressive torque and responsive power under load, with intelligent shift logic for optimal performance and fuel savings in tough conditions.

---

Loading System

• Linkage Type: Optimized Z-bar linkage

• Hinge Pin Height: Approx. 4,400 mm

• Dump Clearance at Max Lift: Approx. 3,100 mm

• Breakout Force: Approx. 230 kN

• Attachments: General purpose, rock, high-dump, coal, grapple, and Cat quick coupler compatible

Cat’s refined Z-bar linkage offers high breakout force for dense materials, while also supporting parallel lift paths for fork and pallet work.

---

Dimensions & Weight

• Overall Length (with Bucket): Approx. 9,200 mm

• Width (Over Tyres): Approx. 3,000 mm

• Cab Height: Approx. 3,500 mm

• Wheelbase: Approx. 3,500 mm

• Ground Clearance: Approx. 450 mm

• Operating Weight: Approx. 25,700 Kg

Designed for large-scale rehandling and production work, the 972M is built with a reinforced frame and excellent stability under load.

---

Steering & Braking

• Steering Type: Articulated frame (±40°) with load-sensing hydrostatic steering

• Rear Axle Oscillation: ±13°

• Service Brakes: Wet-disc brakes on all wheels (enclosed)

• Parking Brake: Spring-applied, hydraulically released

Precise, responsive control in any terrain ensures safe maneuvering around large sites or near equipment and personnel.

---

Tyres

• Standard Tyres: 26.5 R25 radial

• Optional Tyres: L3, L4, or application-specific

• Rims: Heavy-duty steel

Tyre configurations are available to match site conditions—whether working on rock, soft soils, paved yards, or abrasive surfaces.

---

Operator Cabin & Controls

• Cab: Pressurized and insulated Cat Comfort Cab – ROPS/FOPS certified

• Seat: Heated air-suspension seat with full lumbar and armrest adjustments

• Visibility: Panoramic glass, rearview camera, and low-profile pillars

• Controls: Electro-hydraulic joystick or multi-function levers

• Display: Color LCD monitor with Cat Production Measurement and real-time diagnostics

• HVAC: Automatic climate control with advanced air filtration

Cat’s industry-leading cab is optimized for visibility, ergonomics, and control, helping operators stay productive and comfortable through long shifts.

---

Service Capacities

• Fuel Tank: Approx. 380 Ltr

• Hydraulic System: Approx. 180 Ltr

• Engine Oil: Approx. 28 Ltr

• Cooling System: Approx. 52 Ltr

• Axle Oil (Front/Rear): Approx. 60 Ltr each

• Maintenance Features: Ground-level service points, swing-out cooling pack, and Product Link™ telematics

Designed for uptime, the 972M allows quick service access and predictive maintenance scheduling to reduce downtime and maximize return.

---

Use Cases

• Quarry and aggregates

• Construction rehandling and site prep

• Port and terminal bulk loading

• Asphalt and concrete plants

• Steel yards and scrap handling

• Industrial material transfer

---

Final Thoughts

The Caterpillar 972M Wheel Loader stands out for its raw power, refined hydraulics, and intelligent operator support systems. Whether moving heavy aggregates or feeding high-output crushers, the 972M delivers reliability and efficiency in the most demanding tasks. Now available through Ekin Traktors, the 972M is a proven, high-performing choice for those who demand performance with durability.
