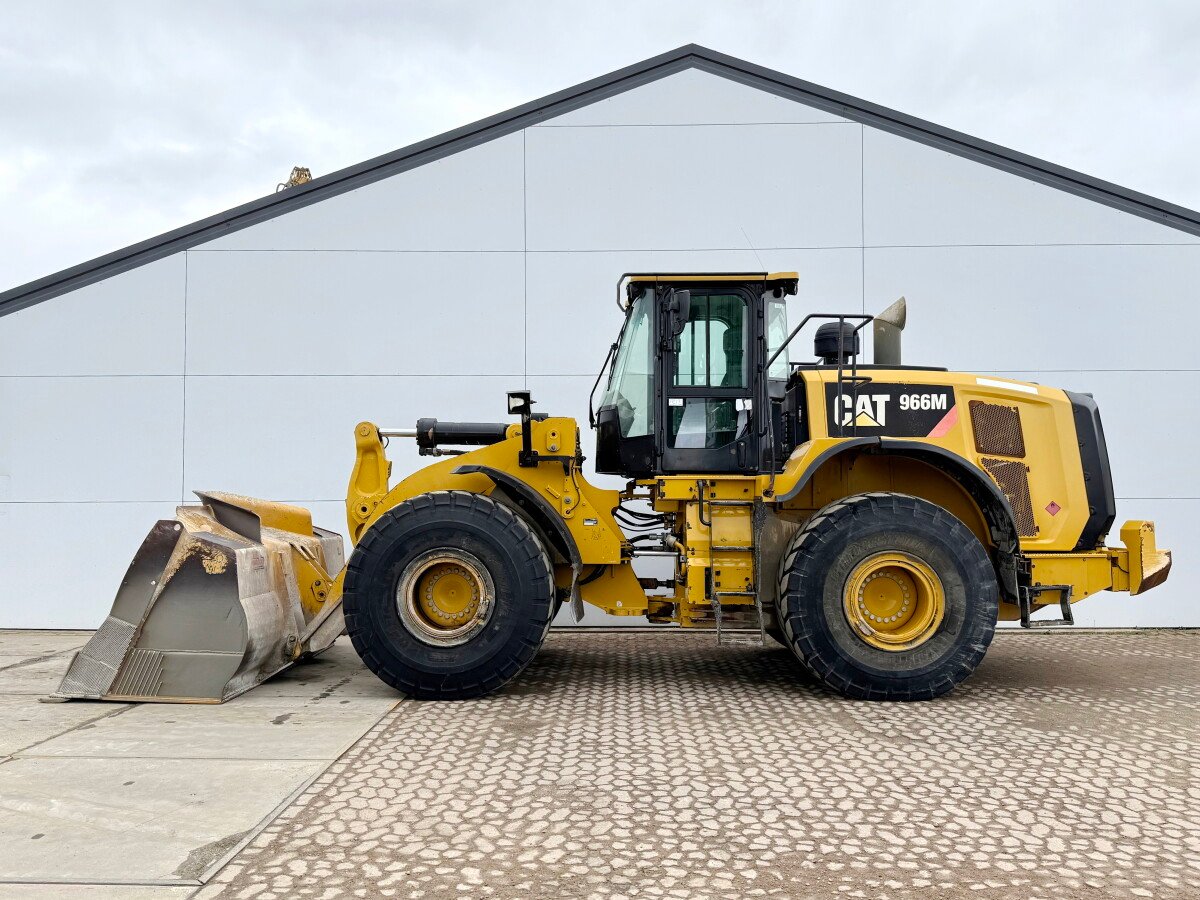

Caterpillar 966M Wheel Loader

Caterpillar 966M Wheel Loader

Available through Ekin Traktors

The Caterpillar 966M Wheel Loader is a highly capable, mid-to-large class machine designed for performance, reliability, and low cost per ton in demanding material handling environments. With powerful hydraulics, a refined operator station, and advanced Cat® technology, the 966M is built to move more — faster, safer, and with greater fuel efficiency.

Whether you’re loading trucks, managing stockpiles, or rehandling aggregate, the 966M delivers high breakout force, fast cycle times, and class-leading comfort for long shifts on tough jobsites.

---

Key Specifications

• Power Source: Diesel

• Operating Weight: Approx. 23,000 – 24,000 Kg

• Bucket Capacity: 3.75 – 5.0 m³ (application-dependent)

• Static Tipping Load (Straight): Approx. 18,300 Kg

• Travel Speed (Max): Up to 40 km/h

• Drive System: Cat powershift transmission with lock-up clutch

---

Engine & Powertrain

• Engine: Cat C9.3 ACERT™, turbocharged diesel (Tier 4 Final / EU Stage IV compliant)

• Rated Output: Approx. 239 kW (321 HP)

• Max Torque: Approx. 1,600 Nm

• Cooling System: Demand-based, variable-speed fan

• Transmission: Cat 5-speed automatic powershift with lock-up torque converter

• Drive Modes: Power and Eco modes for fuel optimization

• Differentials: Optional limited-slip or automatic differential locks

The 966M offers excellent torque delivery at low RPMs and intelligent engine management, maximizing both power and fuel economy in high-production environments.

---

Loading System

• Linkage Type: Cat Z-bar linkage with enhanced parallel lift geometry

• Lift Height at Hinge Pin: Approx. 4,100 mm

• Dump Clearance at Max Lift: Approx. 3,000 mm

• Breakout Force: Over 190 kN

• Attachments: General purpose, rock, high-dump, grapple, forks, and quick coupler options

The updated Z-bar linkage ensures strong breakout performance while maintaining smooth parallel lift for versatile handling of both loose material and palletized loads.

---

Dimensions & Weight

• Overall Length (with GP Bucket): Approx. 8,800 mm

• Width (Over Tyres): Approx. 2,950 mm

• Cab Height: Approx. 3,500 mm

• Wheelbase: Approx. 3,300 mm

• Ground Clearance: Approx. 450 mm

• Operating Weight: Approx. 23,500 Kg

The 966M’s robust frame and balanced geometry provide superior stability and control — whether working in tight yards or rough open sites.

---

Steering & Braking

• Steering Type: Articulated steering with ±40° articulation

• Rear Axle Oscillation: ±13°

• Brakes: Hydraulic wet-disc brakes on all wheels

• Parking Brake: Spring-applied, hydraulically released

• Steering System: Load-sensing hydrostatic

Designed for safety and operator confidence, the steering and braking systems are engineered for precise, responsive performance — even under full load.

---

Tyres

• Standard Tyres: 26.5 R25 radial

• Optional Tyres: L3, L4, or application-specific tread types

• Wheels: Heavy-duty steel rims

Tyre and rim packages can be tailored for various operating environments, from aggregate yards to industrial sites.

---

Operator Cabin & Controls

• Cab: ROPS/FOPS-certified Cat Comfort Cab, pressurized and sound-suppressed

• Seat: Heated, air-suspension seat with full adjustability

• Visibility: All-around visibility with rearview camera and wide glass surfaces

• Controls: Electro-hydraulic joystick or multi-function lever

• Display: Full-color monitor with real-time diagnostics and Cat Payload System (optional)

• HVAC: Automatic climate control with premium air filtration

Built for comfort and control, the 966M’s operator environment boosts productivity while reducing fatigue during long shifts.

---

Service Capacities

• Fuel Tank: Approx. 300 Ltr

• Hydraulic System: Approx. 180 Ltr

• Engine Oil: Approx. 30 Ltr

• Cooling System: Approx. 50 Ltr

• Axle Oil (Front/Rear): Approx. 55 Ltr each

• Service Access: Ground-level grouped service points, swing-out coolers, and Cat Product Link™ for remote monitoring

With intuitive maintenance features and smart diagnostics, the 966M is engineered for maximum uptime and minimal unplanned service interruptions.

---

Use Cases

• Quarry and aggregate operations

• Bulk material handling

• Construction and earthmoving

• Waste and recycling facilities

• Port and industrial yard loading

• Snow and bulk rehandling

---

Final Thoughts

The Caterpillar 966M Wheel Loader combines strength, intelligence, and durability to deliver class-leading performance in heavy-duty loading applications. With a strong focus on operator comfort, fuel economy, and reliable uptime, the 966M is a trusted solution for businesses that demand consistent productivity. Available now through Ekin Traktors, it’s a powerful investment for high-performance fleets.
