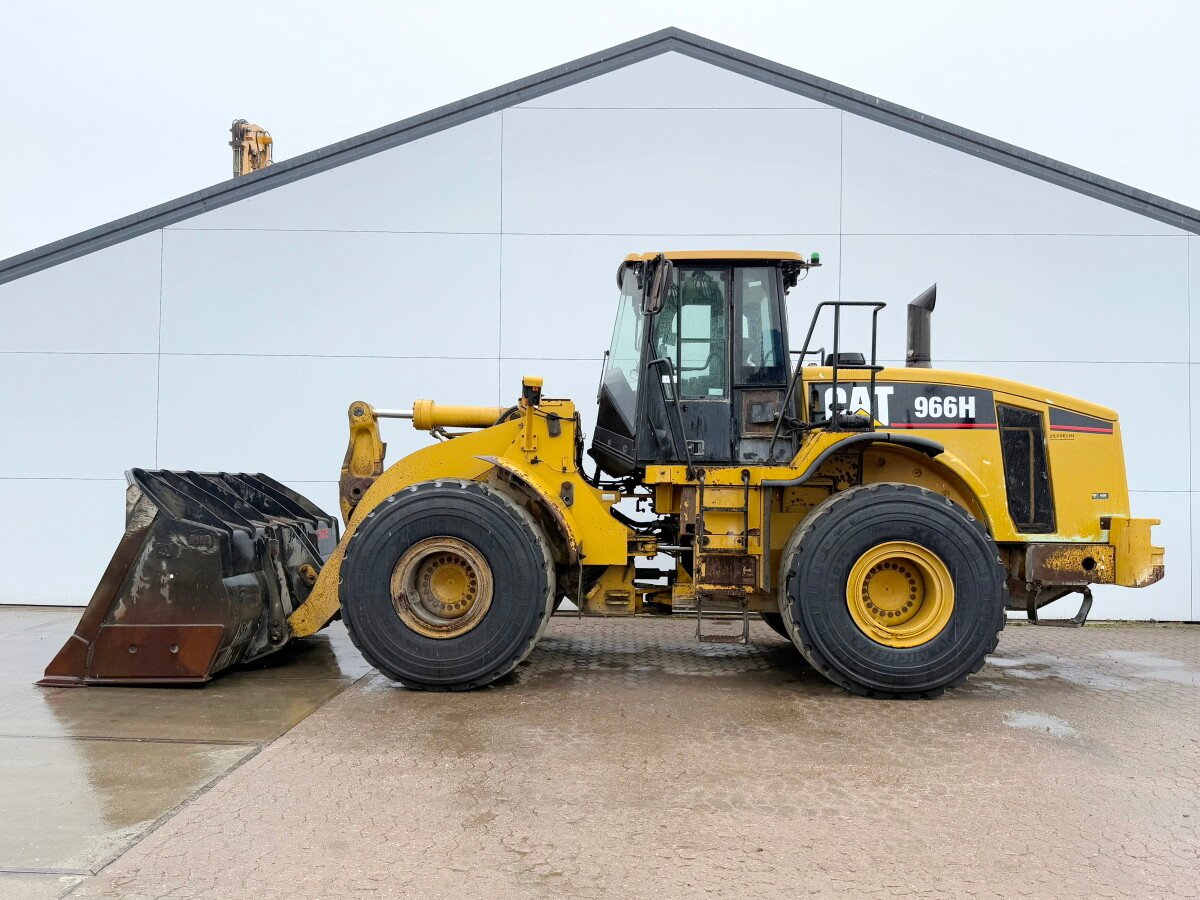

Caterpillar 966H Wheel Loader

---

Caterpillar 966H Wheel Loader

Available through Ekin Traktors

The Caterpillar 966H Wheel Loader combines power, durability, and fuel efficiency to meet the demands of mid-to-heavy-duty material handling applications. With proven performance in construction, quarry, and aggregate environments, the 966H offers exceptional breakout force, smooth hydraulic response, and superior operator comfort. Its robust frame, reliable powertrain, and easy serviceability make it a strong, long-lasting asset for any fleet.

Backed by Ekin Traktors, the 966H delivers dependable performance with low ownership costs — ideal for high-load applications and intensive daily use.

---

Key Specifications

• Net Power: 262 HP (195 kW)

• Operating Weight: 23,000 Kg

• Standard Bucket Capacity: 3.25 – 4.2 Cum

• Breakout Force: 20,000 Kg (Approx.)

• Fuel Tank Capacity: 300 Ltr

• Travel Speed (Max): 38 km/h

---

Engine

• Model: Cat® C11 ACERT™

• Emission Standard: Tier 3

• Net Power Output: 262 HP @ 1800 RPM

• Maximum Torque: 1280 Nm @ 1400 RPM

• Cooling System: Hydraulically driven fan with demand control

The C11 ACERT engine provides responsive power with optimal fuel economy. Its torque-heavy performance enables efficient digging, fast acceleration, and reduced downshifting during hill climbs or deep stockpile loading.

---

Loader Dimensions & Performance

• Bucket Capacity Range: 3.25 – 4.2 Cum

• Dump Clearance at Max Height: 3100 mm

• Hinge Pin Height: 4270 mm

• Breakout Force: 20,000 Kg

• Full Cycle Time: 11 seconds

Equipped with Z-bar linkage and load-sensing hydraulics, the 966H delivers fast cycle times and high material retention, improving productivity in heavy-duty tasks such as hopper loading or bulk material transfer.

---

Overall Dimensions & Weight

• Operating Weight: 23,000 Kg

• Overall Length (Bucket on Ground): 8500 mm

• Width Over Tyres: 2990 mm

• Height to Top of Cab: 3500 mm

• Ground Clearance: 450 mm

• Wheelbase: 3400 mm

The wide stance and reinforced chassis provide stability under load and during rapid directional changes, making the 966H suitable for large job sites and aggregate yards.

---

Hydraulic System

• Pump Type: Load-sensing, variable displacement

• Max Flow: 270 LPM

• System Pressure: 31,000 kPa

• Hydraulic Tank Capacity: 140 Ltr

The efficient hydraulic system ensures quick, precise movements with minimal energy waste — allowing for simultaneous lift, tilt, and travel operations without power loss.

---

Service Capacities

• Fuel Tank: 300 Ltr

• Engine Oil: 34 Ltr

• Cooling System: 75 Ltr

• Hydraulic Tank: 140 Ltr

• Transmission: 50 Ltr

• Front/Rear Axle Oil: 40 Ltr (Each)

Grouped service points and a ground-level maintenance layout reduce service time, while extended intervals support longer uninterrupted work shifts.

---

Axle & Steering

• Front Axle: Fixed

• Rear Axle: Oscillating (±13°)

• Steering: Load-sensing articulated hydrostatic

• Turning Radius (Outside of Tyres): 7100 mm

The articulated frame design offers responsive maneuverability and tight turning radius, enabling efficient operation in confined or cluttered job sites.

---

Braking System

• Service Brakes: Wet-disc, hydraulically actuated

• Parking Brake: Spring-applied, hydraulic release

• Design: Enclosed oil-cooled discs for consistent performance in all weather conditions

---

Tyres

• Standard Fitment: 26.5 R25 radial tyres

• Optional Configurations: Rock or earthmover treads for site-specific needs

Heavy-duty radial tyres provide excellent ground contact and load-bearing capacity, minimizing wear on hard or abrasive surfaces.

---

Electrical System

• System Voltage: 24 V

• Alternator: Heavy-duty 100 Amp

• Batteries: Dual 12V high-capacity

• Optional: Work lights, rearview camera, advanced monitoring display

---

Use Cases

• Bulk material handling

• Quarry and mining support

• Heavy-duty site prep and excavation

• Load-and-carry operations

• Industrial yard and stockpile management

---

Final Thoughts

The Caterpillar 966H Wheel Loader is built for demanding tasks that require consistent performance, rugged durability, and operator-focused control. Whether you’re loading aggregates, clearing overburden, or transferring bulk material, the 966H offers outstanding productivity, reliability, and low fuel consumption. Available now through Ekin Traktors, it’s a solid choice for businesses looking to strengthen their heavy equipment fleet.
