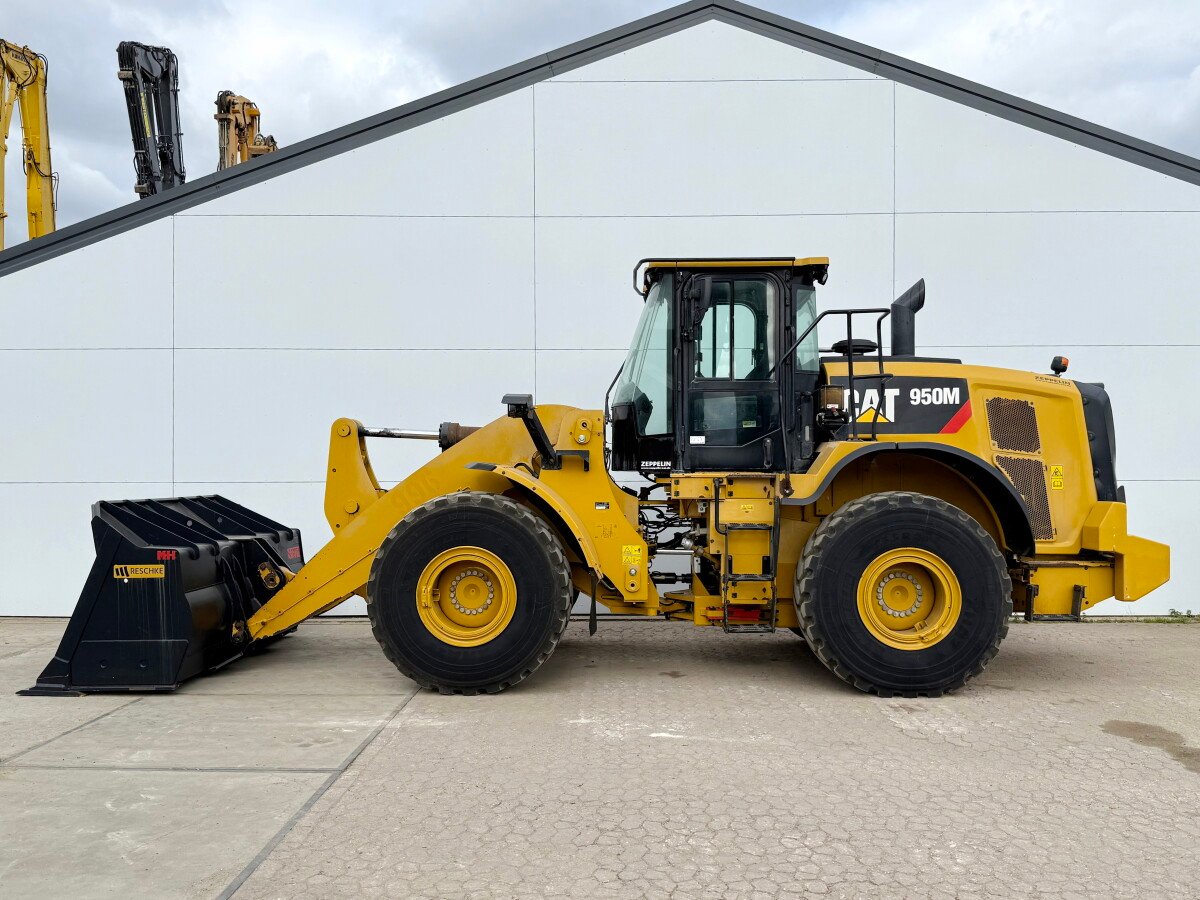

Caterpillar 950M Wheel Loader

Caterpillar 950M Wheel Loader

Available through Ekin Traktors

The Caterpillar 950M Wheel Loader sets the standard for productivity, fuel efficiency, and durability in the medium wheel loader category. Built to handle a wide range of applications including material handling, construction, quarry work, and industrial use, the 950M delivers strong breakout force, fast cycle times, and exceptional operator comfort.

Backed by Caterpillar’s renowned reliability and Ekin Traktors’ commitment to customer service, the 950M is an intelligent investment for operations requiring consistent uptime and versatile performance.

---

Key Specifications

• Net Power: 230 HP (171 kW)

• Operating Weight: 19,200 Kg

• Bucket Capacity: 2.5 – 4.4 Cum (Standard)

• Breakout Force: 18,600 Kg

• Fuel Tank Capacity: 275 Ltr

• Maximum Travel Speed: 40 km/h

---

Engine

• Model: Cat® C7.1 ACERT™

• Emission Standard: Tier 4 Final / Stage IV

• Net Power: 230 HP @ 2100 RPM

• Maximum Torque: 1163 Nm @ 1300 RPM

• Cooling System: On-demand hydraulically driven fan

Designed for fuel efficiency and torque-heavy applications, the C7.1 ACERT engine delivers powerful performance with reduced emissions, lower operating costs, and extended component life.

---

Loader Dimensions & Performance

• Bucket Range: 2.5 – 9.2 Cum (with options)

• Hinge Pin Height: 4030 mm

• Dump Clearance at Max Height: 2960 mm

• Breakout Force: 18,600 Kg

• Full Cycle Time (Lift, Dump, Lower): 8.9 seconds

The load-sensing hydraulics and responsive control system allow for fast, accurate bucket movements, ideal for repetitive loading tasks and high-volume handling.

---

Overall Dimensions & Weight

• Operating Weight: 19,200 Kg

• Length (with Bucket on Ground): 8220 mm

• Width Over Tyres: 2820 mm

• Height to Top of Cab: 3410 mm

• Ground Clearance: 360 mm

• Wheelbase: 3350 mm

A well-balanced frame with optimized geometry ensures stability and control, especially when operating on slopes or uneven ground.

---

Hydraulic System

• Pump Type: Variable-displacement piston pump

• Maximum Hydraulic Flow: 288 LPM

• Operating Pressure: 25,000 kPa

• Hydraulic System Capacity: 125 Ltr

The advanced hydraulic system maximizes performance while minimizing energy waste — translating to higher efficiency and better control in all working conditions.

---

Service Capacities

• Fuel Tank: 275 Ltr

• Engine Oil: 22 Ltr

• Cooling System: 59 Ltr

• Hydraulic Tank: 125 Ltr

• Transmission: 43 Ltr

• DEF Tank: 16 Ltr

Maintenance-friendly design and grouped service points allow for reduced downtime and faster turnaround during daily checks and scheduled servicing.

---

Axle & Steering

• Front Axle: Fixed

• Rear Axle: Oscillating (13°)

• Steering Type: Load-sensing, articulated hydrostatic

• Turning Radius (Outside of Tyres): 6440 mm

The 950M’s articulated frame and hydrostatic steering system provide smooth, precise maneuvering even in tight spaces and demanding environments.

---

Braking System

• Service Brakes: Wet-disc, hydraulically actuated

• Parking Brakes: Spring-applied, hydraulic release

• Design: Fully enclosed, oil-cooled brakes for extended life and dependable stopping power

---

Tyres

• Standard: 23.5 R25 radial tyres

• Optional: Bias ply or heavy-duty radial tyres depending on application

Wide, durable tyres provide excellent ground contact and stability during heavy load operations, with optional upgrades available for specific terrains.

---

Electrical System

• System Voltage: 24 V

• Starting and Charging: Heavy-duty alternator and batteries

• Lighting: Halogen work lights (LED optional)

• Optional: Telematics integration and onboard diagnostics

---

Use Cases

• Construction and Infrastructure Projects

• Material Handling and Stockpiling

• Quarry and Aggregate Operations

• Municipal and Utility Work

• Industrial and Site Preparation

---

Final Thoughts

The Caterpillar 950M Wheel Loader offers an ideal combination of power, versatility, and fuel efficiency in a medium-duty platform. Its advanced hydraulic system, refined cab ergonomics, and durable construction make it a reliable performer for any demanding job site. Supported by Ekin Traktors, the 950M is a smart, long-term solution for fleet owners and contractors looking to maximize productivity and uptime.
