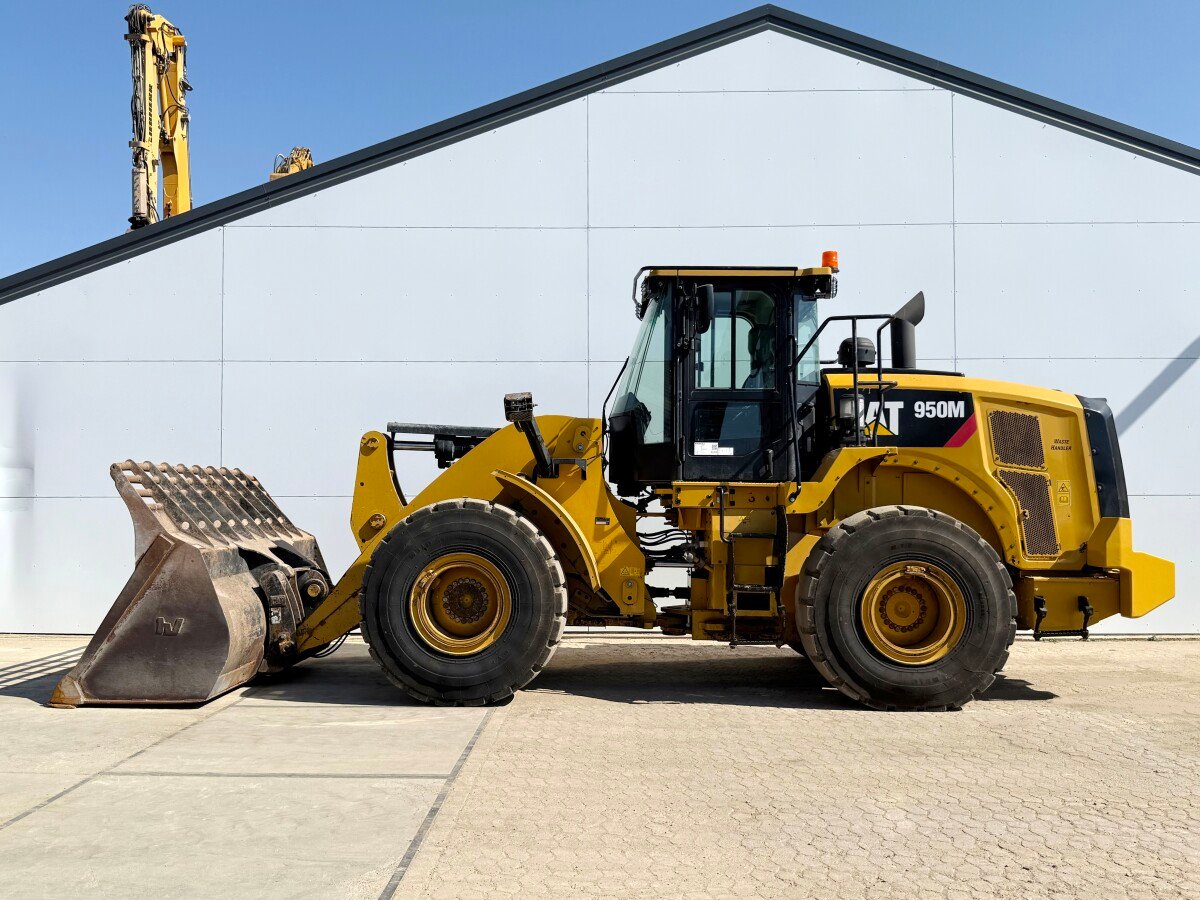

Caterpillar 950M Wheel Loader

Caterpillar 950M Wheel Loader

Available through Ekin Traktors

The Caterpillar 950M Wheel Loader is a versatile, high-performance loader designed to meet the demanding needs of construction, aggregates, and industrial applications. With a perfect balance of power, fuel efficiency, and operator comfort, the 950M delivers reliable productivity across a wide range of material handling tasks.

Powered by a robust Cat® C7.1 ACERT™ engine and equipped with an advanced powertrain, hydraulic system, and responsive controls, the 950M offers faster cycle times, improved fuel economy, and exceptional load-handling capabilities.

---

Key Specifications

• Power Source: Diesel

• Operating Weight: Approx. 19,000 – 20,000 Kg

• Bucket Capacity: 3.1 – 4.4 m³ (application-specific)

• Static Tipping Load (Straight): Approx. 13,000 Kg

• Travel Speed (Max): Up to 40 km/h

• Steering Type: Articulated with rear axle oscillation

• Drive System: Cat powershift transmission with lock-up clutch

---

Engine & Powertrain

• Engine: Cat C7.1 ACERT™, 6-cylinder, turbocharged (Tier 4 Final / EU Stage IV compliant)

• Rated Output: Approx. 186 kW (249 HP)

• Max Torque: Approx. 1,186 Nm

• Cooling System: Variable-speed, demand-driven cooling fan

• Transmission: Cat 5-speed automatic powershift with torque converter and lock-up clutch

• Axle Options: Open, limited-slip, or automatic diff locks

The 950M’s powertrain is engineered for smooth, efficient operation across varied terrain and loading conditions — delivering performance with fuel savings.

---

Loading System

• Linkage Type: Optimized Cat Z-bar linkage

• Lift Height (at Hinge Pin): Approx. 4,050 mm

• Dump Clearance (at Max Lift): Approx. 2,850 mm

• Breakout Force: Over 150 kN

• Attachment Compatibility: General purpose, rehandling, forks, quick coupler, grapple, and high-dump buckets

The enhanced Z-bar linkage offers powerful breakout force and excellent parallel lift capability — ideal for fast truck loading, stockpile work, and pallet handling.

---

Dimensions & Weight

• Overall Length (with Bucket): Approx. 8,400 mm

• Width (Over Tyres): Approx. 2,800 mm

• Cab Height: Approx. 3,400 mm

• Wheelbase: Approx. 3,200 mm

• Ground Clearance: Approx. 400 mm

• Operating Weight: Approx. 19,500 Kg

Its well-balanced frame and tight turning radius give the 950M excellent agility and stability in both confined job sites and large yards.

---

Steering & Braking

• Articulation Angle: ±40°

• Rear Axle Oscillation: ±13°

• Brakes: Enclosed, hydraulic wet-disc brakes

• Parking Brake: Spring-applied, hydraulically released

• Steering: Load-sensing hydrostatic steering

Safe, precise handling is delivered by the 950M’s responsive steering and durable braking systems — even under full load and high-duty cycles.

---

Tyres

• Standard Tyres: 23.5 R25 radial

• Optional: L2, L3, snow tread, or wide-base options available

• Wheels: Heavy-duty steel rims

Tyre configurations can be customized to suit site conditions — from paved roads to loose aggregates or snow-packed yards.

---

Operator Cabin & Controls

• Cabin: Pressurized, ROPS/FOPS-certified Cat Comfort Cab

• Seat: Adjustable air-suspension with heating and lumbar support

• Visibility: Wide glass surface, rearview camera, and integrated mirrors

• Controls: Electro-hydraulic joystick or multi-function lever

• Display: Touchscreen monitor with real-time machine data, payload tracking, and diagnostics

• HVAC: Automatic climate control system with multi-stage filtration

Designed with operator comfort in mind, the 950M’s spacious and quiet cab improves productivity and reduces fatigue during long operating hours.

---

Service Capacities

• Fuel Tank: Approx. 300 Ltr

• Hydraulic System Capacity: Approx. 130 Ltr

• Engine Oil: Approx. 25 Ltr

• Cooling System: Approx. 45 Ltr

• Axle Oil (Front/Rear): Approx. 45 Ltr each

• Service Access: Ground-level access, grouped service points, swing-out coolers, and optional Cat Product Link™ telematics

Built for uptime, the 950M offers fast serviceability and extended maintenance intervals to reduce downtime and operating costs.

---

Use Cases

• Construction and road building

• Quarry and aggregate handling

• Industrial yard and warehouse loading

• Municipal and utility work

• Snow removal and rehandling

• Agricultural feed and fertilizer transport

---

Final Thoughts

The Caterpillar 950M Wheel Loader is engineered to handle demanding applications with confidence, speed, and precision. Offering class-leading performance, fuel efficiency, and operator comfort, it’s a go-to machine for contractors, aggregate producers, and industrial operations alike. Available now through Ekin Traktors, the 950M represents reliable power and intelligent design — built for long-term productivity and low cost per hour.

---
