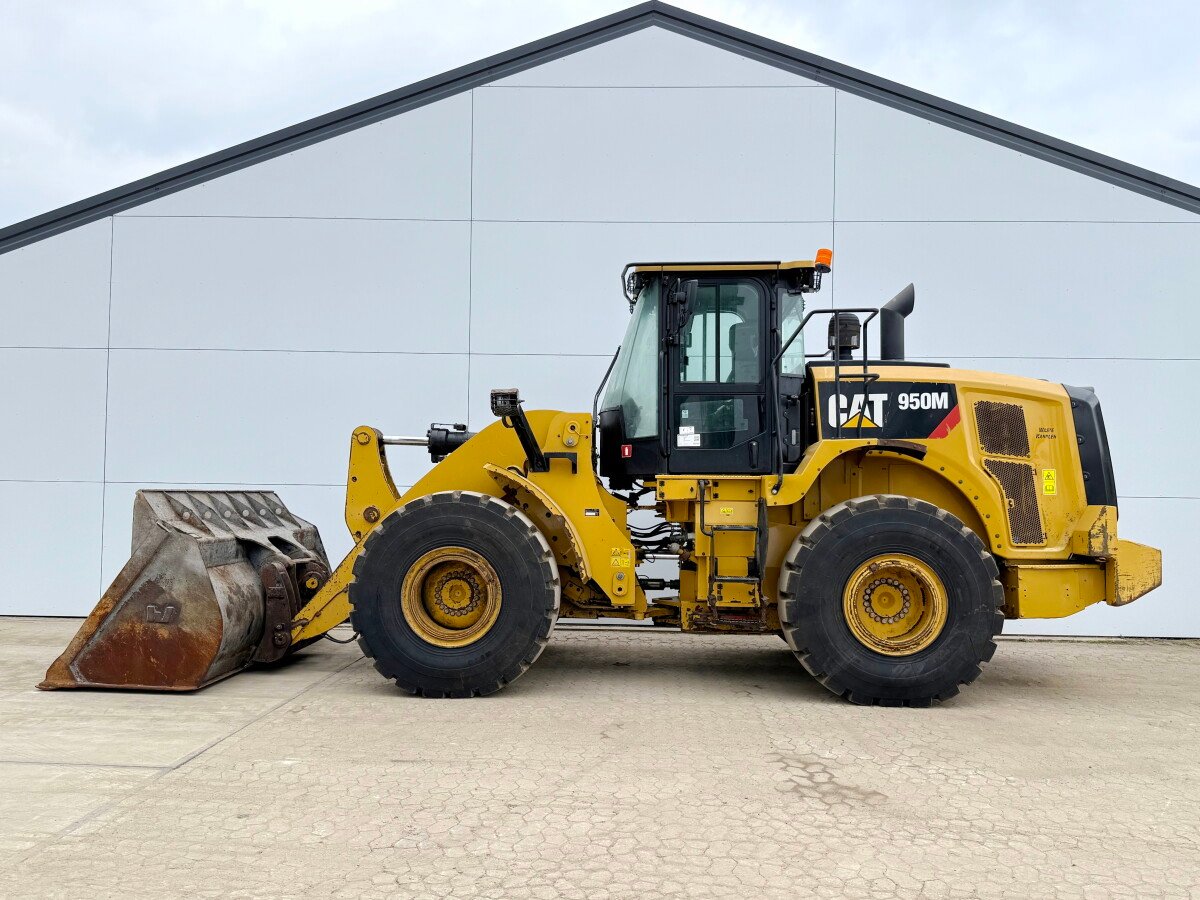

Caterpillar 950M Wheel Loader

Caterpillar 950M Wheel Loader

Available through Ekin Traktors

The Caterpillar 950M Wheel Loader is a high-performance, mid-size machine designed for demanding material handling applications. Whether you’re working in construction, aggregates, waste handling, or industrial rehandling, the 950M offers the strength, precision, and fuel efficiency to deliver consistent, low-cost productivity shift after shift.

Built around the proven Cat® C7.1 ACERT™ engine and equipped with a responsive powertrain, advanced hydraulics, and intelligent operator features, the 950M provides a perfect combination of durability, comfort, and performance in a versatile loading platform.

---

Key Specifications

• Power Source: Diesel

• Operating Weight: Approx. 18,500 – 19,500 Kg

• Bucket Capacity: 3.1 – 4.4 m³ (application-dependent)

• Static Tipping Load (Straight): Approx. 13,000 Kg

• Travel Speed (Max): Up to 40 km/h

• Transmission: Cat powershift with lock-up torque converter

---

Engine & Powertrain

• Engine: Cat C7.1 ACERT™, 6-cylinder, turbocharged (Tier 4 Final / Stage IV compliant)

• Rated Output: Approx. 186 kW (249 HP)

• Max Torque: Approx. 1,186 Nm

• Cooling System: Demand-driven cooling fan with reversible feature

• Transmission: Cat 5-speed automatic powershift with lock-up clutch

• Drive Modes: Standard, Performance, and Eco

• Axles: Planetary with optional differential locks (limited-slip or 100% locking)

Cat’s advanced engine and transmission pairing ensures responsive acceleration, strong torque at low RPMs, and efficient fuel use in high-demand environments.

---

Loading System

• Linkage Type: Optimized Z-bar linkage with parallel lift capability

• Lift Height at Hinge Pin: Approx. 4,000 mm

• Dump Clearance at Max Lift: Approx. 2,850 mm

• Breakout Force: Over 170 kN

• Attachments: General purpose, rehandling, high-dump, forks, grapple, and quick coupler options

The updated Z-bar geometry delivers powerful breakout force and stable load handling, ideal for both bucket work and precision pallet handling.

---

Dimensions & Weight

• Overall Length (with Bucket): Approx. 8,200 mm

• Width (Over Tyres): Approx. 2,750 mm

• Cab Height: Approx. 3,300 mm

• Wheelbase: Approx. 3,200 mm

• Ground Clearance: Approx. 420 mm

• Operating Weight: Approx. 19,000 Kg

A compact turning radius and balanced frame design make the 950M ideal for both tight urban work zones and large industrial yards.

---

Steering & Braking

• Steering Type: Articulated steering (±40°) with load-sensing hydrostatic system

• Rear Axle Oscillation: ±13°

• Service Brakes: Wet-disc brakes on all wheels

• Parking Brake: Spring-applied, hydraulically released

The 950M offers responsive, confident handling and braking performance — even in slippery or uneven working conditions.

---

Tyres

• Standard Tyres: 23.5 R25

• Optional Tyres: L2, L3, snow, or application-specific treads

• Rims: Heavy-duty steel

Tyre selection can be tailored to jobsite demands — from paved surfaces to quarries, snowfields, or abrasive materials.

---

Operator Cabin & Controls

• Cab: Pressurized, sound-insulated, ROPS/FOPS-certified Cat Comfort Cab

• Seat: Heated, air-suspension seat with full adjustability and lumbar support

• Visibility: All-around visibility with panoramic glass, slim pillars, and rearview camera

• Controls: Electro-hydraulic joystick or multi-function lever

• Display: Full-color digital monitor with payload tracking and diagnostics

• HVAC: Automatic climate control with multi-stage filtration

Designed for long workdays, the cab promotes operator comfort and alertness with ergonomic design, reduced cabin noise, and fingertip control.

---

Service Capacities

• Fuel Tank: Approx. 270 Ltr

• Hydraulic System: Approx. 110 Ltr

• Engine Oil: Approx. 13 Ltr

• Cooling System: Approx. 36 Ltr

• Axle Oil (Front/Rear): Approx. 30 Ltr each

• Maintenance Features: Ground-level access, swing-out coolers, and Cat Product Link™ for remote monitoring

The 950M is built for uptime, with easy service access and predictive maintenance technology that helps avoid unplanned downtime.

---

Use Cases

• Aggregates and quarrying

• Construction and earthworks

• Municipal waste and recycling

• Agricultural feed and grain handling

• Industrial bulk loading

• Snow removal and winter operations

---

Final Thoughts

The Caterpillar 950M Wheel Loader is a smart choice for operations that demand versatility, performance, and cost-efficiency. With its advanced drivetrain, robust Z-bar linkage, and operator-focused cab, the 950M is ready to meet the challenges of high-duty cycles and tough materials. Available now through Ekin Traktors, the 950M represents dependable performance with the backing of the Cat legacy.
