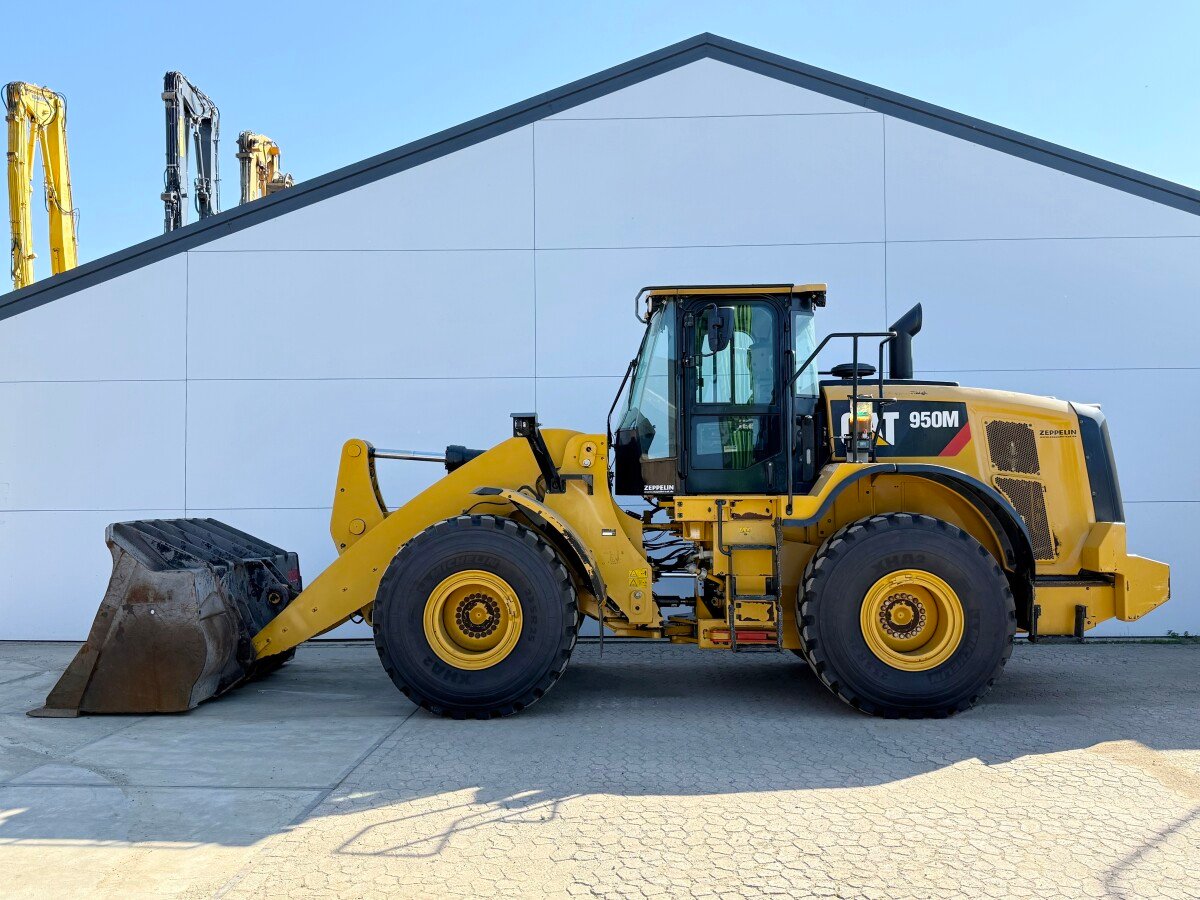

Caterpillar 950M – New michelin tyres Wheel Loader

Caterpillar 950M Wheel Loader  New Michelin Tyres

Available through Ekin Traktors

Designed to deliver high performance, reliability, and fuel efficiency, the Caterpillar 950M Wheel Loader is built for medium-duty loading applications across construction sites, quarries, and material yards. Featuring the proven Cat® C7.1 ACERT™ engine, intelligent hydraulics, and now upgraded with new Michelin radial tyres, this machine combines rugged durability with operator comfort and class-leading cycle times.

The 950M’s premium tyre package provides increased traction, longer wear life, and improved handling on mixed or uneven terrain, making it a valuable addition to any fleet focused on productivity and reduced operating costs.

---

Key Specifications

• Net Power: 230 HP (171 kW)

• Operating Weight: 19,200 Kg

• Bucket Capacity Range: 2.5 – 9.2 Cum

• Breakout Force: 18,600 Kg

• Hydraulic Flow: 288 LPM

• Fuel Tank Capacity: 275 Ltr

---

Engine

• Model: Cat® C7.1 ACERT™

• Emission Compliance: U.S. EPA Tier 4 Final / EU Stage IV

• Net Power: 230 HP @ 2100 RPM

• Maximum Torque: 1163 Nm @ 1300 RPM

The C7.1 engine provides strong low-end torque and high fuel efficiency. Designed for harsh job sites, it maintains performance under load and minimizes downtime with smart regeneration and advanced cooling.

---

Loader General Dimensions & Performance

• Bucket Capacity: 2.5 – 4.4 Cum (Standard Configuration)

• Dump Clearance at Max Height: 2960 mm

• Hinge Pin Height: 4030 mm

• Breakout Force: 18,600 Kg

• Total Cycle Time (Lift, Dump, Lower): 8.9 seconds

The 950M’s load-sensing hydraulics and responsive controls enable fast cycle times and precise load handling  ideal for aggregate yards, loading hoppers, and short-haul bucket runs.

---

Backhoe Dimensions & Performance

Not applicable – dedicated wheel loader

---

Overall Dimensions & Weight

• Operating Weight: 19,200 Kg

• Height to Top of Cabin: 3410 mm

• Overall Length (Bucket on Ground): 8220 mm

• Width Over Tyres: 2820 mm

• Ground Clearance: 360 mm

• Wheelbase: 3350 mm

Its well-balanced chassis, articulated frame, and optimal wheelbase contribute to smooth operation and excellent maneuverability in tight loading zones or stockpiles.

---

Hydraulic System

• Pump Type: Variable-displacement piston pump

• Maximum Flow: 288 LPM

• Operating Pressure: 25,000 kPa

• System Capacity: 125 Ltr

The load-sensing system provides hydraulic power on demand, reducing fuel use while supporting fast and consistent lift and tilt actions even under continuous duty cycles.

---

Service Capacities

• Fuel Tank: 275 Ltr

• Engine Oil: 22 Ltr

• Cooling System: 59 Ltr

• Hydraulic Tank: 125 Ltr

• Transmission: 43 Ltr

• DEF Tank: 16 Ltr

With large fluid capacities and easy-access service points, the 950M is designed for long shifts with minimal interruption — ideal for operations with limited maintenance windows.

---

Axle & Steering

• Front Axle: Fixed

• Rear Axle: Oscillating (13°)

• Steering: Load-sensing, articulated hydrostatic steering

• Turning Radius (Outside of Tyres): 6440 mm

The hydrostatic steering and articulated frame allow for tight turns and high maneuverability, even in confined job sites or during quick directional changes under load.

---

Braking System

• Service Brakes: Wet-disc, hydraulically actuated

• Parking Brakes: Spring-applied, hydraulic release

• Brake Design: Enclosed and oil-cooled for long service life

Engineered for durability and safety, the braking system ensures responsive, smooth stops and reduced wear across extended working hours and varying conditions.

---

Tyres

• New Fitment: Michelin 23.5 R25 XHA2 L3 radial tyres

• Features: Enhanced sidewall protection, reduced rolling resistance, and superior traction in soft, mixed, or abrasive terrain

These premium tyres extend performance life and reduce downtime due to punctures or wear — an excellent investment for high-duty environments.

---

Electrical System

• System Voltage: 24 V

• Battery Capacity: Heavy-duty cold start batteries

• Optional: Work lights, backup alarm, and telematics support for fleet integration

---

Use Cases

• Medium-to-heavy material loading operations

• Roadwork and site preparation

• Stockpile loading and hopper feeding

• Quarry and gravel pit applications

• Municipal and infrastructure maintenance

---

Final Thoughts

The Caterpillar 950M Wheel Loader, now available with Michelin radial tyres through Ekin Traktors, offers the perfect balance of power, precision, and productivity for medium-duty applications. Whether you’re managing material in a quarry, handling roadwork logistics, or loading bulk for transport, this machine delivers dependable performance with low fuel burn and high operator satisfaction.

Reach out to Ekin Traktors today for pricing, availability, or tailored delivery options.
