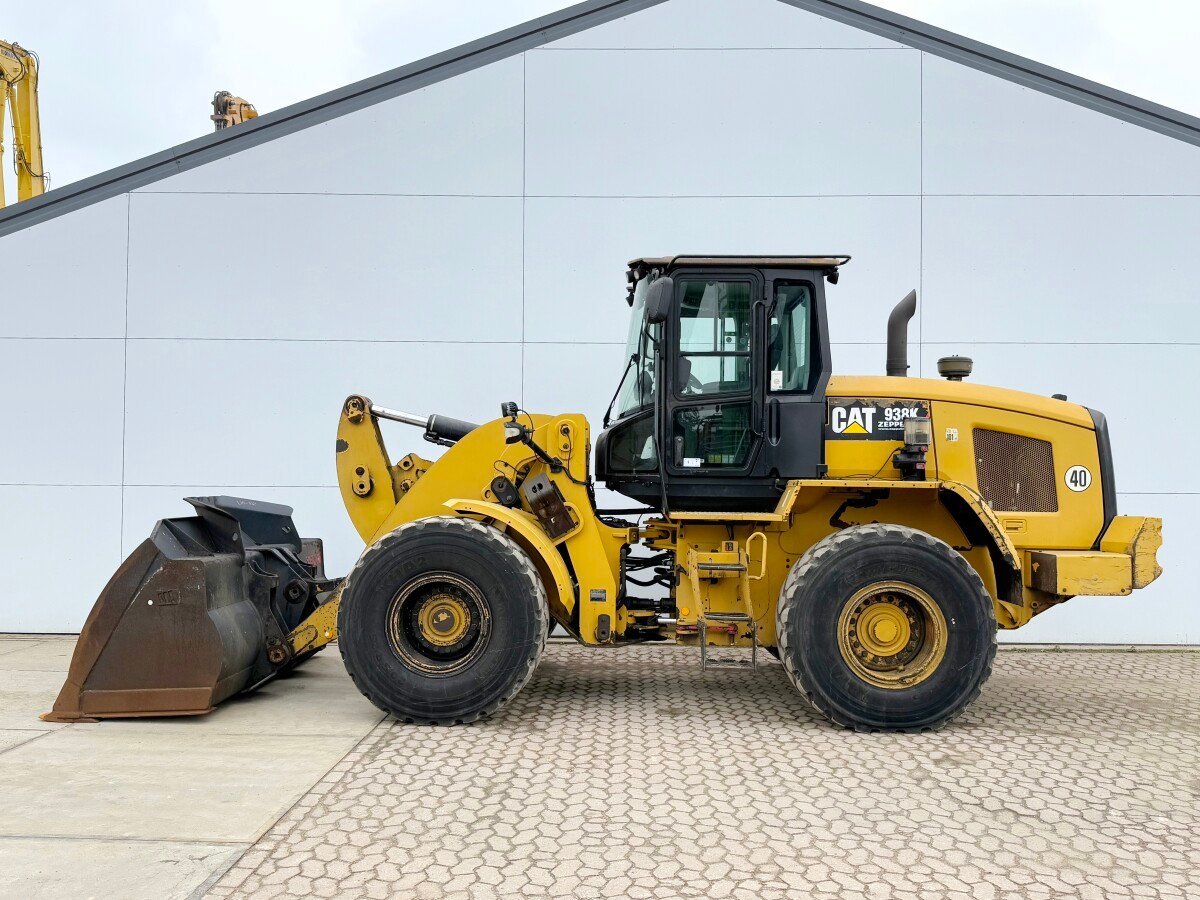

Caterpillar 938K Wheel Loader

Caterpillar 938K Wheel Loader

Available through Ekin Traktors

The Caterpillar 938K Wheel Loader is a mid-size, high-performance machine engineered for versatility, precision, and fuel efficiency. Ideal for construction sites, municipal services, material yards, and light aggregate operations, the 938K delivers powerful breakout force, smooth hydraulics, and a responsive operator experience in a compact and agile design.

Built with Cat® intelligent systems, a fuel-efficient ACERT™ engine, and advanced electro-hydraulic controls, the 938K combines productivity with ease of operation — making it a favorite among operators and fleet managers alike.

---

Key Specifications

• Power Source: Diesel

• Operating Weight: Approx. 15,000 – 16,500 Kg

• Bucket Capacity: 2.5 – 4.0 m³ (application-specific)

• Static Tipping Load (Straight): Approx. 10,000 Kg

• Travel Speed (Max): Up to 40 km/h (with optional lock-up clutch)

• Steering Type: Articulated with rear axle oscillation

• Drive System: Cat Intelligent Hydrostatic Drive

---

Engine & Powertrain

• Engine: Cat C7.1 ACERT™, 6-cylinder turbocharged diesel (Tier 4 Final / EU Stage IV compliant)

• Rated Output: Approx. 128 kW (171 HP)

• Max Torque: Approx. 805 Nm

• Cooling System: Demand-based fan with auto-reverse

• Transmission: Hydrostatic with adjustable response settings

• Drive Modes: Optional lock-up clutch torque converter for improved travel speeds

The 938K’s advanced hydrostatic transmission and intelligent engine management system deliver high torque at low RPMs for fuel savings and excellent responsiveness in tight working conditions.

---

Loading System

• Linkage Type: Cat Z-bar linkage with enhanced parallel lift geometry

• Bucket Width: Approx. 2,600 – 2,900 mm (depending on bucket)

• Lift Height (at Pin): Approx. 3,900 mm

• Dump Clearance (at Max Lift): Approx. 2,700 mm

• Attachment Options: General purpose, rehandling, grapple, forks, snow, and quick coupler attachments

Engineered for flexibility, the Z-bar linkage combines high breakout force with precise control, making it suitable for both material loading and handling palletized goods.

---

Dimensions & Weight

• Overall Length (with GP Bucket): Approx. 7,500 mm

• Width (Over Tyres): Approx. 2,500 mm

• Height (Cab Roof): Approx. 3,250 mm

• Ground Clearance: Approx. 390 mm

• Wheelbase: Approx. 2,850 mm

• Operating Weight: Approx. 15,500 Kg

The 938K strikes a balance between lifting performance and maneuverability — ideal for both tight urban jobsites and wide-open yards.

---

Steering & Braking

• Steering Type: Fully articulated with ±40° articulation

• Rear Axle Oscillation: ±11°

• Brakes: Enclosed wet-disc service brakes

• Parking Brake: Spring-applied, hydraulically released

• Steering System: Load-sensing hydrostatic steering

Smooth and responsive steering paired with high-performance braking ensures confident operation on varying terrain and during frequent direction changes.

---

Tyres

• Standard Tyres: 20.5 R25 radial

• Optional: L2, L3, or multi-use treads available

• Rim Options: Heavy-duty steel wheels

Tyre options support diverse environments, from construction zones and roadwork to snow removal and aggregate yards.

---

Operator Cabin & Controls

• Cabin: ROPS/FOPS-certified, pressurized, and sound-suppressed

• Seat: Fully adjustable air-suspension with lumbar support and heat

• Visibility: Panoramic glass with integrated rear camera and large side mirrors

• Controls: Electro-hydraulic joystick or multi-function lever

• Display: Full-color display with real-time diagnostics and Cat Payload system (optional)

• HVAC: Automatic climate control with cab filtration

The 938K cab prioritizes comfort, safety, and operator efficiency — perfect for long days of multi-tasking across various jobsite conditions.

---

Service Capacities

• Fuel Tank: Approx. 200 Ltr

• Hydraulic System Capacity: Approx. 110 Ltr

• Engine Oil: Approx. 13 Ltr

• Cooling System: Approx. 36 Ltr

• Axle Oil (Front/Rear): Approx. 30 Ltr each

• Service Access: Ground-level maintenance points, side-by-side coolers, and Cat Product Link™ for remote monitoring

Maintenance is fast and simple, with smart design choices that support longer intervals and higher machine uptime.

---

Use Cases

• Urban and civil construction

• Material handling and rehandling yards

• Agriculture and feedlot operations

• Snow removal and road maintenance

• Municipal and public works

• Light quarry and aggregate handling

---

Final Thoughts

The Caterpillar 938K Wheel Loader blends powerful performance with operational versatility in a mid-size frame. With advanced fuel-saving technology, precise hydraulics, and a premium operator station, the 938K is a smart, high-value solution for businesses needing a reliable, all-purpose loader. Now available through Ekin Traktors, the 938K is ready to work wherever productivity matters most.
