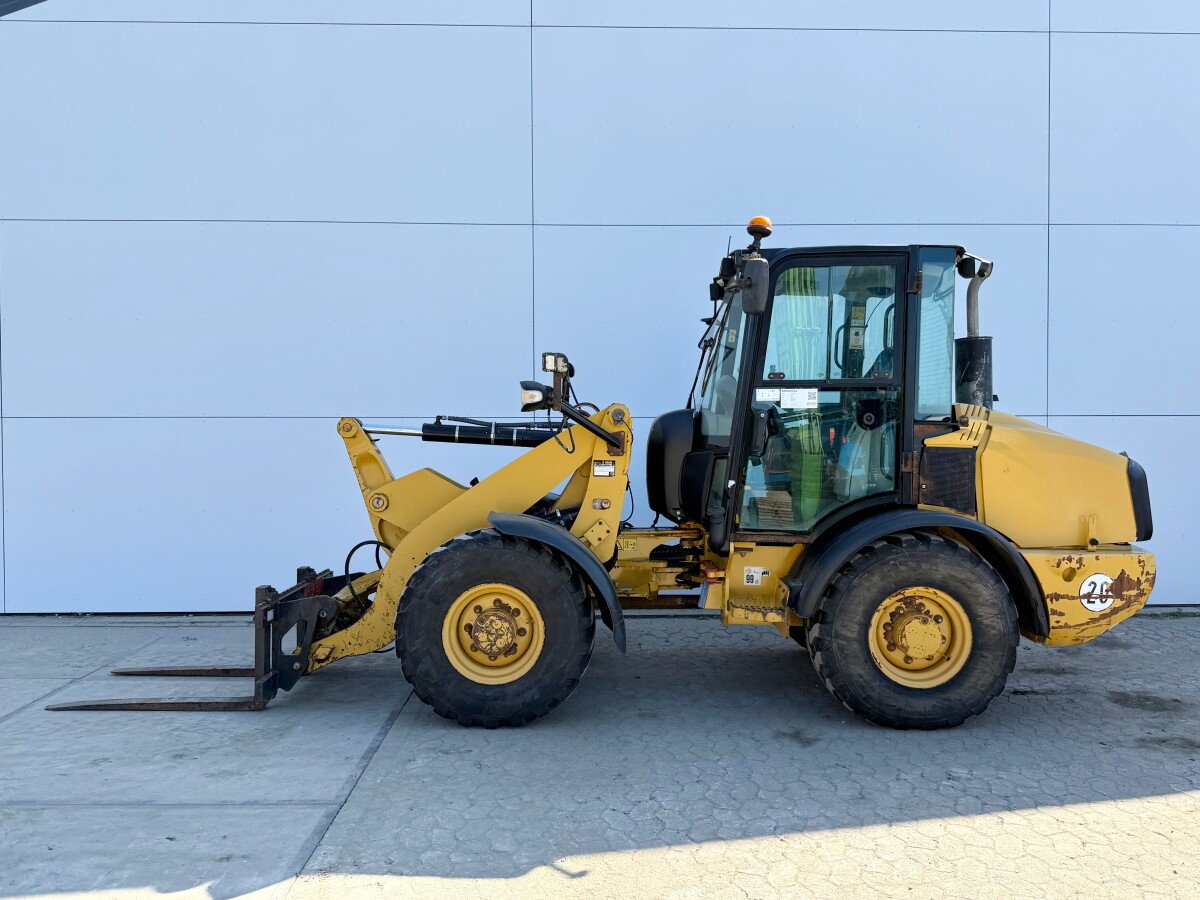

Caterpillar 906H Wheel Loader

Caterpillar 906H Wheel Loader

Available now through Ekin Traktors

---

Overview

Engineered for performance in confined spaces, the Caterpillar 906H Wheel Loader offers compact strength, efficient power, and intuitive controls for a wide range of urban and rural applications. With a reliable 55.4 kW (74 HP) engine and advanced hydrostatic drive system, the 906H delivers high breakout forces, quick cycle times, and smooth maneuverability across job sites of all types.

Designed for precision material handling, utility work, and infrastructure support, the 906H stands out for its low operating cost, comfortable cabin environment, and Caterpillar-grade durability — making it ideal for contractors, municipalities, and fleet operators.

---

Key Specifications

• Engine Power: 55.4 kW (74 HP)

• Operating Weight: Approx. 5500 – 6200 Kg

• Bucket Capacity: 0.9 – 1.2 m³ (depending on configuration)

• Maximum Travel Speed: 35 km/h

• Transmission: Hydrostatic

• Certification: CE Certified

---

Engine & Powertrain

• Engine Model: CAT C3.4

• Emission Compliance: EU Stage IIIA / EPA Tier 3

• Fuel Efficiency: Engine and hydrostatic drive are tuned for low fuel consumption and reduced emissions

• Drive System: Hydrostatic transmission with smooth response and speed control under varying loads

---

Loader Dimensions & Performance

• Dump Height at Max Lift: Approx. 2430 mm

• Hinge Pin Height: Approx. 3100 mm

• Bucket Breakout Force: ~ 5500 Kgf

• Tipping Load (Straight): Approx. 3800 Kg

• Tipping Load (Articulated): Approx. 3300 Kg

• Bucket Capacity (Standard): 1.0 m³

With strong breakout and lift capacities, the 906H handles bulk material, aggregate, snow, or palletized loads with ease — all while maintaining stability and control across rough surfaces or confined sites.

---

Cabin & Operator Comfort

• All-Weather Cab: Fully enclosed cabin with heating and optional AC

• Ergonomic Layout: Intuitive joystick controls, adjustable suspension seat, and excellent visibility

• Integrated Display: Onboard monitoring for real-time diagnostics and operational data

• Optional Features: Quick coupler control, ride control, auxiliary hydraulics

The cabin environment is optimized for daily operator comfort and fatigue reduction, especially on longer workdays or repetitive cycles.

---

Applications

• Municipal Services: Ideal for snow removal, debris clearing, and maintenance work

• Light Construction: Suitable for small foundation prep, earthmoving, and backfilling

• Agriculture: Grain handling, manure movement, or field equipment loading

• Material Handling: Efficient for pallet work, composting, and yard operations

• Rental Fleets: Trusted Caterpillar reliability with user-friendly operation

---

Dimensions & Transport

• Overall Length (with Bucket): Approx. 5.65 m

• Width Over Tires: ~1.85 m

• Height to Top of Cab: ~2.45 m

• Ground Clearance: ~300 mm

• Operating Weight: ~5800 Kg

Its compact footprint and relatively light weight make the 906H easy to transport on standard trailers and suitable for urban or restricted-access job sites.

---

Service & Maintenance

• Daily Service Points: Ground-level access for fluid checks and filters

• Extended Intervals: Efficient engine and hydraulic system reduce frequency of service

• Durability: Proven CAT components engineered for long-term use and resale value

• Support: Easy access to Caterpillar parts and global service network

---

Final Thoughts

The Caterpillar 906H Wheel Loader is a high-performance, compact loader that delivers reliability, fuel efficiency, and versatility — all backed by Caterpillar engineering. Whether you’re loading material in tight lots, maintaining public works, or managing farm tasks, the 906H combines power and precision in a size that fits your operation.

Now available through Ekin Traktors  contact us today to request a quote, schedule a demo, or arrange transport to your location.
