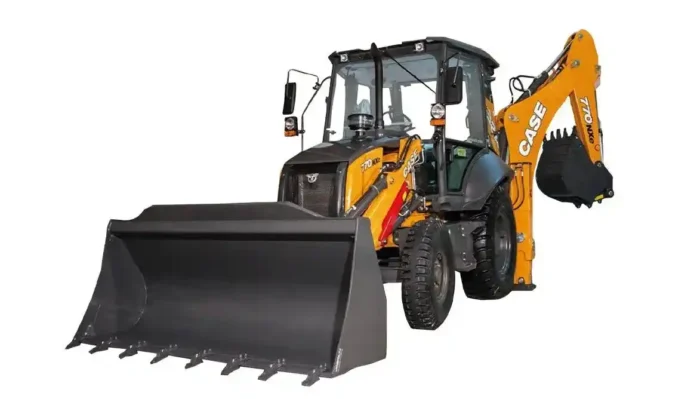

CASE 770NXe Backhoe Loader

CASE 770NXe Backhoe Loader – Smart Economy Meets Everyday Power

The CASE 770NXe is designed to deliver maximum efficiency with reduced fuel consumption, making it an ideal solution for users looking for a balance between reliable performance and long-term cost savings. Its intelligent hydraulic system and proven components ensure dependable operation on demanding job sites.

---

Engine & Performance – Fuel-Efficient Backbone

Engineered with economy in mind, the 770NXe features a robust S8000 series engine, tuned for responsive torque and smooth power delivery.

• Emission Compliance: BS-III

• Engine Model: S8000

• Displacement: 3,900 cc

• Air Intake: Water Cooled

• Gross Power: 49.5 HP

• Maximum Torque: 252.2 Nm

An efficient engine platform that keeps running costs low without compromising field capability.

---

Hydraulic System – Intelligent Flow, Reliable Power

The open centre load sensing system in the CASE 770NXe offers optimized hydraulic flow matched to job demands—reducing load on the engine and improving fuel efficiency.

• System Type: Open Centre Load Sensing

• Pump Type: Axial Piston with Electronic Displacement Control

• Pump Flow: 119 LPM

• System Relief Pressure: 240 Bar

• Hydraulic Oil Capacity (System): 100 Liters

Smooth control and responsive hydraulics built for everyday versatility.

---

Loader Capabilities – Strong Handling, Smooth Dumping

The loader delivers practical strength with solid breakout force and optimal reach for efficient loading and material movement.

• Loader Bucket Capacity (Standard): 1.1 Cubic Meters

• Max Lift Capacity: 1,417 kg

• Dump Height: 2,720 mm

• Load Over Height: 3,300 mm

• Hinge Pin Height: 3,580 mm

• Hinge Pin Forward Reach: 240 mm

• Reach at Ground: 1,980 mm

• Rollback at Ground: 33°

• Dump Angle: 45°

• Max Reach at Full Height (Bucket Dumped): 1,190 mm

Efficiently handles loose material loading, especially in construction and utility worksites.

---

Backhoe Performance – Built to Dig, Designed to Last

Designed with a 14-foot dipper configuration, the backhoe delivers robust digging depth and efficient spoil placement, ideal for general excavation tasks.

• Dipper Configuration: 14 Feet

• Maximum Dig Depth: 4,400 mm

• Reach Ground Level to Swing Center: 5,630 mm

• Reach Ground Level to Rear Wheel Center: 6,950 mm

• Reach at Full Height to Slew Center: 2,150 mm

• Max Load Over Height: 3,640 mm

• Max Working Height: 5,490 mm

• Bucket Rotation: 185°

• Backhoe Bucket Capacity: 0.26 Cubic Meters

A rugged, dependable performer for trenching, utility, and drainage applications.

---

Dimensions & Weight – Balanced for On-Site Movement

The 770NXe offers well-proportioned dimensions that support easy transport and stable on-site performance across terrains.

• Max Operating Weight: 7,610 kg

• Transport Length: 5,880 mm

• Width Over Stabilizer: 2,270 mm

• Width Over Bucket: 2,280 mm

• Track Width (Rear): 1,700 mm

• Track Width (Front): 1,880 mm

• Wheelbase: 2,180 mm

• Minimum Ground Clearance: 380 mm

Compact and transport-friendly without sacrificing digging and lifting strength.

---

Drivetrain & Steering – Smooth Control, Trusted Components

CASE combines premium drivetrain elements with comfortable steering systems for fatigue-free operation.

• Transmission Model: CARRARO 2WD TLB1

• Type: 4F-4R Shuttle Synchromesh

• Rear Axle: CARRARO 28.32M

• Front Axle: CNH PS1300 (2WD)

• Front Axle Oscillation: ±21°

• Steering Type: Power Steering

• Steering System Pressure: 140 Bar

• Turning Radius (Braked): 4.6 m

• Turning Radius (Not Braked): 5.55 m

Reliable componentry that enables tight turning and stable handling in restricted spaces.

---

Service Capacities – Long Service Cycles, Easy Access

Built to minimize downtime with durable fluids and easily accessible service points.

• Engine Oil Capacity: 8.6 Liters

• Transmission Oil Capacity: 18 Liters

• Hydraulic Oil (System): 100 Liters

• Rear Axle Oil: 17.1 Liters

• Coolant: 20 Liters

• Fuel Tank: 129 Liters

• Hydraulic Oil Replacement Interval: 48 months or 4000 hours

Designed for extended field time and fewer maintenance interruptions.

---

Braking & Electricals – Safety and Power on Demand

• Service Brakes: Hydraulic foot-operated, dual-disc system

• Parking Brakes: Mechanically actuated, caliper type on rear axle

• Battery: 12V, 110Ah

Dependable electrical and braking systems ensure safe, uninterrupted operation.

---

Travel System – Controlled Mobility

• Forward Speeds (km/h): 5.0 / 7.9 / 16.9 / 32.4

• Reverse Speeds (km/h): 5.9 / 9.4 / 19.8 / N.R.

Geared for controlled movement on and off the job site, with a wide range of speed settings.

---

Tyre Options

• Front (Standard): 9×16 – 16PR

• Rear (Standard): 16.9×28 – 12PR

• Rear (Heavy Duty Optional): 14×25 – 12PR

Tyre flexibility to match terrain, payload needs, and durability preferences.

---

Applications

The CASE 770NXe is an ideal solution for:

• Urban infrastructure development

• Municipal work

• Small to medium-scale excavation

• Material handling and earthmoving

With its fuel-smart design and compact power, the 770NXe offers practical performance for operators seeking long-term economy and trusted CASE reliability.
