BULL HD 76

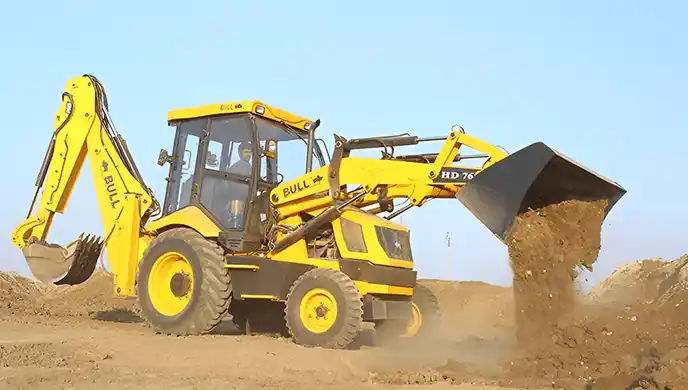

BULL HD 76 Backhoe Loader – Reliable Power and Versatile Functionality for Everyday Operations

The BULL HD 76 Backhoe Loader offers dependable performance and multi-application efficiency for construction, agriculture, and utility work. Designed with a fuel-efficient Kirloskar engine and a high-capacity hydraulic system, this machine balances power, precision, and ease of operation. Built for high uptime and reduced maintenance, the HD 76 is ideal for projects demanding consistency and maneuverability without sacrificing strength.

---

Engine & Performance

At the heart of the HD 76 lies the robust Kirloskar 4R1040 TC BS engine, engineered for reliable output and smooth torque delivery. With 76 HP of power and 300 Nm of torque, the machine performs efficiently across diverse site conditions.

• Engine Make: Kirloskar 4R1040 TC BS

• Gross Power Output: 76 HP

• Maximum Torque: 300 Nm

• Engine Oil Capacity: 12 L

This engine ensures a balance of power and fuel economy for medium-duty construction and excavation tasks.

---

Hydraulic System – Built for Responsive Control

With a 120 L hydraulic oil system, the HD 76 ensures smooth operation across all attachments. The high-capacity hydraulic circuit supports quick cycle times and responsive maneuvering for improved jobsite productivity.

• Hydraulic Oil Capacity (System): 120 L

The system is built to handle multi-shift operations with reduced fluid loss and consistent pressure output.

---

Loader – Balanced, Capable, and Efficient

Equipped with a 1.1 m³ bucket and a 1,400 kg lift capacity, the HD 76’s loader section is suited for a variety of loading and material-handling applications. It delivers reliable control at both ground level and elevated positions.

• Bucket Capacity (Standard): 1.1 m³

• Max Lift Capacity: 1,400 kg

• Dump Height: 2,930 mm

• Load Over Height: 3,390 mm

• Hinge Pin Height: 3,610 mm

• Hinge Pin Forward Reach: 420 mm

• Reach at Ground: 1,470 mm

• Max Reach at Full Height: 1,280 mm

• Rollback at Ground: 49°

• Dump Angle: 45°

The loader geometry ensures efficient bulk material handling with solid lift and dump performance.

---

Backhoe – Deep Digging with Smooth Rotation

Designed for versatile trenching and excavation, the HD 76’s backhoe setup delivers up to 4,600 mm of digging depth and excellent rotational control. With a bucket rotation of 188°, it’s well-suited for utility trenching and site preparation.

• Max Dig Depth: 4,600 mm

• Reach (Ground to Rear Wheel Center): 6,810 mm

• Reach at Full Height (to Slew Center): 900 mm

• Max Working Height: 5,920 mm

• Max Load Over Height: 1,300 mm

• Bucket Rotation: 188°

• Dipper Tear Out Force: 3,150 kgf

• Backhoe Bucket Capacity: 0.27 m³

• Max Lift Capacity: 1,400 kg

The backhoe system is engineered for controlled, deep excavation in tight or open areas.

---

Dimensions & Structural Build

With a well-balanced operating weight of 7,850 kg, the BULL HD 76 maintains both maneuverability and ground stability, ensuring performance across varied terrain conditions.

• Operating Weight: 7,850 kg

---

Drivetrain & Service Capacities

The HD 76 is equipped with durable transmission and axle systems, supported by ample service fluid capacities to minimize maintenance frequency and optimize operational uptime.

• Transmission Oil Capacity: 19 L

• Engine Oil Capacity: 12 L

• Coolant Capacity: 17 L

• Fuel Tank Capacity: 115 L

• Hydraulic Oil System: 120 L

These service-friendly capacities support continuous operation without frequent refueling or servicing.

---

Tyres & Steering

The machine comes with standard 9.00×16 – 16PR front tyres and is fitted with power steering for smooth directional control, especially in tight maneuvering conditions.

• Front Tyre Size (Standard): 9.00×16 – 16PR

• Steering Type: Power Steering

---

Applications

The BULL HD 76 Backhoe Loader is ideal for:

• General-purpose construction and site development

• Light to medium-duty trenching

• Agricultural transport and digging tasks

• Municipal and rural infrastructure projects

It offers a reliable combination of control, power, and serviceability – making it a solid investment for contractors seeking dependable performance without excess weight or complexity.
