Bomag BW80AD-5 Roller

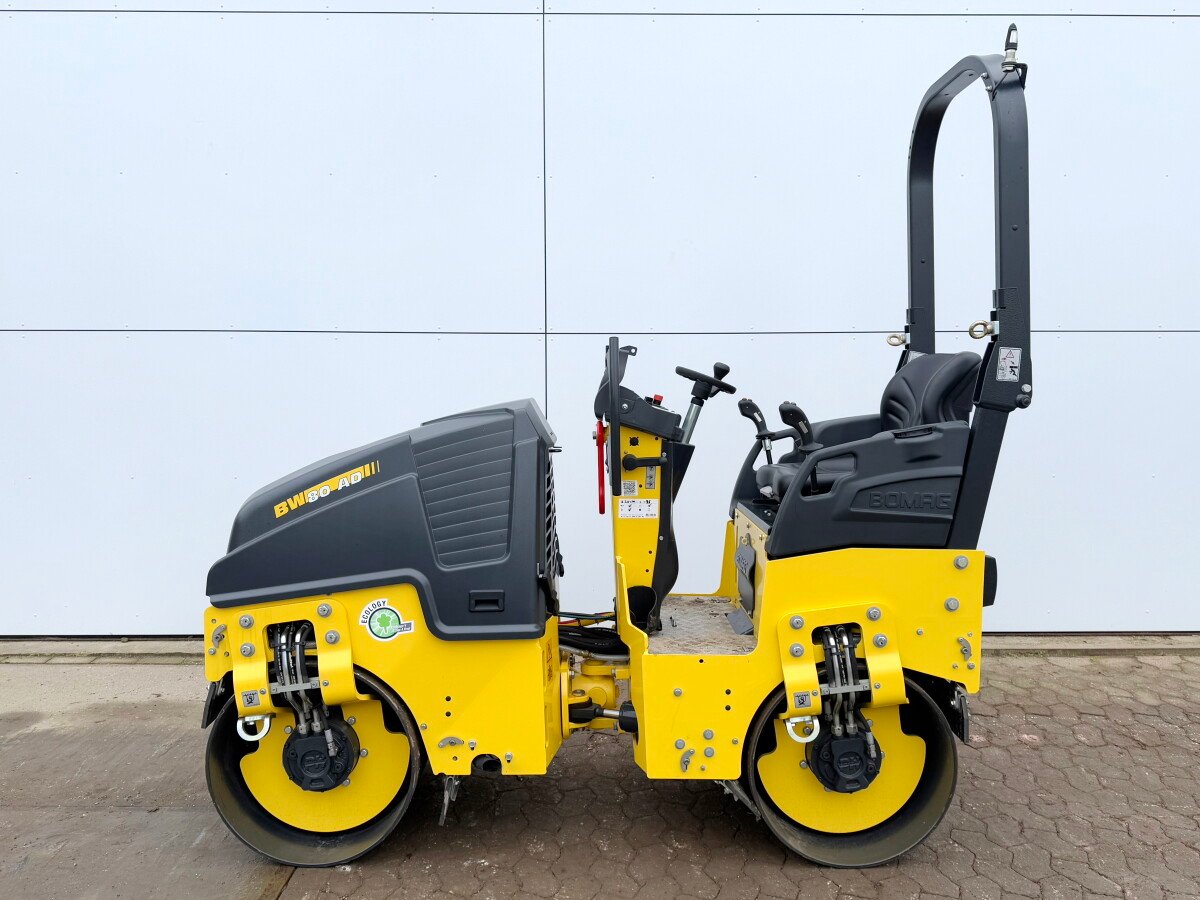

Bomag BW80 AD-5 Tandem Roller
Available through Ekin Traktors

The Bomag BW80 AD-5 is a compact, double drum tandem roller designed for precision compaction in small-scale asphalt and sub-base applications. Built with Bomag’s renowned engineering and reliability, this lightweight roller delivers exceptional performance for patching, pathway paving, trench work, and landscaping — all in a compact footprint that excels in tight spaces. Now available from Ekin Traktors, the BW80 AD-5 offers an ideal balance of size, control, and compaction efficiency.

Key Specifications

• Operating Weight: Approx. 1,550 – 1,650 Kg

• Drum Width (Front/Rear): 800 mm

• Drum Diameter: Approx. 575 mm

• Engine: Kubota D 902 (EU Stage V / EPA Tier 4 Final)

• Power Output: 16.8 kW (22.5 HP)

• Centrifugal Force: 17 / 26 kN (Low/High)

• Amplitude: 0.5 mm

• Vibration Frequency: 60 Hz

• Water Tank Capacity: Approx. 125 Liters

• Fuel Tank Capacity: Approx. 24 Liters

• Travel Speed: Up to 8 km/h

Engine & Drivetrain

Powered by the fuel-efficient Kubota D 902 diesel engine, the BW80 AD-5 delivers quiet and reliable operation while meeting strict emission standards. Its compact hydrostatic drive system ensures smooth acceleration and precise maneuvering on tight job sites.

• Fuel Type: Diesel

• Drive Type: Hydrostatic rear-wheel drive

• Cooling: Water-cooled system

• Emission Standard: EU Stage V / EPA Tier 4 Final compliant

Vibration & Compaction System

The BW80 AD-5 features dual steel drums with high-frequency vibration to ensure uniform and effective compaction in fewer passes. The low and high vibration modes allow the operator to match compaction force to material and layer thickness.

• Amplitude: 0.5 mm

• Centrifugal Force: 17 / 26 kN

• Frequency: 60 Hz

• Drum Configuration: Tandem vibratory (front and rear)

• Surface Finish: Smooth, ideal for thin layers and tight finishes

Water Spray System

A reliable, corrosion-free gravity-fed water system ensures both drums are consistently moistened, preventing material build-up and ensuring a clean, high-quality finish.

• Water Tank Capacity: 125 Liters

• Spray Nozzles: Front and rear with easy maintenance

• Optional: Pressurized spray system for intensive use

Compact Design & Maneuverability

The BW80 AD-5 is designed for confined work zones. With a short wheelbase, tight turning radius, and easy steering, it performs flawlessly on narrow paths, parking lots, and around curbs or obstacles.

• Turning Radius (Inner): Approx. 2.1 m

• Machine Width: 856 mm

• Length: Approx. 1,850 mm

• Height (ROPS): Approx. 2,200 mm

Operator Station & Controls

The operator platform is simple, ergonomic, and accessible from both sides. With intuitive controls, vibration-isolated footboards, and a foldable ROPS frame, the BW80 AD-5 promotes safety and comfort throughout the workday.

• Seat: Adjustable operator seat

• Controls: Easy-to-use levers with vibration control

• ROPS: Foldable frame for transport and overhead clearance

• Visibility: Excellent all-around view to drum edges

Service & Maintenance

Designed with simplicity in mind, all service points are easy to access, and maintenance is minimal. With long-life components and low operating costs, the BW80 AD-5 is ideal for rental fleets and daily users.

• Engine Oil Capacity: Approx. 3.3 Liters

• Hydraulic Oil Capacity: Approx. 22 Liters

• Service Interval Reminders: Integrated into dashboard display

• Maintenance Access: Tool-free access to filters and checkpoints

Use Cases

• Sidewalks and pedestrian zones

• Patching and repair work

• Residential and commercial driveways

• Landscaping and garden paths

• Utility trench and backfill compaction

• Cycle paths and sports courts

Final Thoughts

The Bomag BW80 AD-5 Tandem Roller, available from Ekin Traktors, is the ideal choice for contractors needing a compact yet powerful roller for precision asphalt and base compaction. With Bomag’s trusted durability, operator-friendly design, and class-leading compaction performance, the BW80 AD-5 is the perfect tool for urban infrastructure, landscaping, and small-scale paving projects.
