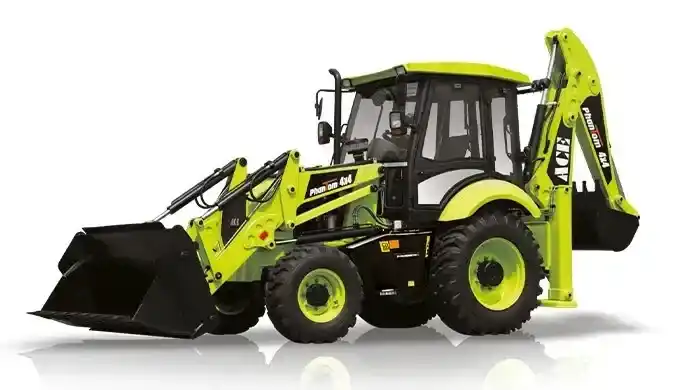

ACE Phantom 4WD N Backhoe Loader

The ACE Phantom 4WD N backhoe loader is engineered for high-performance and versatility across construction, excavation, and infrastructure projects. Powered by a robust turbocharged engine and supported by advanced hydraulics and reliable drivetrains, this machine is built to handle demanding workloads with ease. With higher lifting capacity, superior control, and a spacious operator cabin, it’s a powerful asset for your job site.

---

Key Specifications

• Gross Power: 96 HP

• Maximum Torque: 400 NM

• Backhoe Bucket Capacity: 0.3 Cum

• Loader Bucket Capacity: 1.1 Cum

• Hydraulic Oil Capacity: 90 Ltr

• Max. Operating Weight: 8040 Kg

• Max. Lift Capacity: 1900 Kg

• Dump Height: 2960 mm

• Reach at Full Height: 1220 mm

---

Engine

• Model: Kirloskar 4R1040TA

• Type: Turbocharged, Water-Cooled

• Emission Compliance: BS-III

• Power Output: 96 HP

• Torque: 400 NM

This turbocharged engine offers reliable performance with improved fuel efficiency, making it suitable for heavy-duty operations and extended shifts.

---

Loader Performance

• Dump Height: 2960 mm

• Load Over Height: 3350 mm

• Hinge Pin Height: 3630 mm

• Reach at Ground Level: 1770 mm

• Max Reach at Full Height: 1220 mm

• Rollback at Ground: 44°

• Dump Angle: 45°

• Standard Bucket Capacity: 1.1 Cum

With an increased lifting capacity of 1900 Kg, this loader is ideal for handling larger volumes of material efficiently.

---

Backhoe Functionality

• Backhoe Bucket: 0.3 Cum

• Maximum Lift Capacity: 1900 Kg

• Designed for excellent digging force and reach, ensuring productivity across trenching, loading, and utility work.

---

Hydraulic System

• Pump Flow: 118 L/min

• Hydraulic Oil Capacity: 90 Ltr

The ACE Phantom’s responsive hydraulic system ensures faster cycle times, precise control, and optimized power output during heavy operations.

---

Dimensions & Weight

• Max Operating Weight: 8040 Kg

• Ground Clearance: 350 mm

The robust structure and 4WD capability make this machine suitable for rough terrains and tight job site environments.

---

Service Capacities

• Engine Oil: 11.5 Ltr

• Fuel Tank: 150 Ltr

• Rear Axle: 3 Ltr

• Cooling: Water-cooled system

• Hydraulic System: 90 Ltr

---

Axle & Transmission

• Rear Axle: Rigid with CARRARO planetary drive

• Front Axle: Centrally pivoted drive and steer axle for maximum stability

---

Steering & Brakes

• Steering: Hydrostatic steering system for enhanced maneuverability

• Brakes (Service): Hydraulically actuated disc brakes

• Brakes (Parking): Mechanically actuated disc brakes

---

Tyres

• Front Tyre: 9.00 x 16 – 16 PR

• Rear Tyre: 16.90 – 28 – 12 PR

Heavy-duty tyres ensure better grip, stability, and long-term durability across all terrains.

---

Electrical System

• Battery: 12 V

---

Use Cases

The ACE Phantom 4WD N is ideal for:

• Road construction

• Rural infrastructure

• Material handling

• Utility trenching

• Urban development projects

---

Summary

Built for performance and endurance, the ACE Phantom 4WD N Backhoe Loader combines powerful engine output, enhanced hydraulics, and superior lift capacity to tackle even the most challenging tasks. Whether you’re lifting, digging, or loading, it delivers unmatched productivity with reliable Indian engineering.

Available now at Ekin Traktors. Reach out today for stock availability, demo requests, or competitive pricing.
