ACE AX-130

ACE AX-130 Backhoe Loader – Strength, Precision & Performance for Demanding Projects

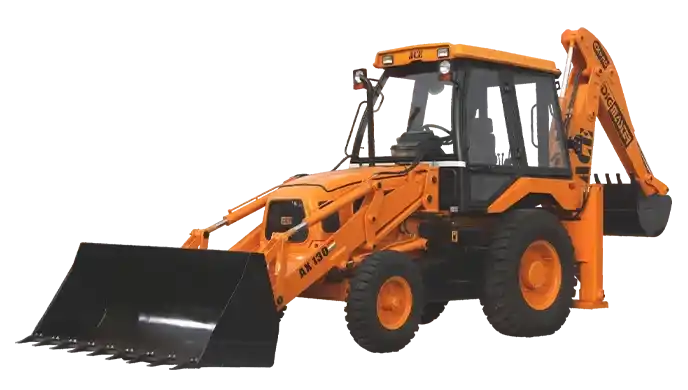

The ACE AX-130 Backhoe Loader is built to handle the toughest applications in construction, excavation, and infrastructure development. With a powerful Kirloskar turbocharged engine, rugged frame design, and high-capacity hydraulic system, the AX-130 is engineered for performance, durability, and ease of operation across a wide range of job site conditions.

Engine & Performance

At the heart of the ACE AX-130 is a robust Kirloskar 4R1040T turbocharged engine, delivering a solid 76 HP of gross power and 300 Nm of torque. Designed to meet BS-III emissions compliance, this engine ensures reliability while minimizing environmental impact. The turbocharged configuration enhances fuel combustion, resulting in consistent performance and efficient fuel usage under heavy workloads.

• Engine Make: Kirloskar 4R1040T

• Emission Standard: BS-III

• Gross Power Output: 76 HP

• Maximum Torque: 300 Nm

• Fuel Tank Capacity: 160 L

• Engine Oil Capacity: 11 L

Whether you’re operating in demanding terrains or running continuous shifts, the AX-130’s engine is designed for optimal performance and longer service intervals.

Hydraulic System – High Flow for High Productivity

The ACE AX-130 features a high-capacity hydraulic system designed to meet the rigorous demands of lifting, digging, and loading. Its 118 LPM pump flow ensures fast cycle times, while the 210 Bar relief pressure provides the power needed for deep excavation and heavy lifting.

• Pump Flow Rate: 118 LPM

• System Pressure: 210 Bar

• Hydraulic Oil Capacity: 135 L

This configuration delivers smooth, precise control over all backhoe and loader functions while maximizing the machine’s longevity under frequent use.

Loader – Designed for Heavy Lifting & Material Handling

The loader component of the AX-130 is optimized for strength, reach, and efficiency. It features a 1 m³ bucket and can lift up to 1,490 kg, ideal for bulk material movement, earthworks, and debris handling. Its geometry ensures maximum reach and efficient loading into trucks or containers.

• Bucket Capacity (Standard): 1 m³

• Max Lift Capacity: 1,490 kg

• Dump Height: 2,780 mm

• Load Over Height: 3,250 mm

• Reach at Ground: 1,950 mm

• Rollback at Ground: 40°

• Dump Angle: 42°

• Max Reach at Full Height (Bucket Dumped): 1,530 mm

These specifications make the loader ideal for construction, waste management, and infrastructure projects requiring consistent performance.

Backhoe – Deep Digging & Powerful Force

The ACE AX-130’s backhoe system is designed for performance in deep trenching and utility installations. It boasts a max digging depth of 4,700 mm and a bucket capacity of 0.24 m³, offering high precision and breakout force even in compact or rocky soil conditions.

• Max Dig Depth: 4,700 mm

• Max Working Height: 5,290 mm

• Max Load Over Height: 3,620 mm

• Reach at Full Height to Slew Center: 2,810 mm

• Backhoe Bucket Capacity: 0.24 m³

• Bucket Rotation: 185°

• Max Lift Capacity: 1,490 kg

These features ensure high productivity for deep excavation tasks, with enhanced control and range of motion.

Dimensions & Structural Build

The ACE AX-130 is structurally engineered to withstand high-impact operations while maintaining operator comfort and equipment balance. Its 7,500 kg operating weight provides exceptional stability on uneven terrain, with compact dimensions to suit urban and rural work zones.

• Operating Weight: 7,500 kg

• Width Over Bucket: 2,380 mm

• Track Width (Front): 1,840 mm

• Track Width (Rear): 1,720 mm

• Wheelbase: 2,220 mm

• Ground Clearance: 260 mm

• Height to Top of Cabin: 2,900 mm

These proportions ensure that the machine remains stable under load while being agile enough to navigate confined workspaces.

Drivetrain & Axle Configuration

The AX-130 features a rugged drivetrain built for performance and reliability. Its synchro-shuttle transmission with torque converter ensures smooth gear transitions under load, while its heavy-duty CARRARO rear axle provides power and durability.

• Transmission Type: Synchro-shuttle with torque converter

• Rear Axle: Rigid axle with CARRARO planetary drive

• Front Axle: Centrally pivoted drive & steer axle

This drivetrain setup ensures operational stability and efficient torque transfer, especially useful on gradients or uneven ground.

Steering & Control

The ACE AX-130 uses a hydrostatic steering system, designed for effortless control even during continuous operation. Braking is handled via hydraulically actuated disc brakes, while a mechanical parking brake ensures safe halts during downtime.

• Steering Type: Hydrostatic

• Service Brakes: Hydraulically actuated disc brakes

• Parking Brakes: Mechanically actuated disc brakes

These systems ensure safety, responsiveness, and low operator fatigue during long working hours.

Tyres & Terrain Adaptability

Heavy-duty tyres support the AX-130’s work across construction sites, mines, and agricultural land. The 9.00 x 16 (16 PR) front tyres and 16.90 – 28 (12 PR) rear tyres provide ample ground contact and durability.

• Front Tyres: 9.00 x 16 – 16 PR

• Rear Tyres: 16.90 – 28 – 12 PR

This setup ensures traction and load-bearing capacity across challenging terrains.

Electrical System

The ACE AX-130 is powered by a reliable 12 V battery system, supporting all major electrical functions and ensuring dependable starts, even in harsh weather conditions.

• Battery: 12 V

Applications

The ACE AX-130 Backhoe Loader is ideal for:

• Civil construction, trenching, and foundation work

• Road building and material loading

• Municipal and utility infrastructure maintenance

• Agricultural land clearing and irrigation trenching

• Industrial site cleanup and waste handling

This machine is a versatile performer in any sector requiring strength, reach, and reliability.

Why Choose the ACE AX-130 from Ekin Traktors?

At Ekin Traktors, we specialize in supplying high-performance machinery to contractors, builders, and government agencies. When you choose the ACE AX-130, you benefit from:

• Full support with genuine ACE parts and technical assistance

• Export-ready documentation and shipping for overseas clients

• Maintenance programs tailored for fleet operators

• Expert consultation to match your site needs with the right machine

• Solutions for bulk orders and contractor partnerships

We ensure the ACE AX-130 delivers long-term value, reliability, and performance—backed by expert support every step of the way.
