ACE AX-124 NS

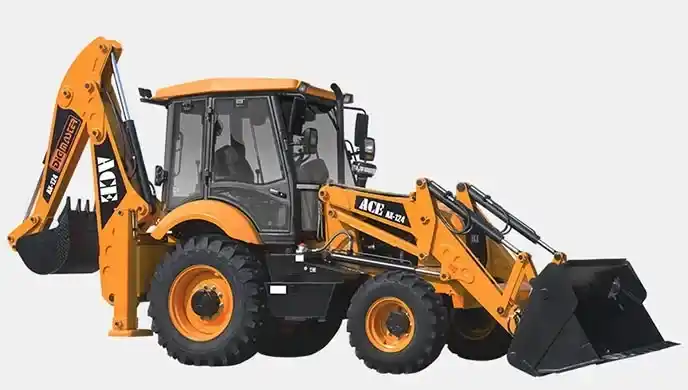

ACE AX-124 NS Backhoe Loader – Precision Built for Tough Jobs

The ACE AX-124 NS is a versatile backhoe loader engineered for high-efficiency operations across a wide range of applications—from infrastructure projects and urban site development to agriculture and general construction. It offers the perfect balance of power, hydraulic finesse, and smart engineering, making it a go-to choice for operators who demand reliability with lower operating costs.

---

Engine & Performance

At the heart of the AX-124 NS lies a robust KIRLOSKAR BS-III engine, delivering a solid 74 HP of gross power with 400 Nm of torque—more than enough for high-resistance digging and rapid loading cycles. Despite being a non-turbo variant, this naturally aspirated engine meets CEV BS-IV compliance, combining environmental responsibility with mechanical dependability.

• Engine Make: Kirloskar

• Emission Standard: CEV BS-IV

• Gross Power Output: 74 HP

• Max Torque: 400 Nm

• Fuel Tank Capacity: 150 L

• Engine Oil Capacity: 11 L

This model is ideal for regions where emission laws are transitioning, offering flexibility for both domestic use and cross-border sales.

---

Hydraulic System – Precision in Every Movement

The AX-124 NS features a closed-center hydraulic system with a pump flow of 118 liters per minute and system relief pressure of 210 bar. This setup ensures excellent cycle time performance across loader and backhoe operations, even under continuous workload.

• Pump Flow Rate: 118 LPM

• System Pressure: 210 Bar

• Hydraulic Oil Capacity: 80 L

The hydraulic responsiveness allows operators to handle heavy materials and deep digs with minimal operator fatigue and high fuel efficiency.

---

Loader Unit – High-Capacity Front-End Power

Designed to optimize payload and breakout force, the loader arm can handle up to 1,900 kg of payload with a 1.0 m³ bucket. Its geometry ensures optimal dump clearance and reach, especially in confined job sites.

• Standard Bucket Capacity: 1.0 m³

• Max Payload: 1,900 kg

• Dump Height: 890 mm

• Load Over Height: 3,300 mm

• Dump Angle: 45°

• Max Reach at Full Height (Bucket Dumped): 1,220 mm

Despite the relatively lower dump height, the setup is optimized for soil, gravel, and light construction aggregates—ideal for tight dump cycles.

---

Backhoe Arm – Deeper Reach, Better Swing Control

With a dig depth of 4,250 mm and a bucket rotation of 185°, the backhoe arm is capable of detailed trenching, pit excavation, and cable duct installations. The rotation angle helps maintain bucket fill factor and reduces material spillage.

• Dig Depth: 4,250 mm

• Working Height (Max): 5,470 mm

• Backhoe Bucket Capacity: 0.24 m³

• Max Lift Capacity (Rear Arm): 1,900 kg

• Bucket Rotation: 185°

This makes the AX-124 NS especially effective in infrastructure and pipeline projects where controlled digging is critical.

---

Chassis, Frame & Build Quality

Built on a reinforced steel frame and a rigid rear axle with CARRARO planetary drive, the AX-124 NS is designed for long-term use in harsh site conditions. The front axle is drive & steer enabled, and centrally pivoted for navigating uneven terrain with confidence.

• Rear Axle: Rigid CARRARO planetary

• Front Axle: Drive & Steer (centrally pivoted)

• Wheelbase: 2,220 mm

• Minimum Ground Clearance: 300 mm

• Operating Weight: 7,500 kg

Its slightly lighter weight compared to standard loaders gives it better fuel efficiency while maintaining structural stability.

---

Steering & Control

With hydrostatic steering, the AX-124 NS ensures tight turning radii and smooth directional control. Combined with its twin-pedal brake setup, it provides excellent control in narrow construction sites and urban areas.

• Steering Type: Hydrostatic

• Brakes (Service): Hydraulic wet disc brakes

• Brakes (Parking): Mechanically actuated disc brakes

---

Tyres & Ground Adaptability

The ACE AX-124 NS is factory-fitted with durable industrial tyres:

• Front Tyres: 9.00 – 16 (16 PR)

• Rear Tyres: 16.90 – 28 (12 PR)

This configuration ensures reliable traction and stability during loader or backhoe work, even on rough and loose surfaces.

---

Dimensions for Transport & Job Site Access

The machine’s frame size, bucket width, and ground clearance make it easily transportable and agile in congested job zones.

• Width Over Bucket: 2,380 mm

• Track Width Rear: 1,600 mm

• Track Width Front: 1,840 mm

• Transport Length: Approx. 6,000 mm (not officially listed but standard range)

---

Electrical & Other Features

• Battery: 12 V system

• Lighting & Controls: Compatible with work site illumination kits and CAN-based optional telemetry systems for larger fleets.

---

Applications

The ACE AX-124 NS is suitable for:

• General civil construction

• Agricultural land clearing

• Foundation trenching

• Pipe laying and road repair

• Government and municipal works

• Rental fleets (due to high ROI and low maintenance cost)

---

Why Choose the ACE AX-124 NS from Ekin Traktors

At Ekin Traktors, we source genuine ACE backhoe loaders and provide full end-to-end support including:

• Export-ready documentation for Africa, Asia, and Eastern Europe

• Inspection & Testing Support before dispatch

• Aftermarket parts availability and logistics support

• Professional consultation on site needs, attachments, and brand comparisons

• Bulk order fulfillment for contractors and procurement agencies

---

Final Thought

The ACE AX-124 NS is not just a backhoe loader—it’s a high-return workhorse built for demanding businesses. With its dependable powertrain, efficient hydraulics, and operator-friendly controls, it remains one of the best options in the mid-range segment.
