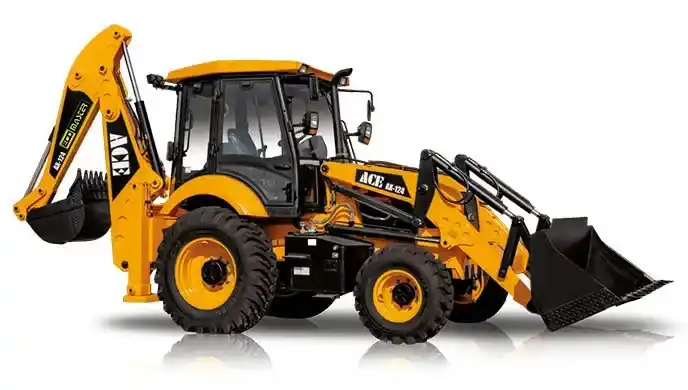

ACE AX 124 Eco-master Backhoe Loader

Built for high-efficiency performance in compact to mid-size job sites, the ACE AX 124 Eco-master backhoe loader delivers reliable digging, lifting, and loading capabilities. With a fuel-efficient 49.5 HP engine, optimized breakout forces, and a rugged hydraulic system, this machine is tailored for applications ranging from municipal work and rural construction to farm utility and light infrastructure support.

Its robust chassis, intelligent control system, and superior ground reach allow operators to handle tough terrain and variable load conditions with precision and control — all while maintaining low maintenance costs.

---

Key Specifications

• Max. Lift Capacity: 1800 Kg

• Loader Bucket Capacity: 1.1 Cum

• Backhoe Bucket Capacity: 0.24 Cum

• Max. Reach at Full Height: 1220 mm

• Hydraulic Oil Capacity: 80 Ltr

• Max Operating Weight: 7910 Kg

---

Engine

• Model: ACE-A50 Ht

• Emission Compliance: BS-III

• Air Intake: Water-cooled system for thermal stability

• Gross Power Output: 49.5 HP @ optimal fuel efficiency

• Maximum Torque: 245 NM for smooth torque delivery under load

The ACE-A50 engine is optimized for consistent torque at low RPM, allowing operators to tackle dense material or steep inclines without over-revving or stalling — a critical factor in trenching and backfilling operations.

---

Loader General Dimensions & Performance

• Dump Height: 2760 mm

• Load Over Height: 3340 mm

• Hinge Pin Height: 3630 mm

• Reach at Ground: 1770 mm

• Rollback at Ground: 44°

• Dump Angle: 45°

• Bucket Capacity (Standard): 1.1 Cum

• Loader Arm Breakout Force: 4950 Kgf

The front loader system is designed for rapid cycle times and maximum breakout force, making it suitable for gravel loading, compost transfers, or clearing construction debris with minimal operator fatigue.

---

Backhoe Dimensions & Performance

• Maximum Digging Depth: 4250 mm

• Max Working Height: 5470 mm

• Reach at Full Height (Slew Center): 2780 mm

• Reach Ground Level to Rear Wheel Center: 6730 mm

• Max Load Over Height: 3790 mm

• Bucket Rotation: 175°

• Dipper Tear-Out Force: 3010 Kgf

• Backhoe Bucket Capacity: 0.24 Cum

The backhoe’s extended digging depth and excellent slew rotation make it ideal for small to medium-scale trenching, septic installations, cable laying, or irrigation projects — all with precise control.

---

Overall Dimensions & Weight

• Operating Weight: 7910 Kg

• Width Over Bucket: 2500 mm

• Track Width (Front / Rear): 1840 mm / 1550 mm

• Wheelbase: 2180 mm

• Ground Clearance: 350 mm

• Height to Top of Cabin: 2900 mm

Its low center of gravity, wide stance, and optimized wheelbase improve stability and handling during loader operations or when working on uneven surfaces.

---

Hydraulic System

• Pump Flow: 99 LPM

• System Capacity: 80 Ltr

A balanced hydraulic circuit ensures strong, simultaneous multi-functioning — allowing the operator to dig, lift, and maneuver without power loss, even during back-to-back operations.

---

Service Capacities

• Engine Oil: 12 Ltr

• Rear Axle Oil: 3 Ltr

• Fuel Tank: 150 Ltr

• Hydraulic System Oil: 80 Ltr

The large fuel tank capacity allows for long hours of operation without frequent refueling — ideal for off-grid or rural job sites.

---

Axle & Steering

• Rear Axle: Rigid axle with CARRARO planetary drive for durability

• Front Axle: Drive & steer axle with central pivot for tight turning radius

• Steering System: Hydrostatic steering for effortless, precise control

This configuration supports responsive handling, especially on congested or narrow construction zones, while maintaining traction under load.

---

Braking System

• Service Brakes: Hydraulically actuated disc brakes for smooth stopping

• Parking Brakes: Mechanically actuated disc brakes for firm lockout on slopes

ACE ensures optimal braking control, with wet-disc technology reducing wear and supporting safer operations in all weather conditions.

---

Tyres

• Front: 9.00 x 16 – 16 PR

• Rear: 16.90 x 28 – 12 PR

Heavy-duty radial options are designed to minimize wear and maximize traction across soft soil, loose gravel, or urban roadways.

---

Electrical System

• Battery Voltage: 12 V

A dependable starting system paired with a 12V setup ensures consistent cold starts and supports optional work lights or sensors.

---

Use Cases

• Utility Projects: Reliable performance for water, sewer, and electrical trenching

• Agricultural Use: Manure management, farm loading, field ditching

• Road Maintenance: Clearing debris, shoulder maintenance, and filling

• Rental Fleets: Ideal for short-term contractors and rural development jobs

• Real Estate / Site Prep: Affordable and fuel-efficient for low-cost building sites

---

Final Thoughts
The ACE AX 124 Eco-master is a practical choice for operators seeking a strong return on investment without sacrificing versatility. It offers efficient power, essential breakout forces, and solid build quality, all in a manageable size and weight class. Whether you’re outfitting a rural site team or expanding your municipal fleet, this model stands out as a dependable, cost-effective workhorse.

Available now through Ekin Traktors — inquire today for quotes, stock updates, or location-based delivery.
