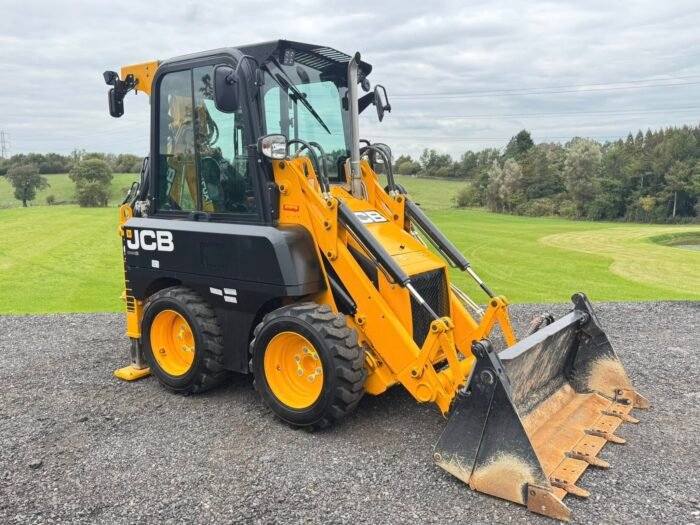

2025 JCB 1CX PLUS Backhoe Loader

Here are the specs for the 2025 JCB 1CX PLUS Backhoe Loader:
# Engine and Performance
– *Horsepower*: 47 HP (50 HP gross)
– *Engine Model*: 404C-22
– *Displacement*: 134.3 cu in
– *Torque*: 104 lb-ft

# Dimensions and Operating Specifications
– *Working Width*: 5.12 ft (wheels), 56.3 in (bucket)
– *Dig Depth*: 8.37 ft
– *Load Height*: 11.29 ft (std)
– *Operating Weight*: 6,150 lbs (4wd)
– *Ground Clearance*: 0.6 ft

# Loader and Backhoe Capabilities
– *Loader Lift Capacity*: 1,345 lbs
– *Bucket Capacity*: 0.3 yd3
– *Bucket Breakout Force*: 5,179 lbs
– *Backhoe Dig Depth*: 8.37 ft

# Transmission and Hydraulics
– *Transmission Type*: Hydrostatic
– *Max Speed*: 7 mph (forward and reverse)
– *Pump Flow Capacity*: 12.4 gal/min
– *Relief Valve Pressure*: 3,000 psi

This compact backhoe loader is perfect for small construction sites, landscaping, and excavation work.
