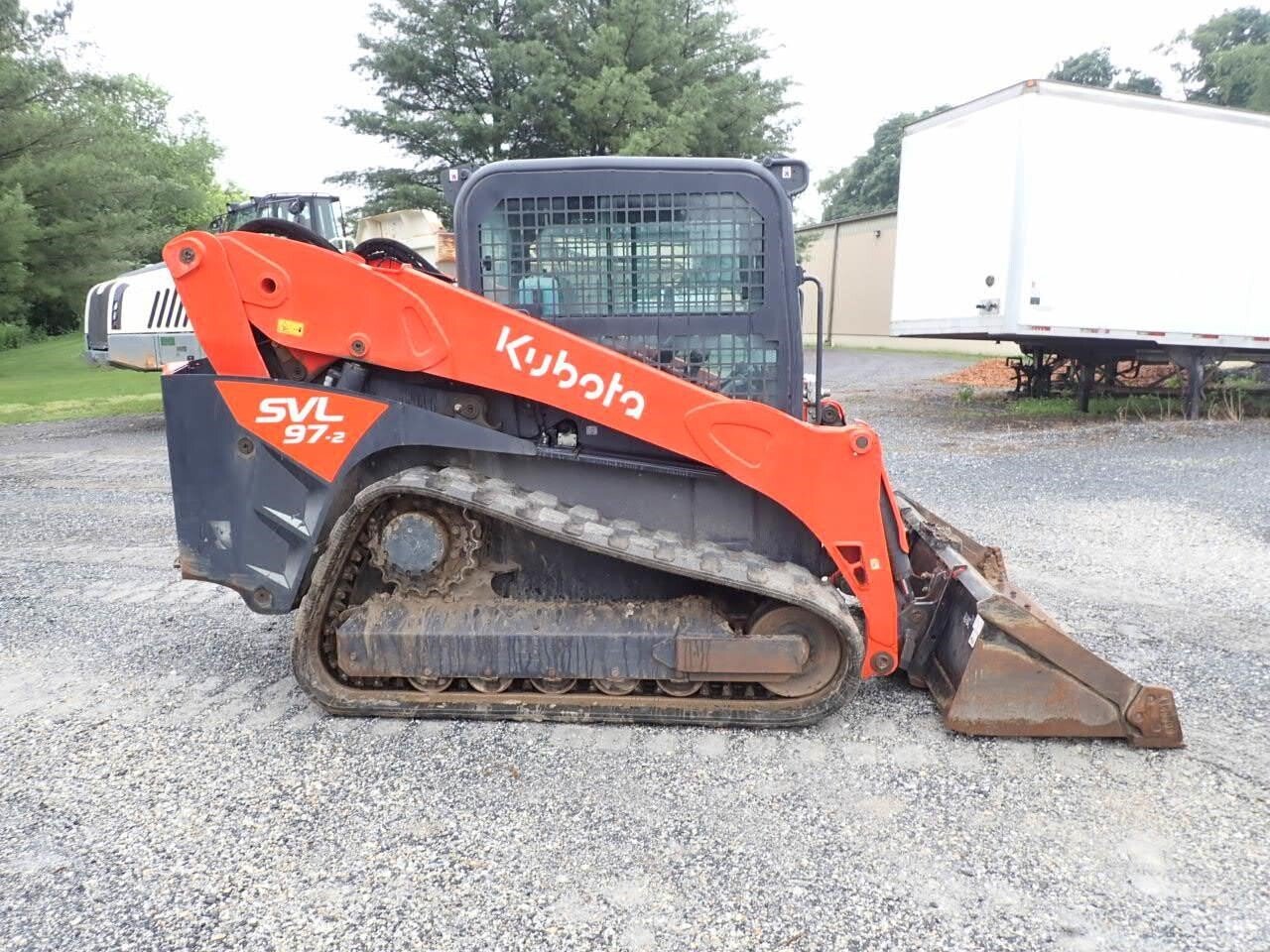

2023 Kubota SVL97-2 Skid Steer Loader

The 2023 Kubota SVL97-2 Skid Steer Loader is a powerhouse with impressive specs. Here are the details:

# Engine
– *Type*: Kubota V3800-TIEF4, 4-cylinder diesel engine
– *Power*: 96.4 HP (71.9 kW)
– *Displacement*: 230 cu in (3769 cc)

# Performance
– *Operating Weight*: 11,277 lbs (5115 kg)
– *Rated Operating Capacity*: 3,200 lbs (1451 kg)
– *Tipping Load*: 9,143 lbs (4147 kg)
– *Bucket Breakout Force*: 7,623 lbs (3458 kg)
– *Lift Arm Breakout Force*: 5,530 lbs (2509 kg)

# Dimensions
– *Length*: 154.6 in (3929 mm)
– *Width*: 77.2 in (1962 mm)
– *Height*: 83.3 in (2116 mm)
– *Ground Clearance*: 11.5 in (293 mm)

# Hydraulics
– *Auxiliary Hydraulic Pressure*: 3,553 psi (249.8 bar)
– *Auxiliary Hydraulics Flow Rate*: 23.1 gpm (87.6 L/min) / 40.0 gpm (152 L/min)

# Other Features
– *Travel Speed*: 5 mph (8.0 kph) low, 7.3 mph (11.7 kph) high
– *Traction Force*: 12,178 lbs (5524 kgf)
– *Operator Station*: Open cab / closed cab with AC and heat
– *Quick Coupler*: Optional hydraulic quick coupler available¹ ² ³
